Mounting Accessories

Filler & Spacer Plates Angle Brackets

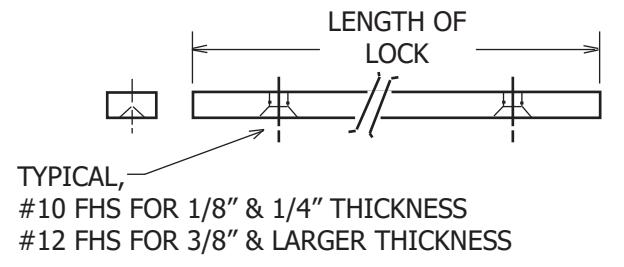

4000 Series Filler Plates

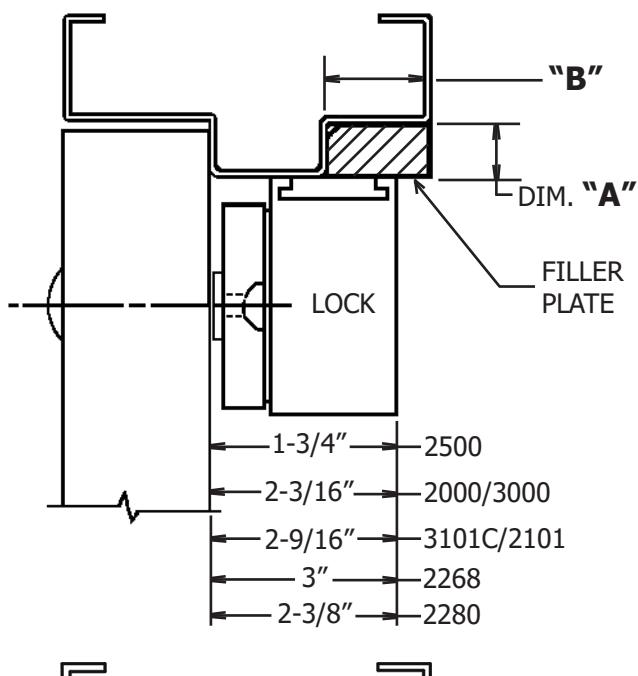

Filler plates facilitate the mounting of electromagnetic locks by extending the width of the door stop to provide an adequate mounting surface. Where required, select a Filler Plate equal in thickness to the height of the door stop (i.e. Dim. "A").

4000 Series Spacer Plates

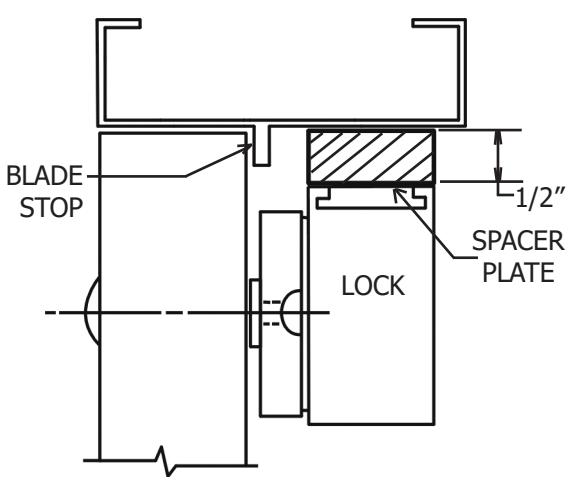

Spacer plates facilitate the mounting of electromagnetic locks by lowering the entire assembly 1/2", to clear a blade stop. All plates are pre-drilled for the corresponding lock series.

COMES WITH CORRESPONDING MOUNTING HARDWARE. HOUSING SCREWS MOUNT THROUGH SPACER PLATE INTO FRAME.

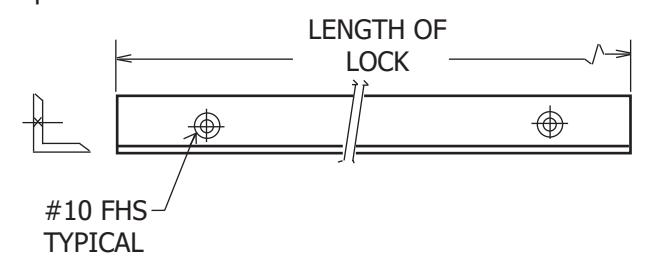

4000 Series Angle Brackets

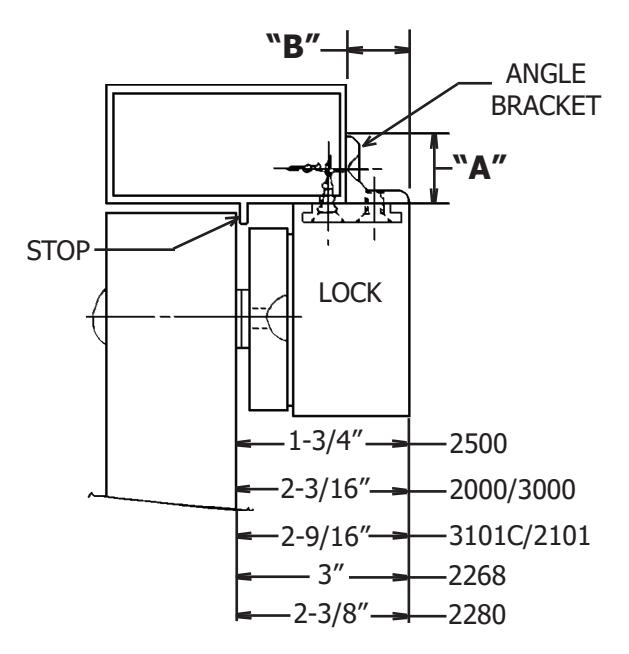

Angle Brackets facilitate the mounting of electromagnetic locks by extending the frame header area to provide an adequate mounting surface. Where required, select an Angle Bracket appropriate to accommodate the mounting footprint of the lock.
