4000 Series – Cut Seet

Open the original PDF document

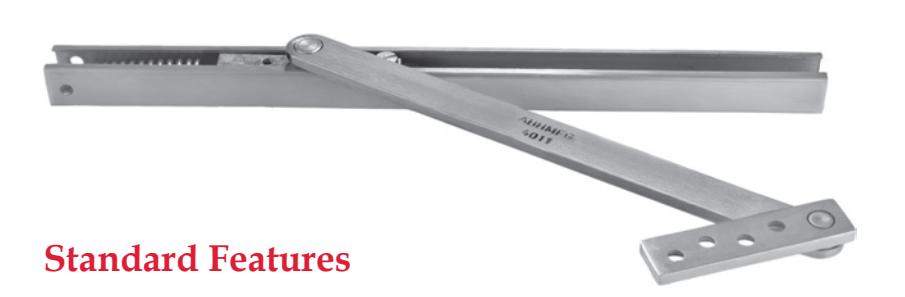

Overhead Holders & Stops

Concealed mount
Medium duty
Stop, hold-open and friction functions available
Single or double acting doors
Non-handed
weight doors
Standard installation from 85° to 110° of opening (5° increments)
Shock absorbing spring provides 3° to 5° cushion before dead-stop
1-⅜" minimum door thickness
UL Listed as Miscellaneous Fire Door Accessories for use on rated up to 3 hours (stop function only)
Average weight per unit = 2 lbs.

Door Frame Opening		Model Number
Hinges, Swing Clear or Offset Pivots	Center Hung	Hold Open	Stop	Friction
* 18" - 23-	-	4011	4021	4031
24" - 29-	-	4012	4022	4032
30" - 35-	32" - 37-	4013	4023	4033
36" - 48"	38" - 48"	4014	4024	4034
ANSI Code		C04511	C04541	C04531

^* Butt Hinges only for this size

(see page B-5 for details)

• SEC Security fasteners
• LL For lead-lined door applications
• N All stainless steel (non-ferrous) components for wet environments to prevent corrosion
• T Threaded pivot screw and nylon washer to replace jamb bracket
HC Hold Closed
• SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom application and/or unit may be required.
If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

• Stainless steel is the standard base material for arm, channel
