PREMIUM PUSH PLATES FOR KNOWING ACT APPLICATIONS

PRODUCT FAMILY – PBS SERIES

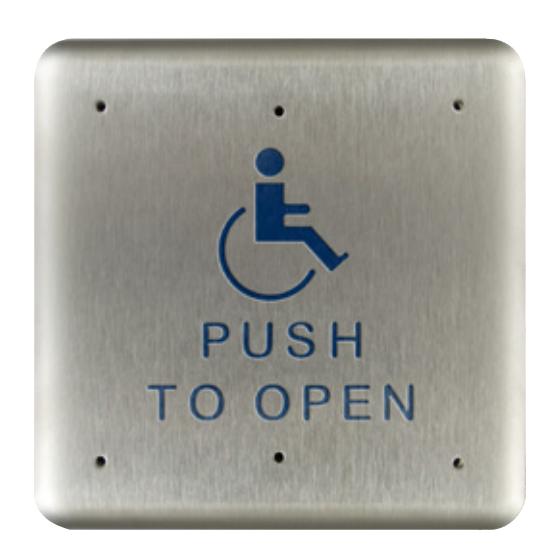

10PBS1 Push To Open Text and Logo

10PBS Push To Open Text Only

10PBS10 Plain Stainless Steel Face Plate

10PBSLL Large Handicap Logo Only

10PBSE Push To Exit Text Only

10PBS1B Blue Finish Text and Logo

10PBS1SB Satin Brass Finish Text and Logo

10PBS1BB Mirror Brass Finish Text and Logo

4¾" PUSH PLATES PREMIUM PUSH PLATES

PBS SERIES

The PBS Series is a standard 4¾" square push plate with a highly durable design and embossed graphics. The PBS Series push plate is a stainless steel, aesthetically pleasing and weather resistant actuator.

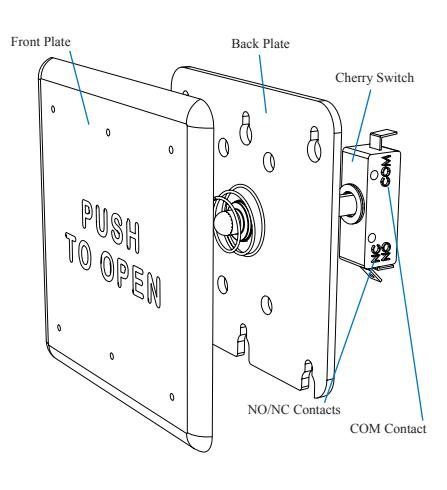

COMPONENTS VIEW

FEATURES

• The push plate surface area is optimal for bollard and wall mount applications while not detracting from the surrounding architecture
• Beveled edges provide a tamper / vandal resistant solution
• Activation across the entire surface area of the push plate
• Stainless steel finish is resistant to scratches & scuffing as well as rust
• Text and logo are abrasive etched onto the surface for maximum durability
• Available in multiple styles to meet specifications and customer requests
• A standard weather boot protects the cherry switch from harsh environments

West: 800-544-4422 • East: 800-225-6737

LOW ENERGY

BENEFITS

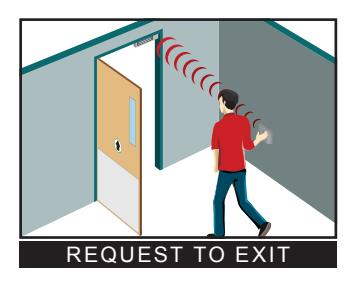

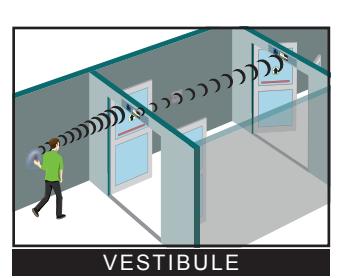

APPLICATIONS

• Grade 304 stainless steel maximizes corrosion resistance and reduces rusting
• Stainless steel materials are 100% recyclable and environmentally friendly
• Available in hard wired and wireless options (RF 433, 390 or 300 MHz)

MOUNTING ACCESSORIES

Surface Mount

4¾ inch Weather Ring

10BOXDG4H 4 × 4 inch Surface Mount

10PBBRACKET Surface Mount Kit

10PBBRACKETCA Clear Anodized Surface Mount

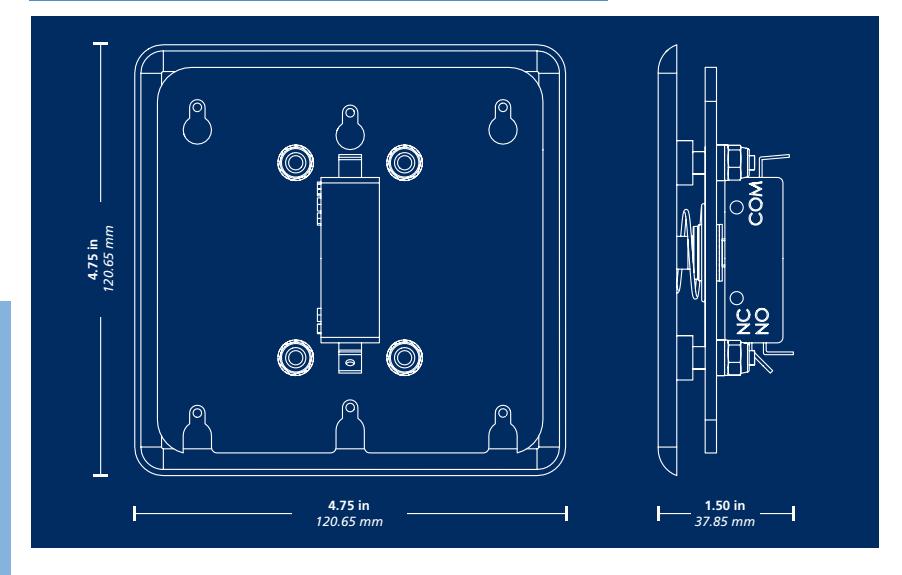

DIMENSION DETAILS

BACK SIDE

TECHNICAL SPECIFICATIONS

Materials	Faceplate: 16 gauge, 304 2B Stainless Steel Backplate: 1/8 inch thick, Aluminum
	Mounting Screws: Stainless Steel, 6-32 × 1 in & 8-32 × 1 in Allen Head Size: 5/64
Cherry Switch	Single-pole, 15 A, COM / NO/ NC
Compatible Wireless Frequencies	433, 390 or 300 MHz

Specifications are subject to change without prior notice.
