BENEFITS

• Grade 304 stainless steel maximizes corrosion resistance and prevents rusting
• Stainless steel materials are 100% recyclable and environmentally friendly
• Options include hard wired and wireless mounting
• Compatible wireless frequencies include 433, 390 or 300 MHz

MOUNTING ACCESSORIES

Surface Mount

Stainless Steel Surface Mount Flush Mount

10WRRND45 4.5 inch Weather Ring

10BRINGC Universal Back Plate

10BOXDG4H 4 x 4 inch Surface Mount

DIMENSION DETAILS

BACK SIDE

TECHNICAL SPECIFICATIONS

Materials	Faceplate: 16 gauge, 304 2B Stainless Steel Backplate: 1/8 inch thick, Aluminum
	Mounting Screws: Stainless Steel, 6-32 × 1 in & 8-32 × 1 in Allen Head Size: 5/64
Cherry Switch	Single-pole, 15 A, COM / NO/ NC
Compatible Wireless Frequencies	433, 390 and 300 MHz

Specifications are subject to change without prior notice.

DISCLAIMER This document as well as all other enclosed documents (quotation / specification / other) are provided "as is" without warranties of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. / Information is supplied upon the condition that the persons receiving it will make their own determination as to its suitability for their purposes prior to use. In no event will IDC be responsible for damages of any nature whatsoever resulting from the use of or reliance upon information from this document or the products to which the information refers. / IDC has the right without liability to change descriptions and specifications at any time. / Prices, shipping and availability are subject to change without prior notice.

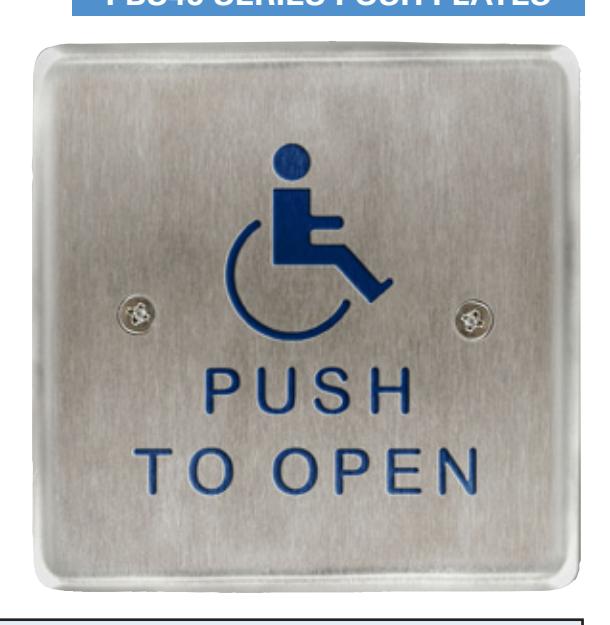

4½" SQUARE STAINLESS STEEL • EASY INSTALLATION PBS45 SERIES PUSH PLATES

This square push plate is the perfect solution for fast and easy installation. Screws on the front plate allow for quick removal while still remaining functional, aesthetically appealing and weather resistant.

• Faceplate screws allow for easy installation
• Highly visible, unobtrusive and aesthetically pleasing design
• Beveled edges provide resistance to tampering and vandalism
• Graphics are etched onto the faceplate for maximum durability
• Stainless steel components will not deteriorate or rust
• Available in multiple styles to meet specifications or customer requests

TECHNICAL SPECS

• A. 16 gauge, 304 2B Stainless Steel Faceplate
• B. 1/8 in thick, Stainless Steel Backplate
• C. Stainless Steel 6 32 x 1 in and 8 32 x 1 in Allen head mounting screws
• D. Cherry Switch: Single-pole, 15A, COM / NO / NC contacts
