PRODUCT DESCRIPTION

The 59 Series push plate switches are designed to provide reliable activation of any automatic door.

The 59 Series features 4" square face plates in either stainless steel or blue powder coated alumi- num with etched and paint filled legends. A 4 1/2" square formed stainless steel back plate elimi- nates possible wall damage from standard use.

Designed as a universal switch, the 59 Series fit single-gang or 2-gang electrical boxes with no adapters necessary. A surface mount box is also available.

Each unit is built utilizing heavy gauge stainless steel, aircraft quality rivets and screws, durable finishes and the most reliable microswitch in the industry.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/BHMA A156.10 & A156.19.

TECHNICAL DATA

• 4" x 4" All Active Face Plate
• 4 1/2" x 4 1/2" FormedStainless Steel Back Plate
• UL Listed "Cherry Switch", SPDT, Mom., 15 Amp @ 125V AC

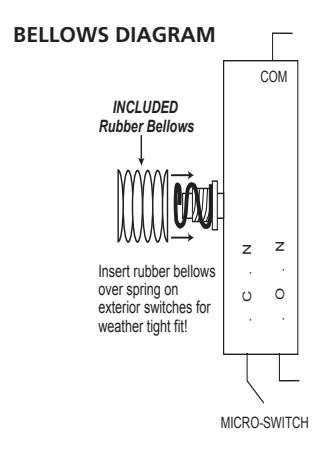

• Rubber "Bellows" IncreasesWeather Protection (included)
• Fits single or 2-gang ElectricalBox or MS SEDCO SurfaceMount BoxRubber "Bellows" IncreasesWeather Protection (included)
• Special Finishes: US3, US4, US10, US10B, US32
• Radio Control VersionsAvailable

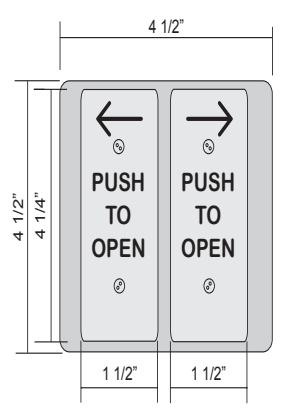

4 1/2" Square

PUSH PLATE SWITCHES

#59-H (Blue Powder Coat with White Paint Filled Legend)

#59-P (Stainless Steel with Black Paint Filled Legend)

#59-HSS (Stainless Steel with Blue Paint Filled Legend)

#59-W (Blue Powder Coat with White Paint Filled Legend)

#59-WSS (Stainless Steel with Blue Paint Filled Legend)

NOT SHOWN

#59-Plain (Stainless Steel with No Legend)

International Door Closers, Inc.
