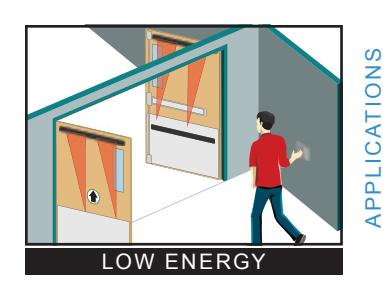

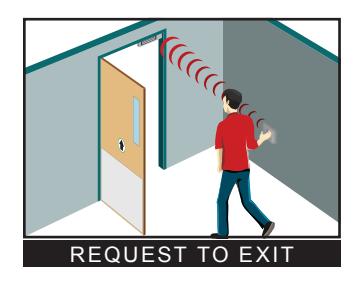

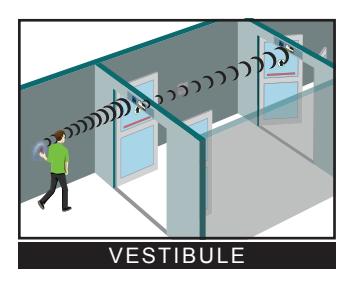

PREMIUM PUSH PLATES FOR KNOWING ACT APPLICATIONS

PBR45 SERIES

10PBR45 Push To Open Text Only

10PBR45LL Handicap Logo Only

10PBR451 Push To Open Text and Logo

10PBR4510PTS Push To Slow Text and Logo

10PBR4510 Plain Face No Graphic

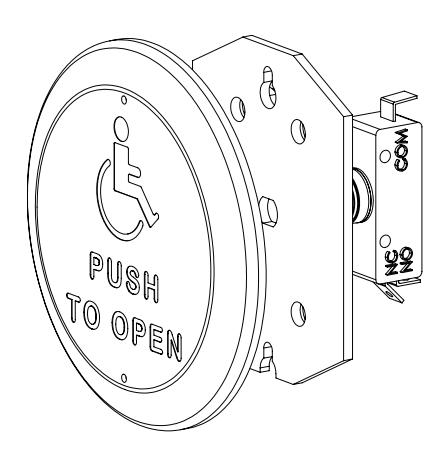

COMPONENTS VIEW

4½" PUSH PLATES

PBR45 SERIES

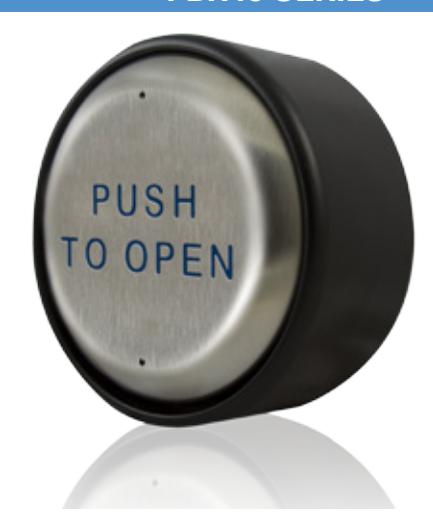

10PBR45 shown with optional surface mount box (All mounting options are sold separately)

The PBR45 series is a smaller solution to the standard 6 inch PBR series push plate. This 4½ inch design features the same functionality with a more aesthetically pleasing size.

FEATURES

• Smaller, refined design makes an ideal application for many knowing act applications
• Beveled edges are less susceptible to damage by deflecting harsh impacts from any side
• Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust from exposure to liquids and other cleaning agents
• Graphics are etched onto the faceplate for maximum durability
• Available in various styles to fit almost any application, hard wired or wireless

BENEFITS

• Grade 304 stainless steel maximizes corrosion resistance and prevents rusting
• Stainless steel materials are 100% recyclable and environmentally friendly
• Options include hard wired and wireless mounting
• Compatible wireless frequencies include 433, 390 or 300 MHz

MOUNTING ACCESSORIES

Surface Mount

Stainless Steel Surface Mount Flush Mount

10WRRND45 4.5 inch Weather Ring

10BRINGC Universal Back Plate

10BOXDG4H 4 x 4 inch Surface Mount

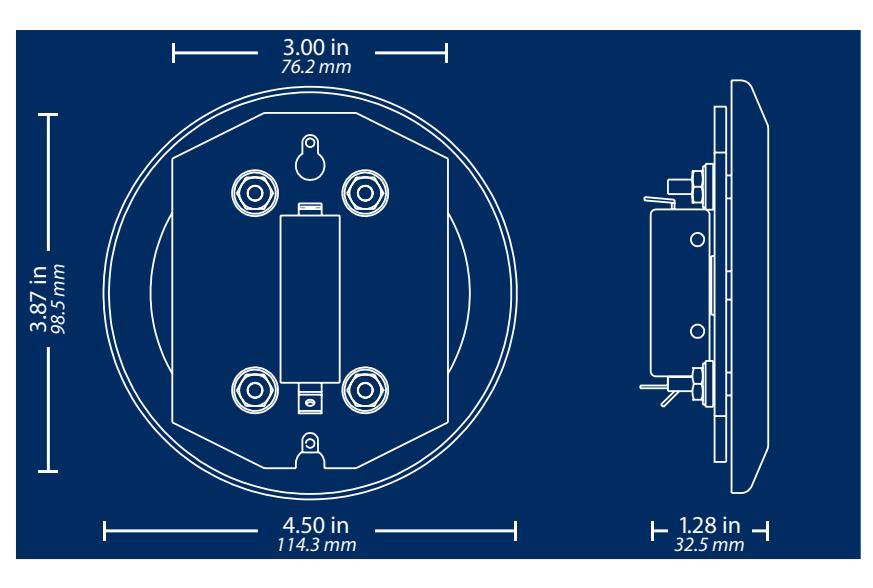

DIMENSION DETAILS

BACK SIDE

TECHNICAL SPECIFICATIONS

Materials	Faceplate: 16 gauge, 304 2B Stainless Steel Backplate: 1/8 inch thick, Aluminum
	Mounting Screws: Stainless Steel, 6-32 × 1 in & 8-32 × 1 in Allen Head Size: 5/64
Cherry Switch	Single-pole, 15 A, COM / NO/ NC
Compatible Wireless Frequencies	433, 390 and 300 MHz

Specifications are subject to change without prior notice.
