4-1-2in 5-KNU (ETW10, ETW12, ETW6-2228, ETW2-18, ETW6-1828 & ETW8-1228) t-ct00063-rev1

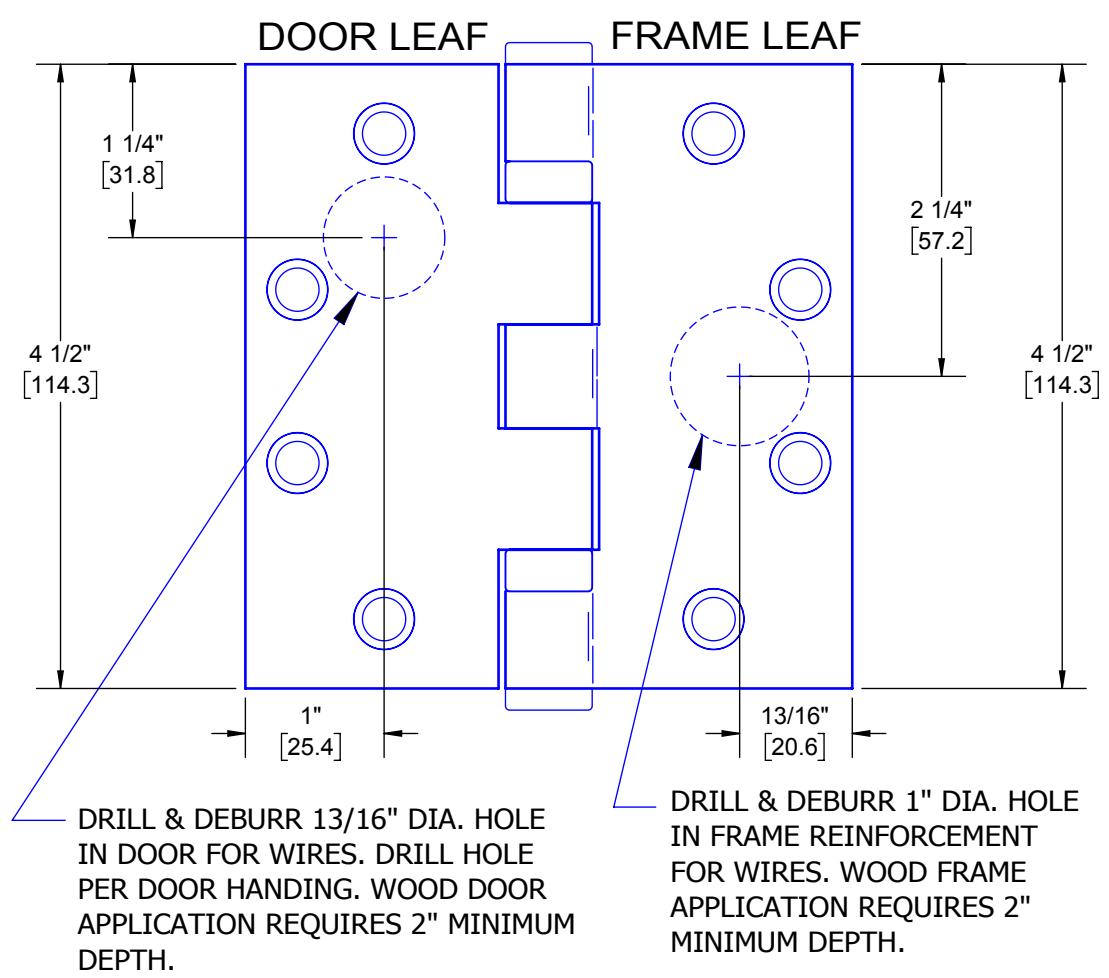

4-1/2" 5 KNUCKLE HINGE TEMPLATE

MODELS ETW10, ETW12, ETW6-2228, ETW2-18, ETW6-1828 & ETW8-1828 CONCEALED ELECTRIC THROUGH WIRE HINGE

FOR USE ON ALL HAGER 4.5" FULL MORTISE 5 KNUCKLE BALL BEARING HINGES STANDARD AND HEAVY WEIGHT

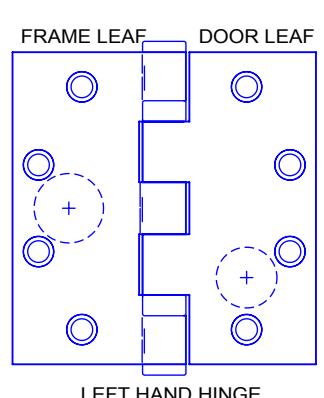

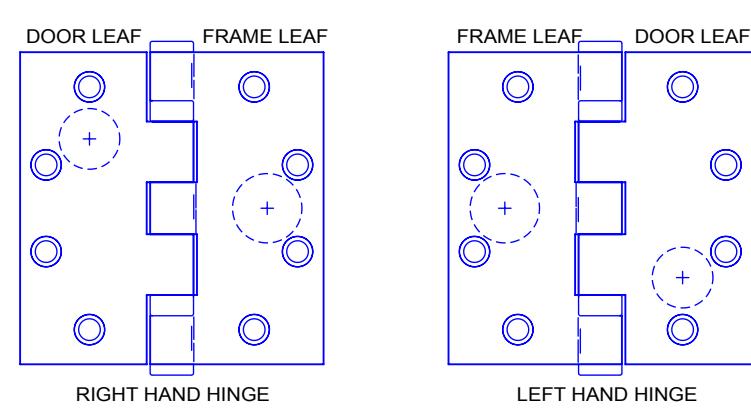

SHOWN. HINGE AS SIDE. HAND THE FRONT SHOWN FROM HINGES ARE

AND MUST BE MOUNTED IN THE CENTER POSITION ONLY. HINGES ARE NON-LOAD BEARING

DRAWING NO: T-CT00063 LEGACY TEMPLATE NO: T521

REV:01 REV DATE:9/2013
