4-1-2in 3-KNU (ETW2-22,ETW4, ETW6, ETW8, ETW10 & ETW12) t-ct00069-rev2

4-1/2" 3 KNUCKLE ETW HINGE TEMPLATE

MODELS ETW2-22, ETW4, ETW6, ETW8, ETW10 & ETW12 CONCEALED ELECTRIC THROUGH WIRE HINGE

FOR USE WITH ALL HAGER 4.5" FULL MORTISE 3 KNUCKLE BALL BEARING STANDARD AND HEAVY WEIGHT HINGES

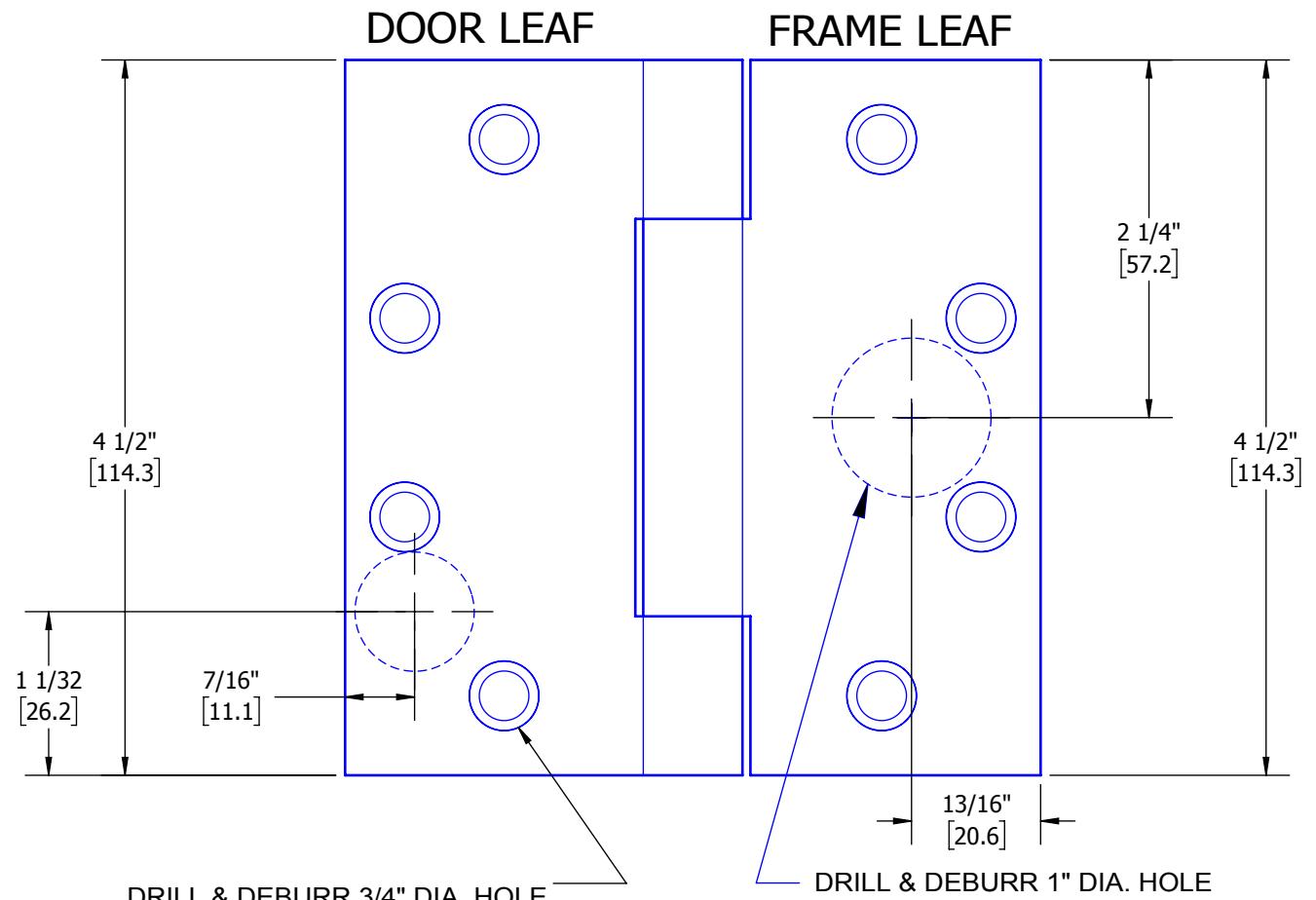

DRILL & DEBURR 3/4" DIA. HOLE IN DOOR FOR WIRES. WOOD DOOR APPLICATION REQUIRES 2" MIN. DEPTH.

IN FRAME REINFORCEMENT FOR WIRES. WOOD FRAME APPLICATION REQUIRES 2" MIN. DEPTH.

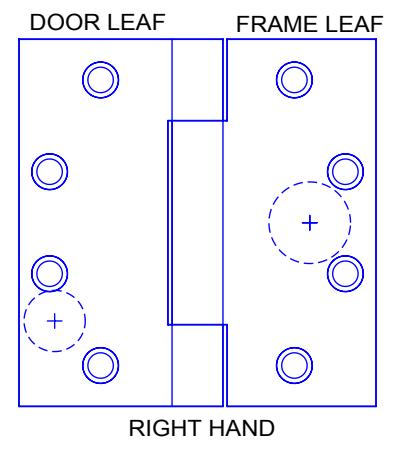

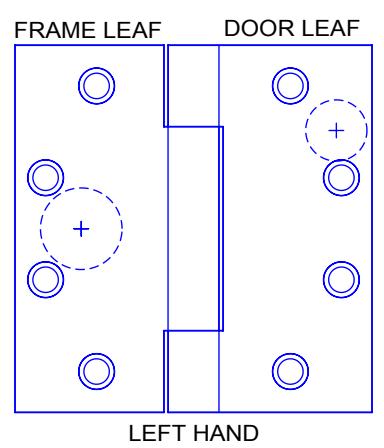

SHOWN. HINGE AS SIDE. HAND THE FRONT SHOWN FROM HINGES ARE

HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.

DRAWING NO: T-CT00069 LEGACY TEMPLATE NO: T522

REV: 02 SHEET 1 OF 1 REV DATE: 7/13/18
