4-1-2in 2 Knuckle ETW Hinge Template t-ct00124

4-1/2" 2 KNUCKLE ETW HINGE TEMPLATE

FOR USE WITH ALL HAGER MODEL ETW2-22, ETW4, ETW6, & ETW8 CONCEALED ELECTRIC THROUGH WIRE 4.5" FULL MORTISE 2 KNUCKLE STANDARD AND HEAVY WEIGHT HINGES

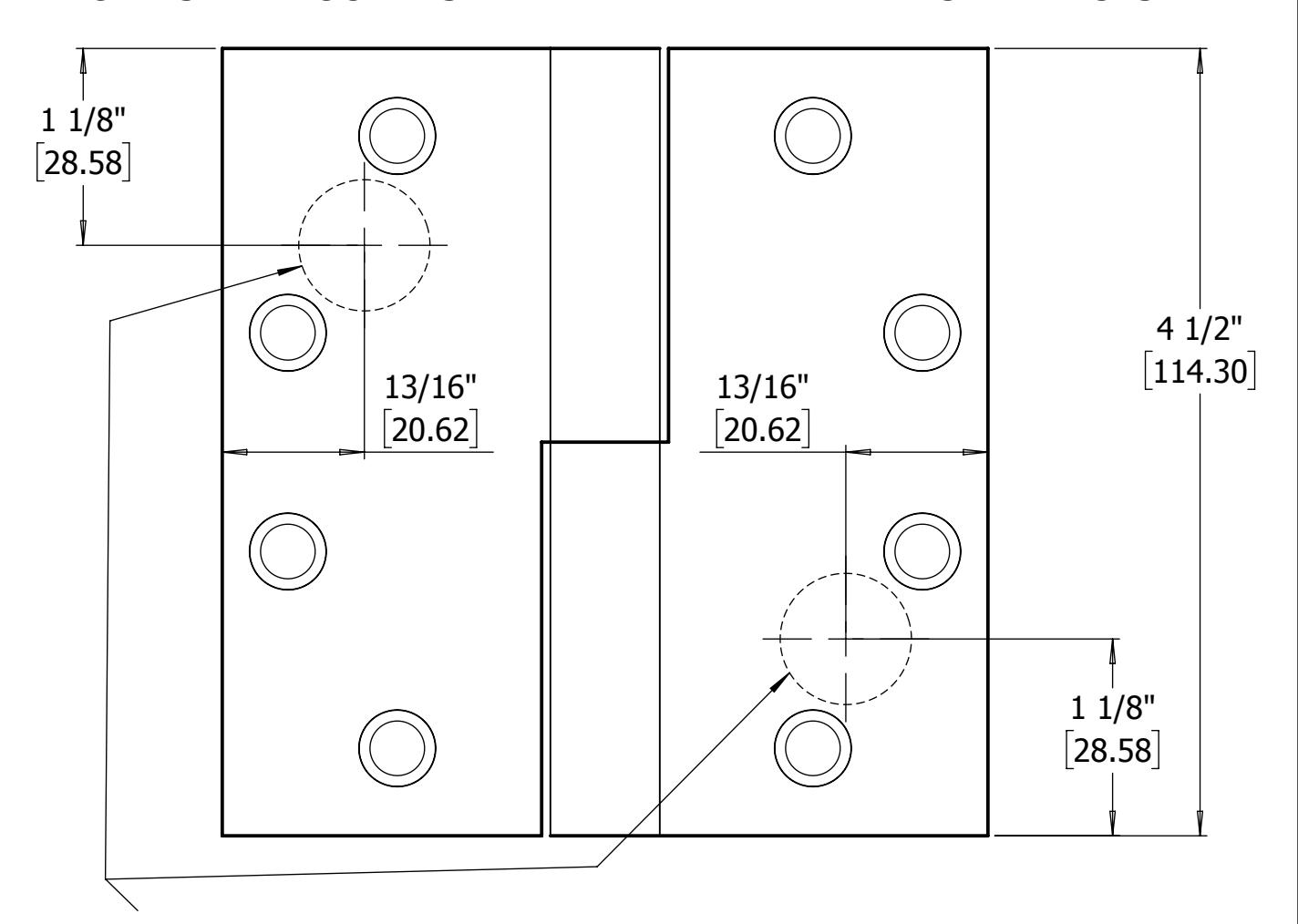

DRILL & DEBURR 3/4" DIA. HOLE IN FRAME REINFORCEMENT AND DOOR FOR WIRES. WOOD FRAME AND DOOR APPLICATION REQUIRES 2" MINIMUM DEPTH.

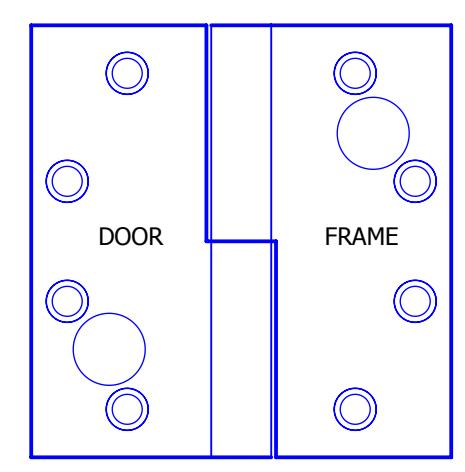

LEFT HAND HINGE

HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.

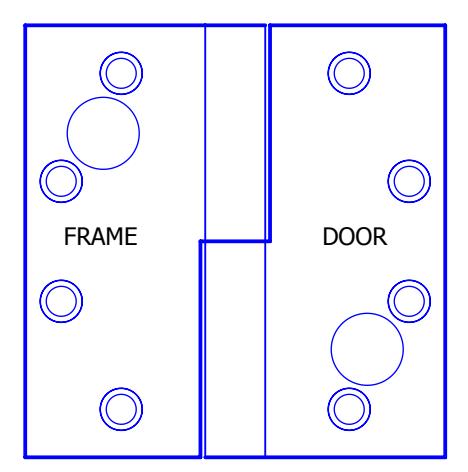

RIGHT HAND HINGE

DRAWING NO: T-CT00124	DRAWN BY: PK	DESCRIPTION:

REV:-REV DATE: 7/19/18

ENGINEERNIG APPROVAL: -
