3in x 4in Prison Hinge Full Surface t620
Open the original PDF document
View PDF| CUSTOMER | Template | No. | T 620 | |
| CUSTOMER P.O. # | _ | Rev. | _ | |
| HAGER # | TEMPLATE |

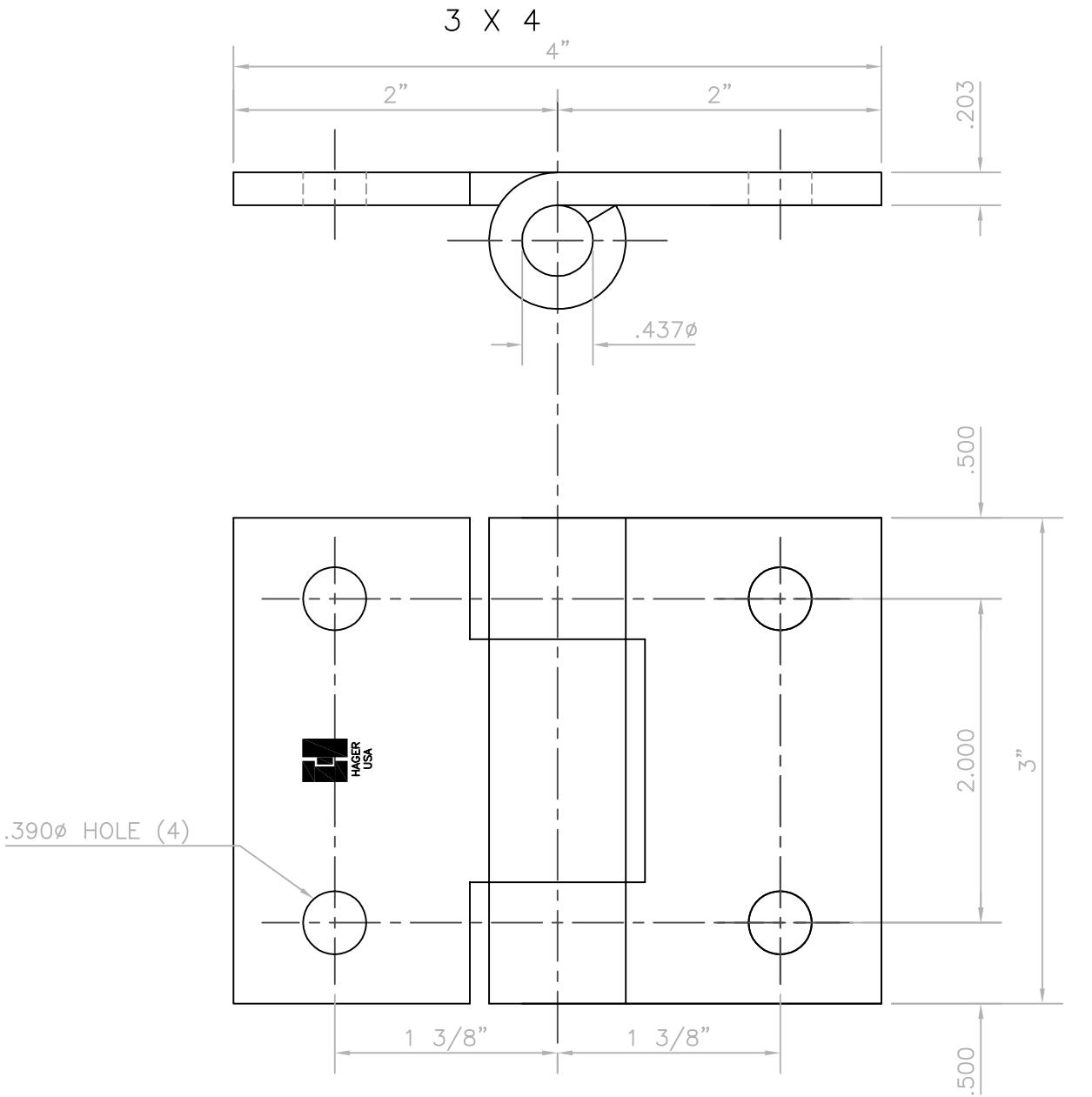

PRISON FULL SURFACE UTILITY HINGE
| CLASS NUMBER |
GAUGE
OF METAL |
PIN
DIA. |
KNUCKLE
DIA. |
|
|---|---|---|---|---|
| STEEL HINGES | DIA. | |||
| 990 | .203 | .437 | .859 | |
MACHINE BOLT SIZE: 1" X 16-3/8 TORX BUTTON HEAD BOLT
Template No. 7620 HAGEL®
HAGER HINGE CO. 139 Victor St. St. Louis, MO 63104
Template No. T 620
