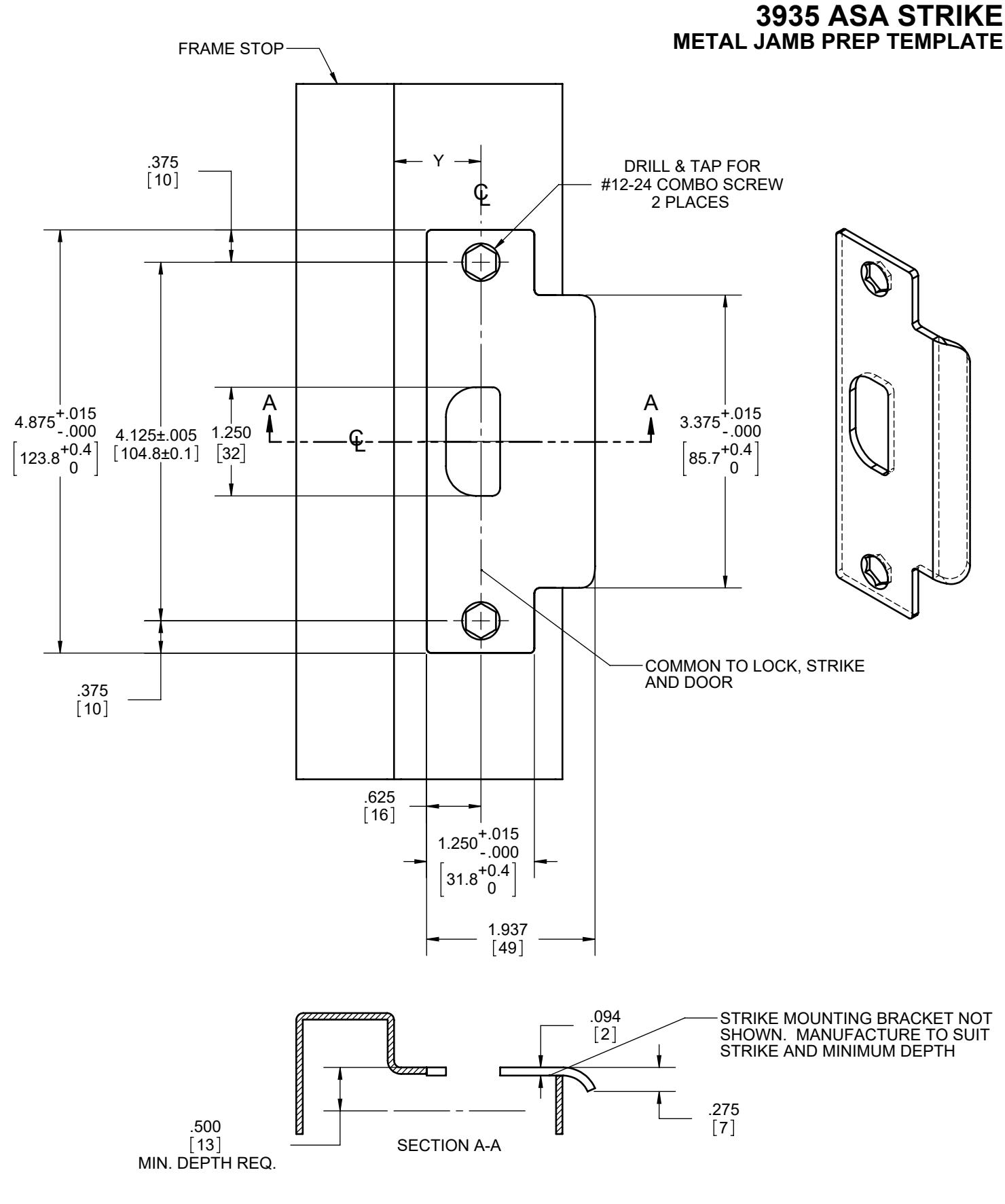

3935 ASA Strike – Metal Frame Template – T-LS00176-Rev06

NOTES:

1. DIMENSION "Y" IS A FUNCTION OF DOOR THICKNESS

2. STRIKE LOCATION MUST BE CHANGED RELATIVE TO THICKNESS OF DOOR SILENCER OR WEATHERSTRIPPING WHEN USED.

DIMENSIONS IN [ ] ARE IN MILLIMETERS

DRAWING NO: T-LS00176 REV: 06 SHEET 1 OF 1 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149 TEMPLATE NO:
