3929 Wood Frame Prep Template t-ls00165-template

DIMENSION "Y" IS A FUNCTION OF DOOR THICKNESS. STRIKE LOCATION MUST BE CHANGED RELATIVE TO THICKNESS OF DOOR SILENCER OR WEATHERSTRIPPING WHEN USED.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

DRAWN ENG. APPR MATERIAL Material <not specified> TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ± 1° BEND: ±1° TWO PLACE DECIMAL: ±0.01" DO NOT SCALE DRAWING THREE PLACE DECIMAL: ±0.004"

MRJ

12/11/2007

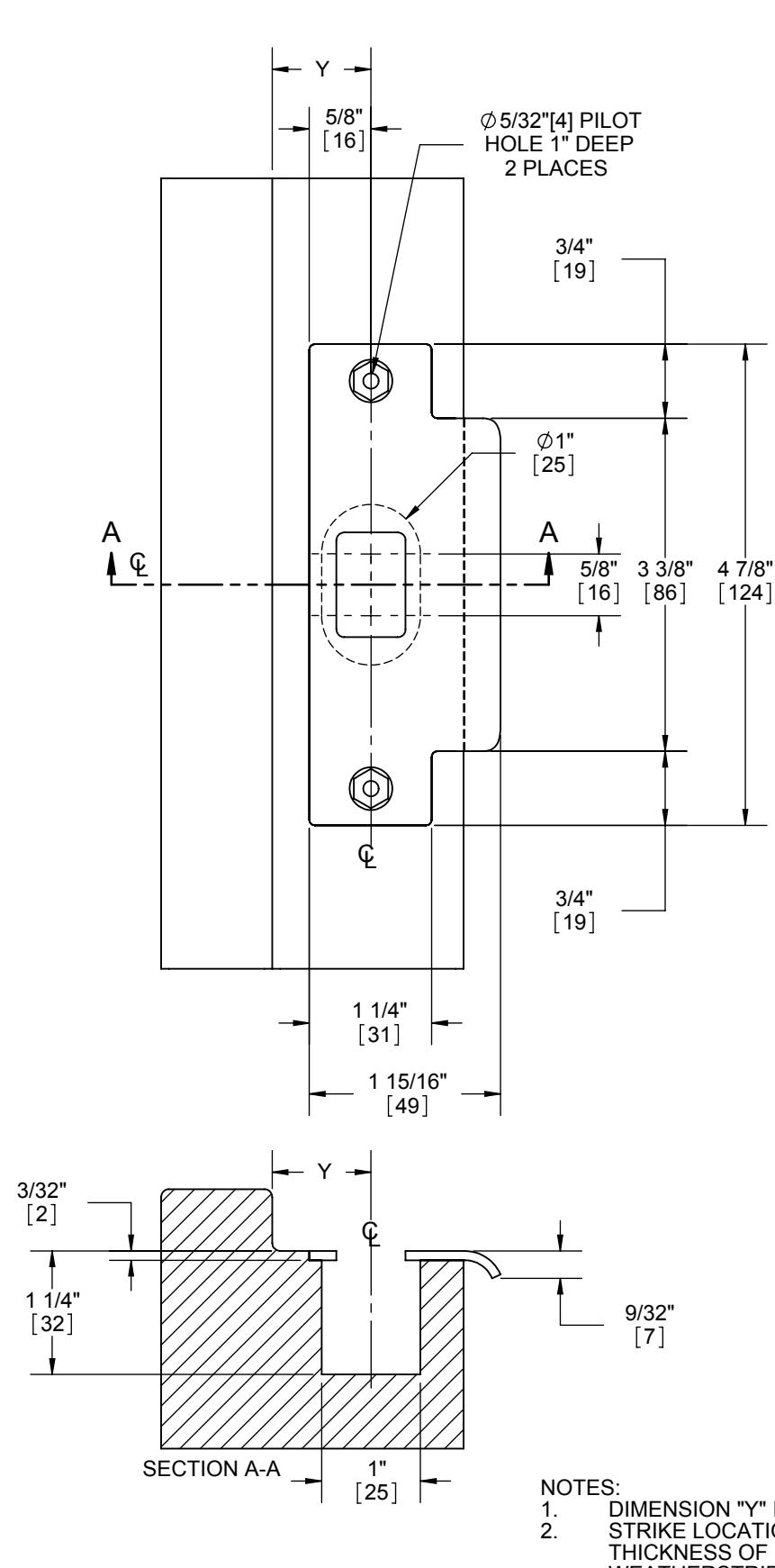

3929 ASA DEADBOLT STRIKE WOOD JAMB PREP TEMPLATE FOR 3100 AND 3200 SERIES DEADBOLTS

02 A T-LS00165 WEIGHT: 2.11 SHEET 1 OF 1 SCALE:1:2
