3929 Metal Frame Prep Template t-ls00177-template

MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST

DIMENSIONS IN [] ARE MILLIMETERS.

HAGER

MATERIAL Material <not specified> REVISION DATE OF TEMPLATE. PRIMARY DIMENSIONS SHOWN IN INCHES, DO NOT SCALE DRAWING

ENG. APPR TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ± 1° BEND: ±1° TWO PLACE DECIMAL: ±0.01"

THREE PLACE DECIMAL: ±0.004"

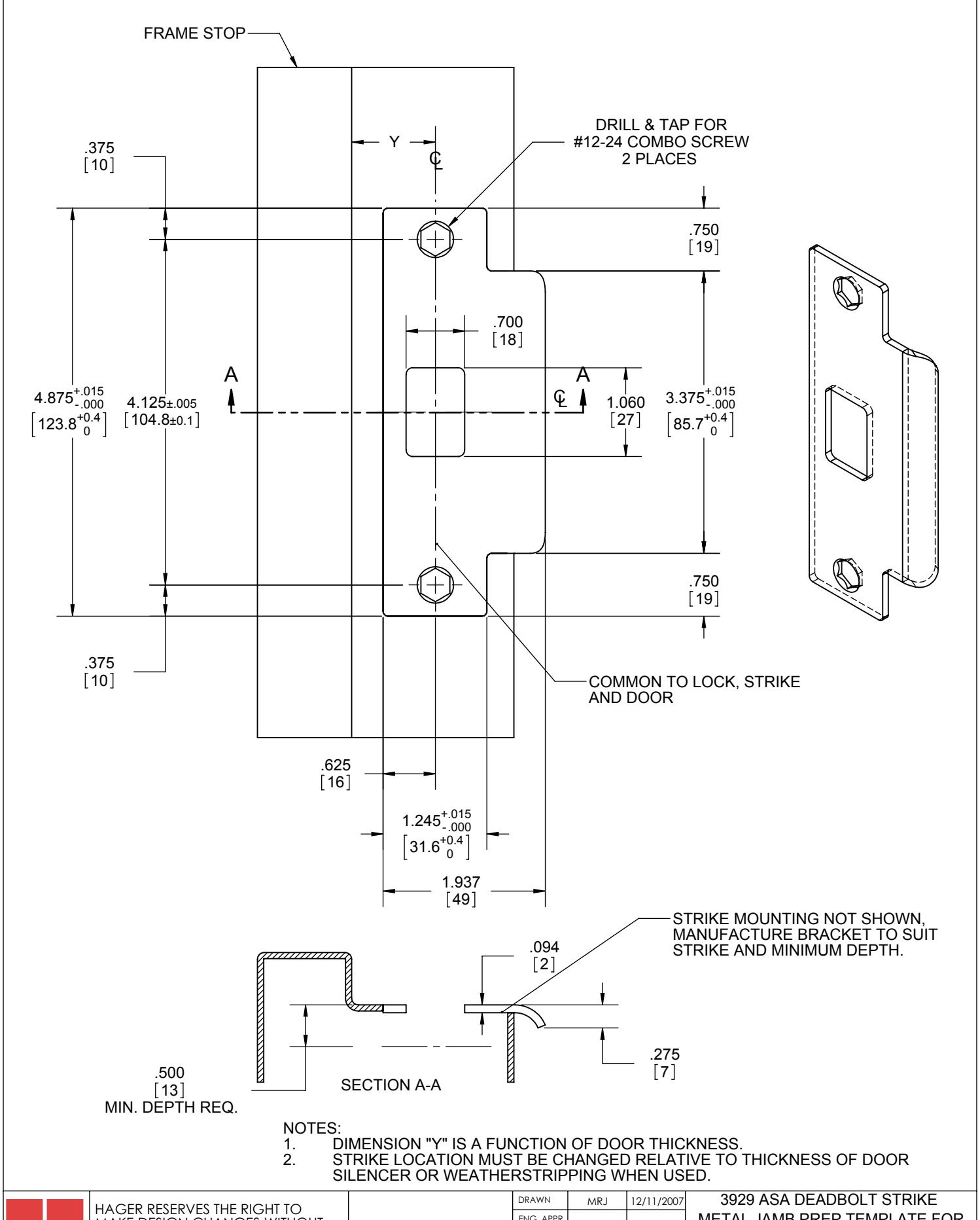

METAL JAMB PREP TEMPLATE FOR 3100 AND 3200 SERIES DEADBOLTS

Α 03 T-LS00177 WEIGHT: 0.32 SHEET 1 OF 1 SCALE:1:2
