3828 & 12-3828 with Lever Trim

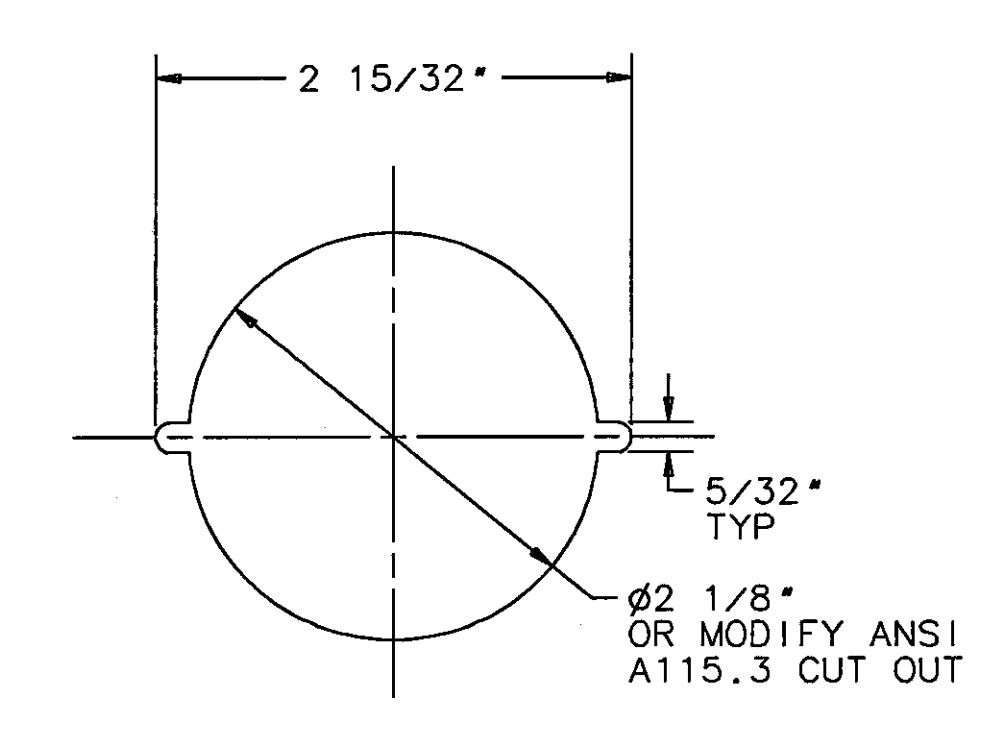

FOR INSIDE DOOR PREPARATION SEE TEMPLATE 4291 FOR 2727, TEMPLATE 4301 FOR 12-2727, TEMPLATE 4303 FOR 2828, TEMPLATE 4304 FOR 12-2828, TEMPLATE 4521 FOR 3727, TEMPLATE 4522 FOR 12-3727, TEMPLATE 4523 FOR 3828, TEMPLATE 4524 FOR 12-3828, TEMPLATE 4377 FOR 12-5800 ALARM EXIT, TEMPLATE 4374 FOR 5100 ALARM EXIT LOCK.

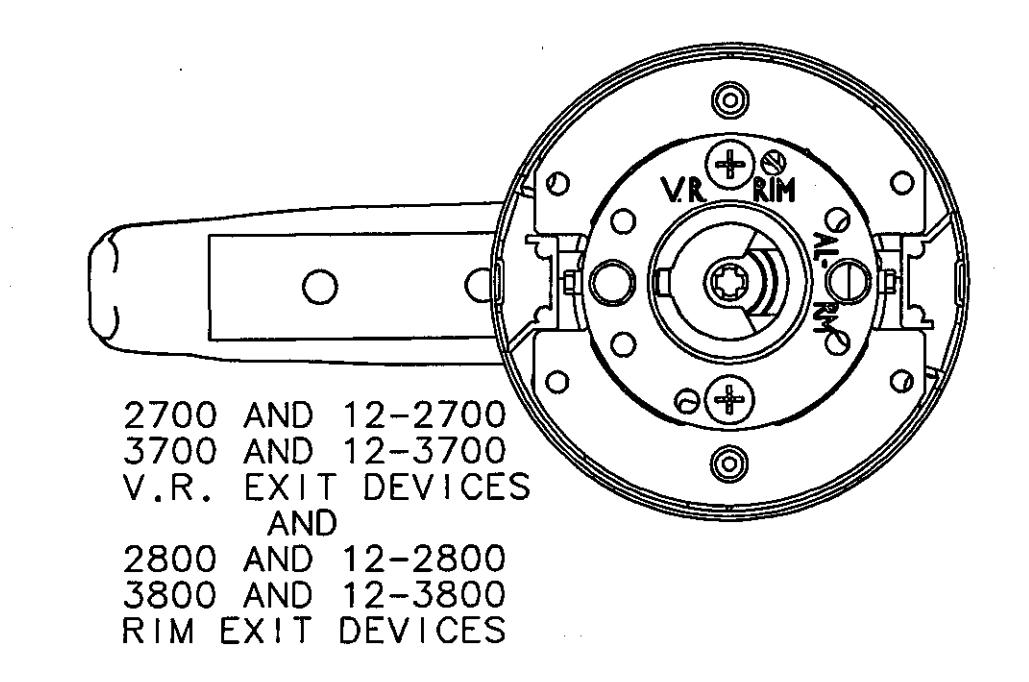

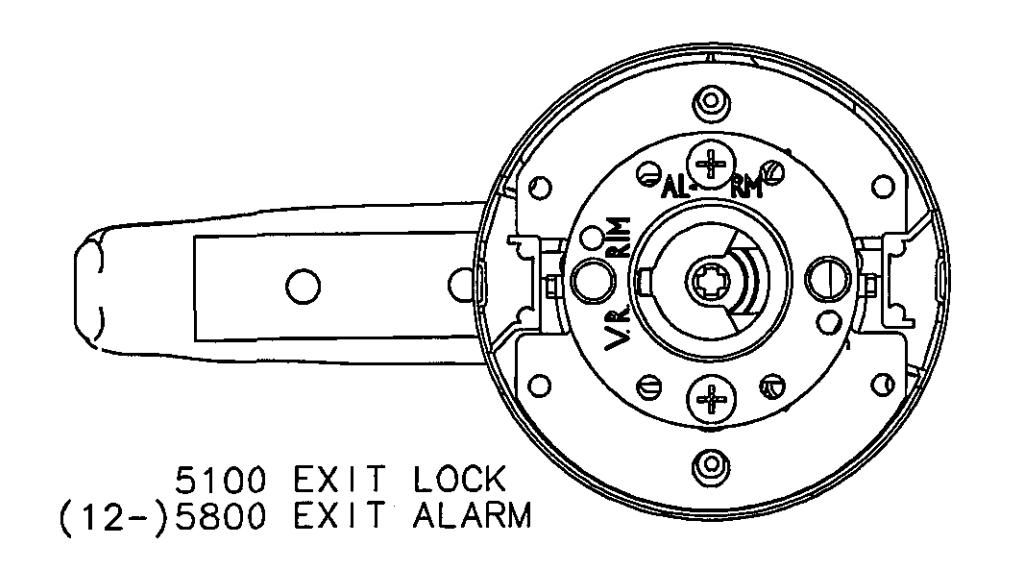

TEMPLATE: FOR 2727, 12-2727, 2828 12-2828, 3727, 12-3727, 3828, 12-3828, 5100,5800 & 12-5800 EXIT DEVICE NEW HAVEN, CONN. 06511 RELEASE DATE A PROPROD TEMPLET NO.

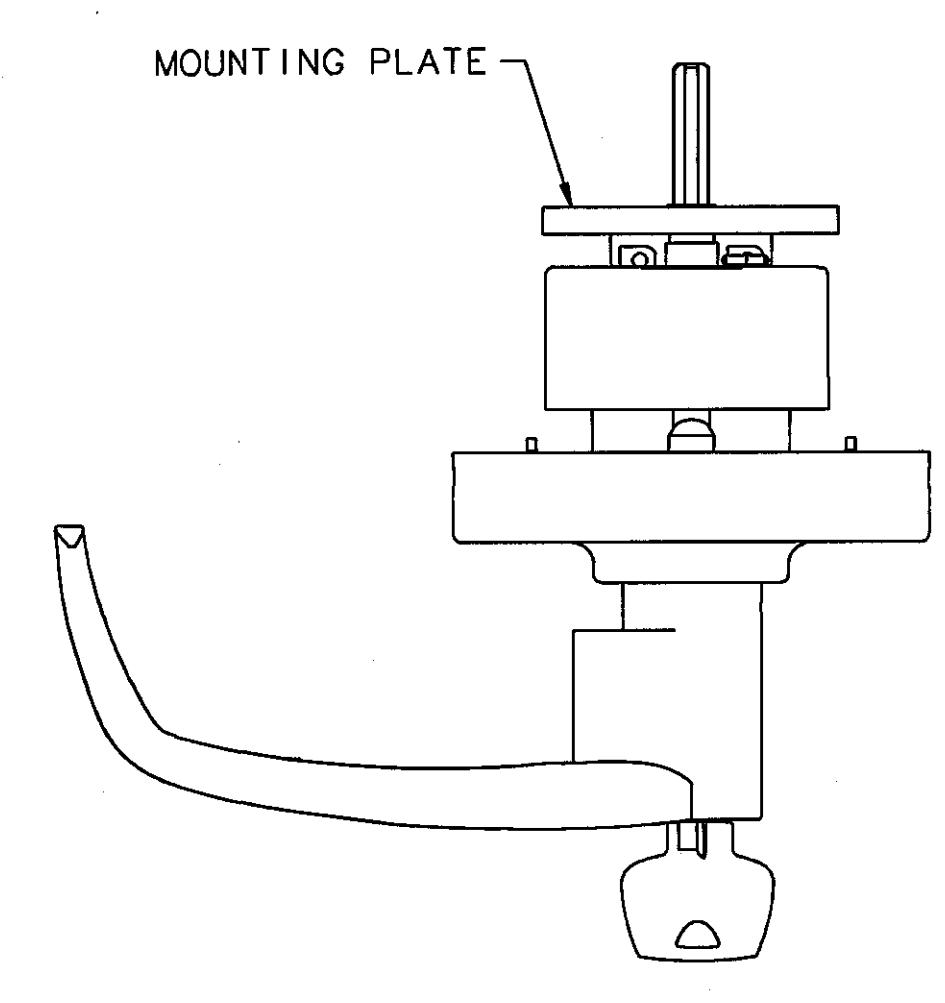

"LL" LEVER HANDLE TRIM

4485 D
