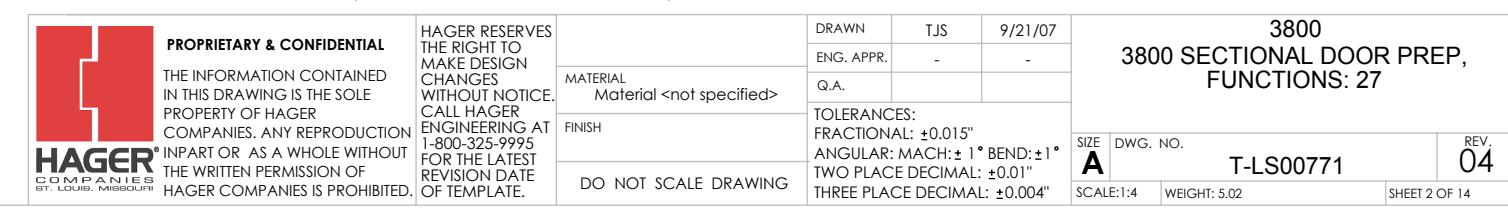

3827S Template – T-LS00771-Rev04_Func27

INSIDE OUTSIDE

NOTES:

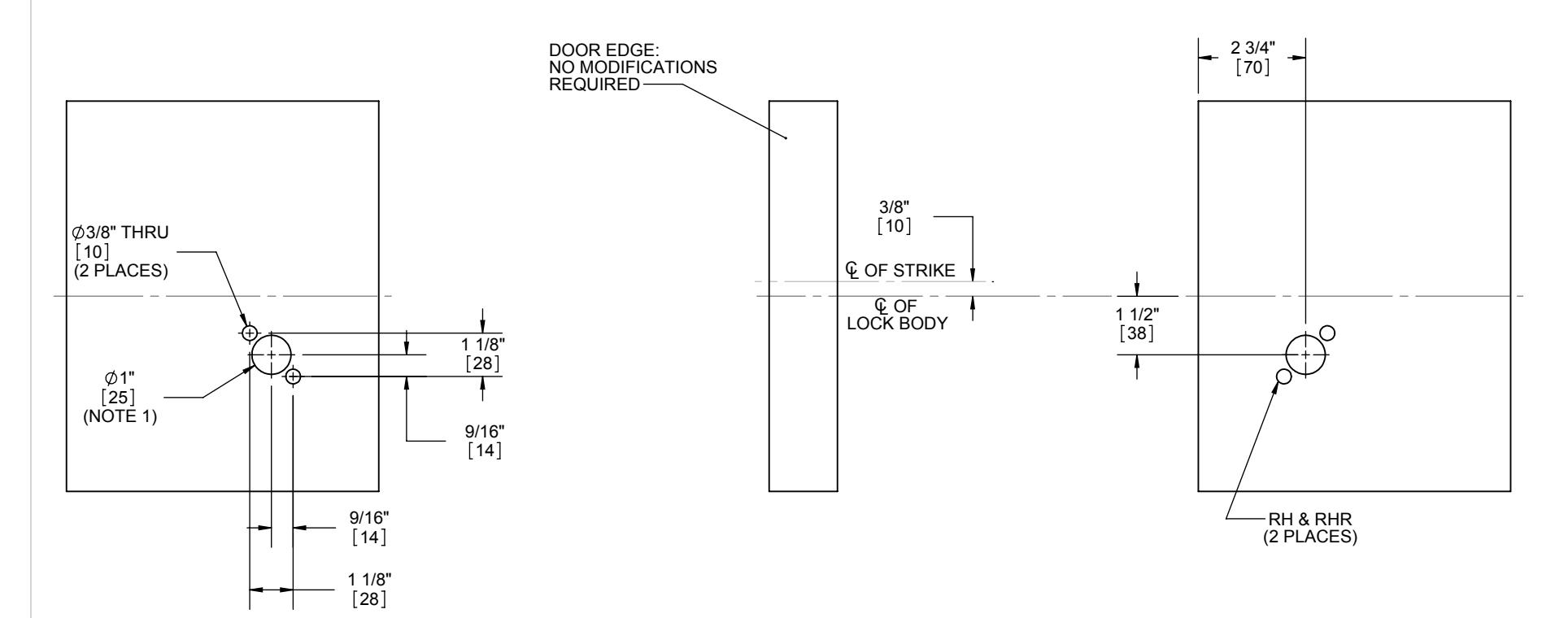

Although function 27 has dummy levers, the Ø1" thru hole is still required to accommodate the shape of the spring cages.

(RH, RHR SECTIONAL SHOWN)
