381A_381E Wall Mounted Electromagnetic DR Holder Ext Rod Template – T-TA01345-Rev01

To calculate extension rod length needed, use the formula below on style holder being used.

380F Measure distance from door to wall when held at desired opening. Subtract 3" (76mm) to obtain

Flush Mount: extension rod length needed.

380R Measure distance from door to wall when held at desired opening. Subtract 2-3/8" (60mm) to

Recessed Mount: obtain extension rod length needed.

380S Measure distance from door to wall when held at desired opening. Subtract 4-5/8" (117mm) to

Surface Mount: obtain extension rod length needed.

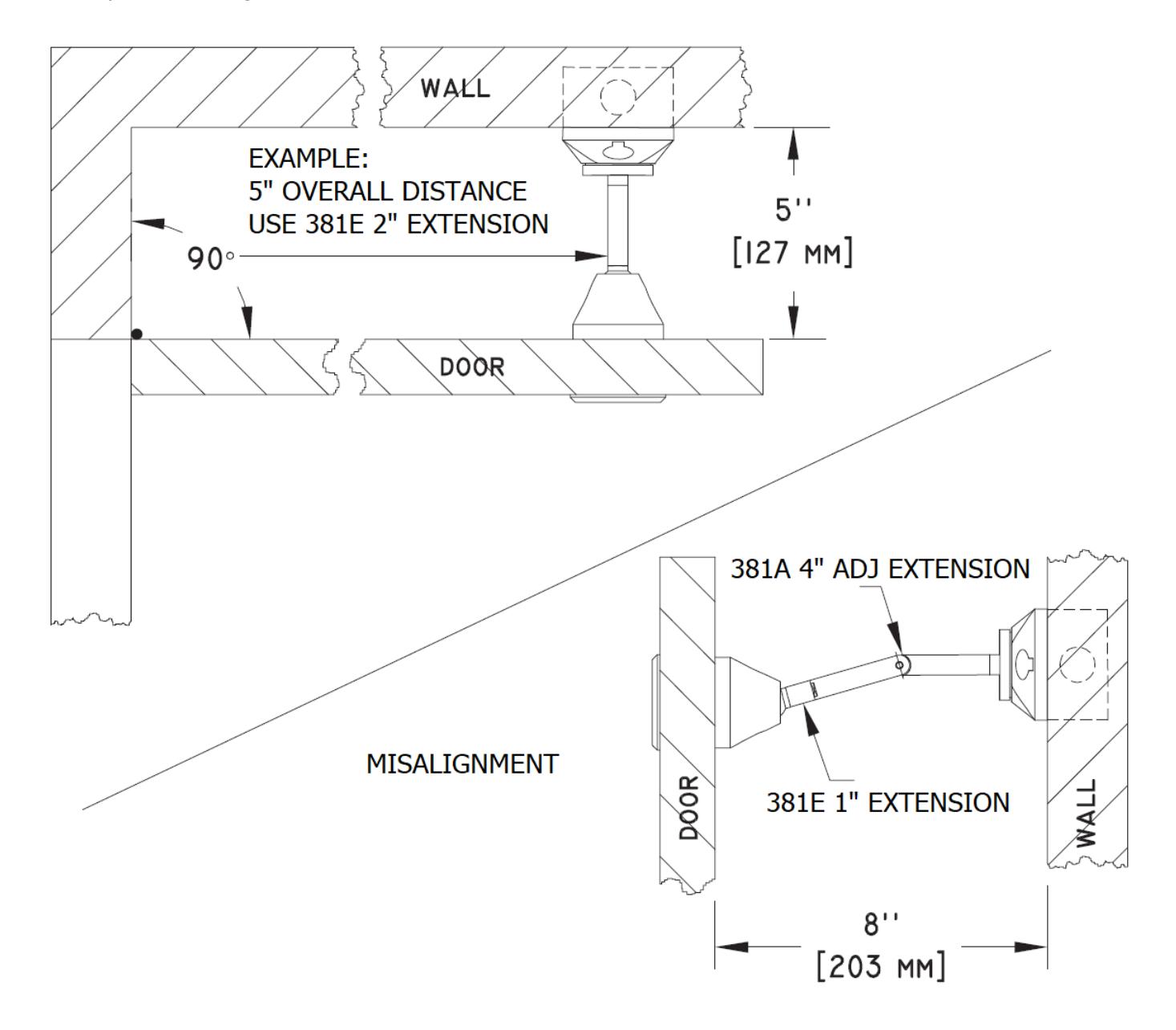

See example below using flush mount.
