3810S_3877S Template – T-LS00771-Rev04_Func10_77

INSIDE OUTSIDE

NOTES:

Although function 77 (Double Dummy with Lock Case) has dummy levers, the Φ1" thru hole is still required to accommodate the shape of the spring cages.

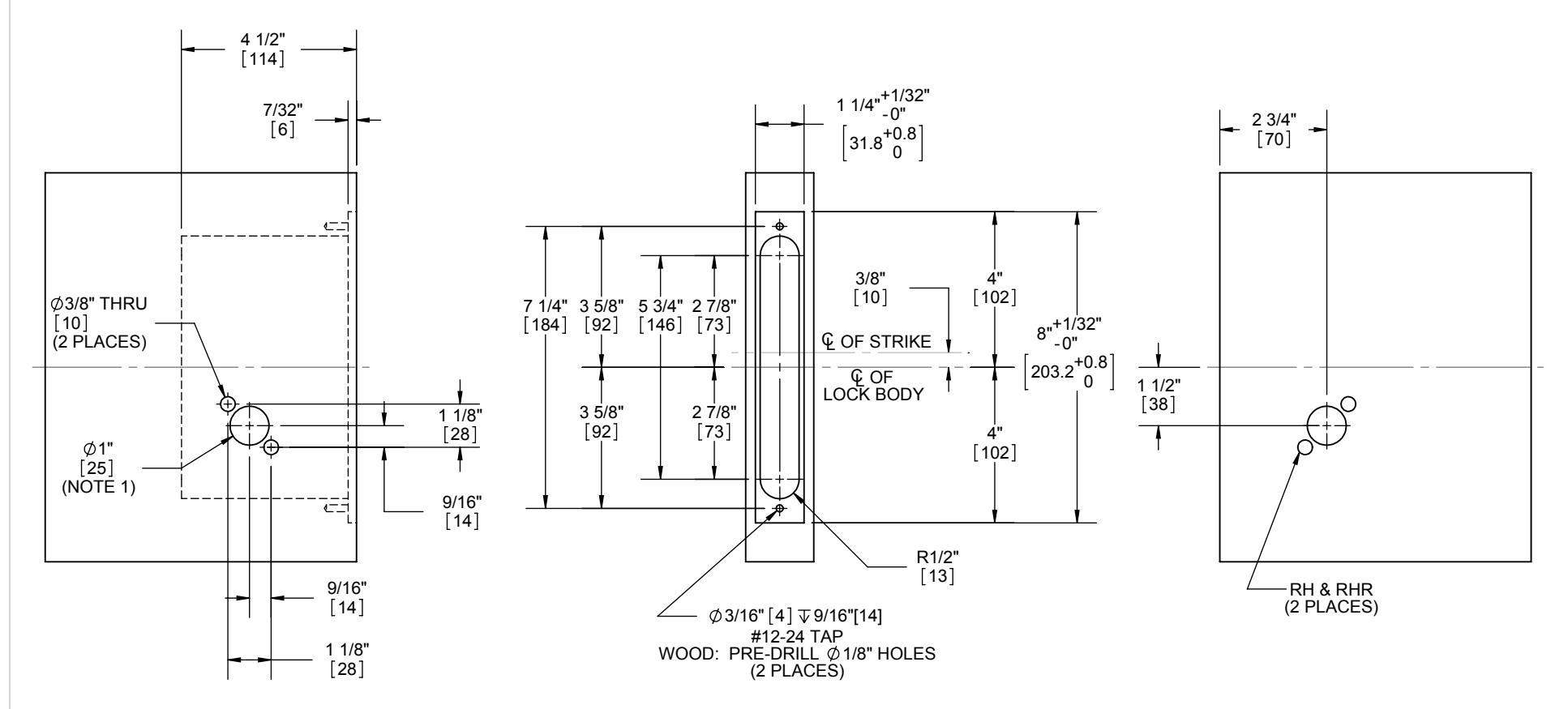

(RH, RHR SECTIONAL SHOWN)
