3780 Universal Coordinator Cut Sheet

Open the original PDF document

Coordinators, Flush Bolts and Roller Latches

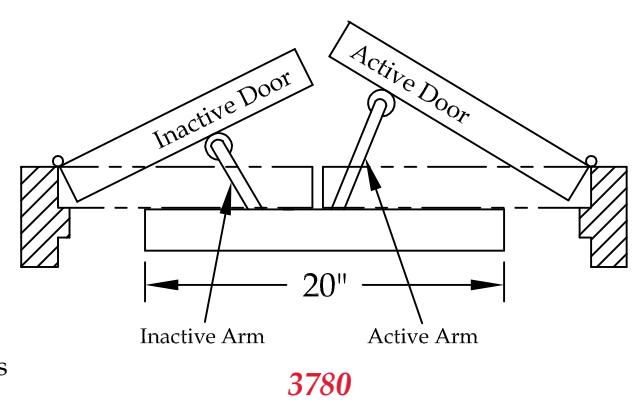

Used to prevent damage on doors and other hardware when inactive door can be opened before active door
)RUXVHZLWK)XOO%DU&RRrdinator or 3790 Gravity &RRrdinator
Mounts on inactive door
Not required when using flush bolts
Standard finish = USP²3ULPHGEODFNPDWWH&RQWDFW factory for custom finishes

)RUSDLURIGRRUVXSWR·ZLGH

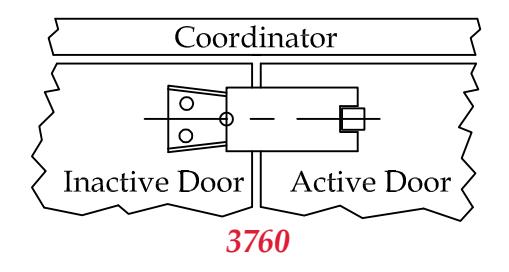

The long arm holds the active door open until the short arm is depressed by the inactive door
Stop mounted mounting brackets not required
Standard finish = USP²3ULPHGEODFNPDWWH&RQWDFW factory for custom finishes
0HHWVRUH[FHHGV ANSI 156.3, Type 21 requirements (when used with carry bar)
Mounting brackets not required when using stop mounted hardware
UL Listed for use with a pair of swinging fire doors incorporating an astragal for up to and including 3 hours
1RWIRUXVHZLWKH[SRVHGYHUWLFDOrod panic devices
US Patent No. 6,250,014

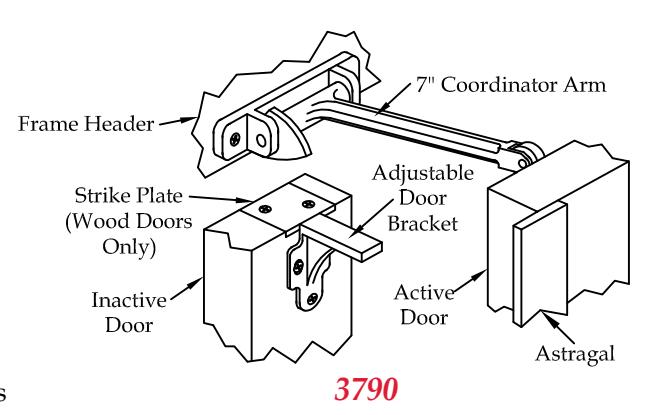

Roller arm stops active door from closing before inactive door
$FWLYHGRRUXSWRDQGLQFOXGLQJ·µZLGH
,QDFWLYHGRRUXSWRDQGLQFOXGLQJ·µZLGH
%RWKGRRUVRYHU·µZLGH
&ORVLQJRILQDFWLYHGRRUFDXVHVWKHVWULNHSODWHRQWRSRI the door to lift the arm and close the active door. As inactive door closes, the nylon roller lifts the coordinator arm.
Gravity arm and door bracket are field-adjustable for installation ease
UL Listed for use with a pair of swinging fire doors incorporating an astragal for up to and including 3 hours
StandarGILQLVK 86'²VDWLQVWDLQOHVVVWHHO&RQWDFW factory for custom finishes
