3760 Carry Bart Template
Open the original PDF document
View PDF3760 SERIES CARRY BAR

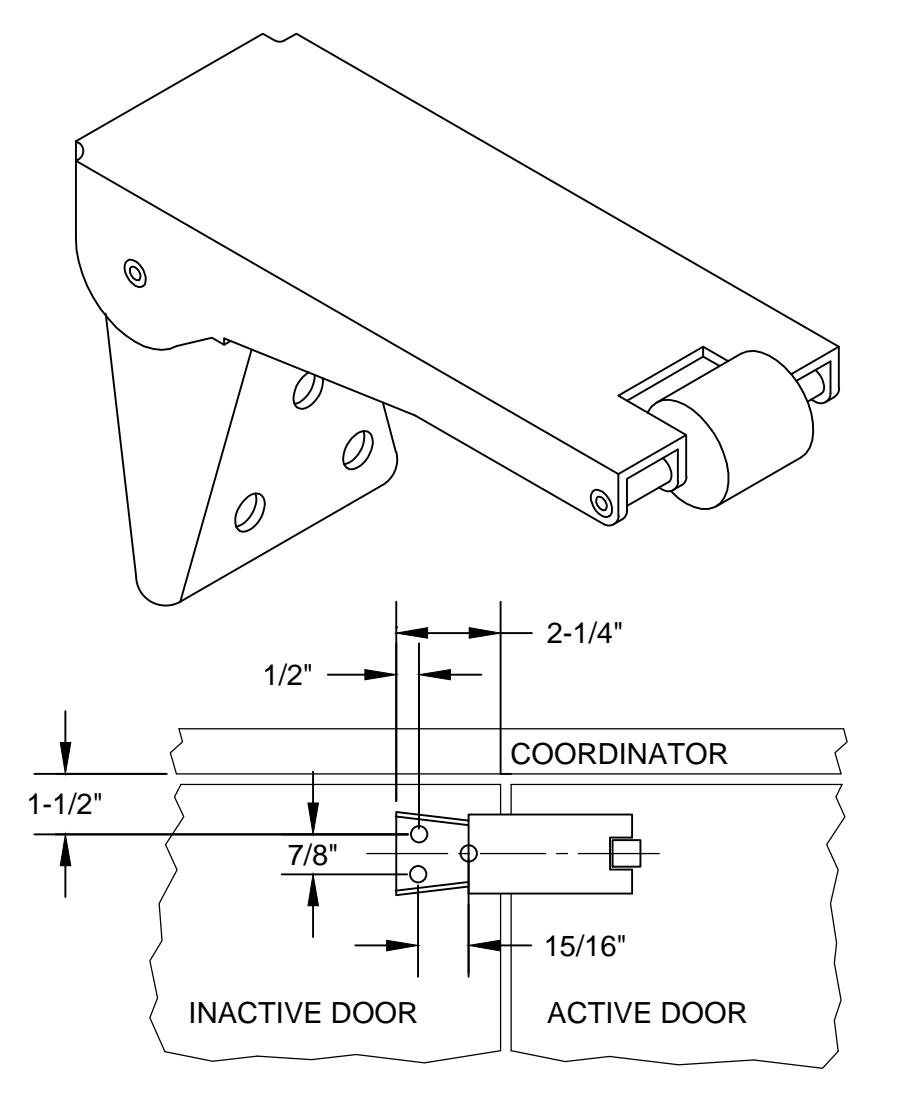

CARRY BAR INSTALLATION DRILL FOR (3) 3/8" DIA. SEX BOLTS
NOTES:
- 1. 3760 SERIES CARRY BAR IS MOUNTED ON THE INACTIVE DOOR. WHEN THE INACTIVE DOOR OPENS, THE CARRY BAR OPENS THE ACTIVE DOOR UNTIL IT ENGAGES THE COORDINATOR HOLD OPEN LEVER.
- 2. THE CARRY BAR IS NOT USED WHEN THE INACTIVE DOOR IS EQUIPPED WITH AUTOMATIC OR SELF-LATCHING FLUSH BOLTS.
