3751 & 3752 Mounting Brackets – Template

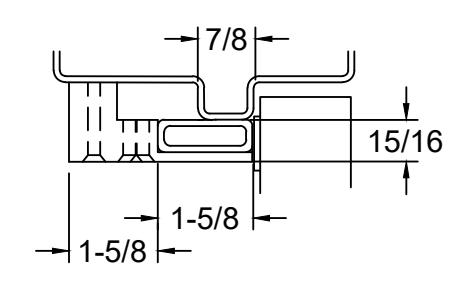

3751/3752 MOUNTING TEMPLATES

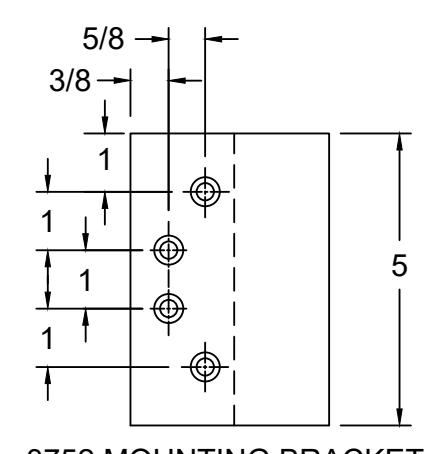

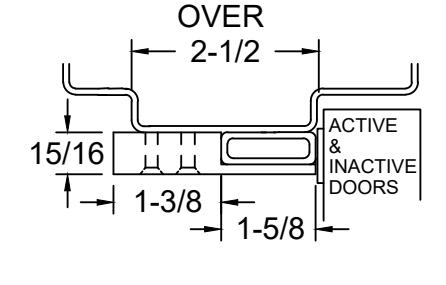

3752 MOUNTING BRACKET FOR STOP WIDTHS OVER 2-1/2"

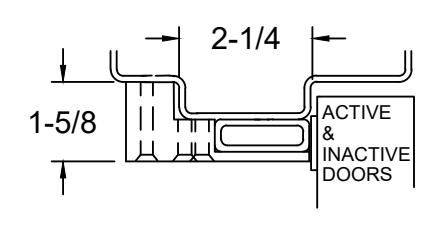

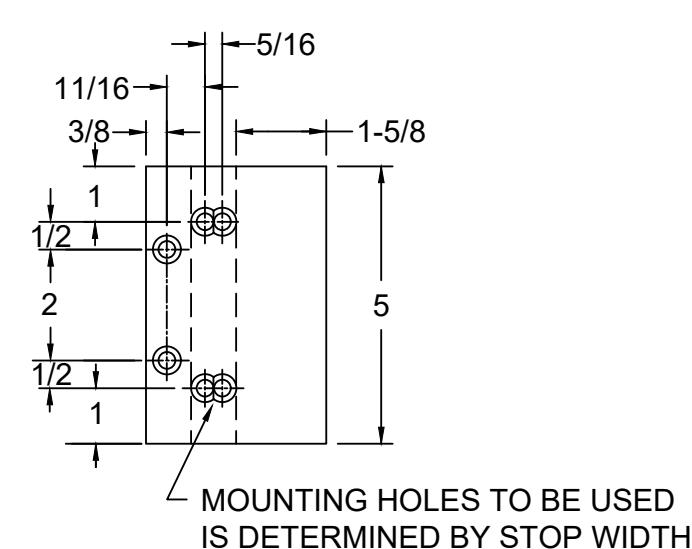

3751 MOUNTING BRACKET FOR STOP WIDTHS UP TO 2-1/2"

SCREW DETAILS

(6) 10-32 x 1-1/2" PH. TRUSS HEAD MACHINE SCREW, ZINC PLATED

NOTES:

• 1, MOUNTING BRACKETS FOR STOP APPLIED HARDWARE.
• 2, MOUNT BRACKETS TO FRAME WITH PROVIDED SCREWS.
• 3, BRACKETS MUST BE FIELD DRILLED AND TAPPED FOR STOP MOUNTED HARDWARE.
• 4, INSTALL DOOR APPLIED HARDWARE 15/16" LOWER TO CLEAR COORDINATOR AND BRACKET.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

3751-3752-02.DWG

3751/3752

PAGE 1 OF 1 ISSUED 05-27-22
