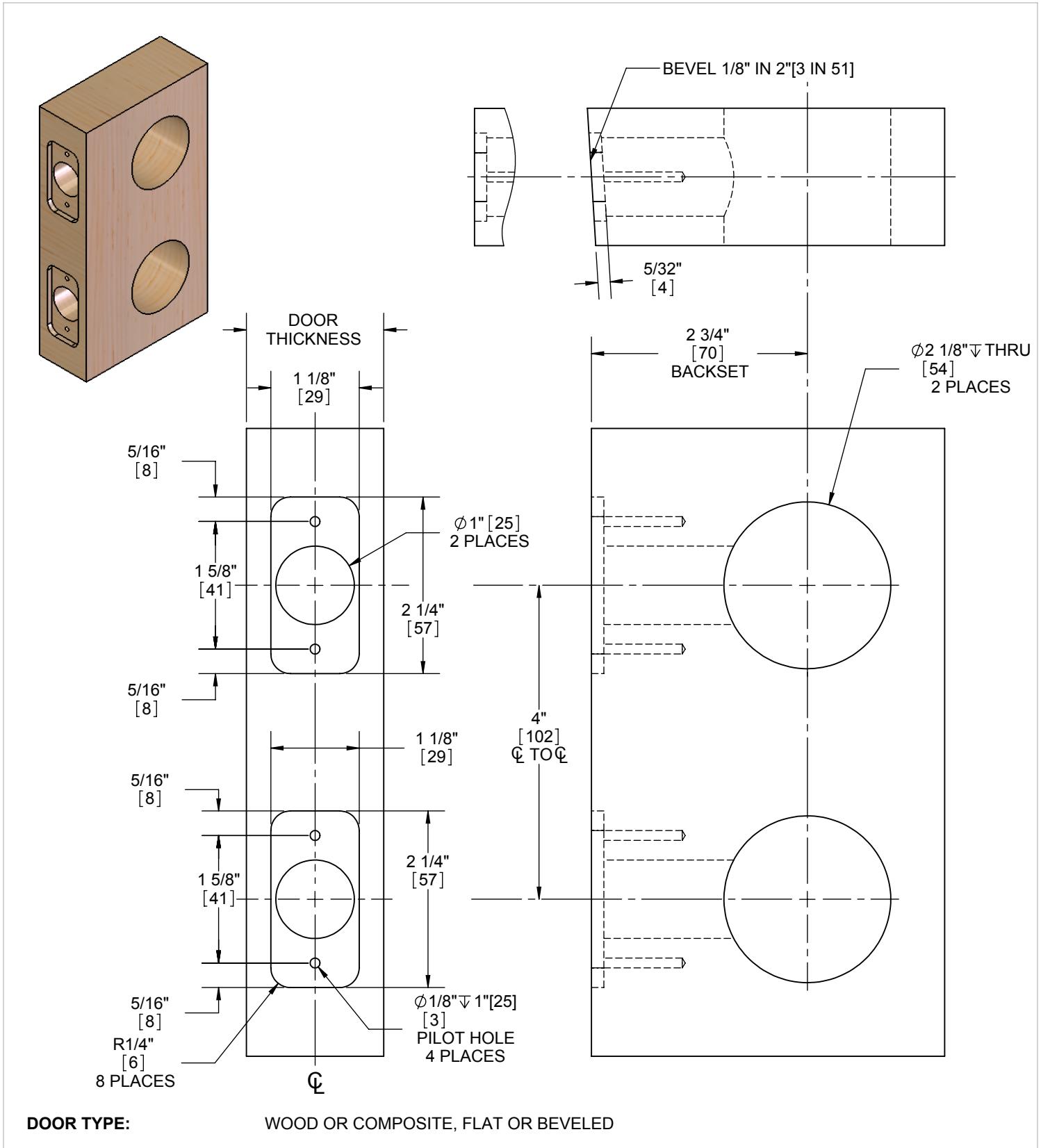

3700 Series RC Wood Door Template 2-3-4in BS – T-LS00156-Rev02

DOOR THICKNES: 1 3/8"[35] - 2"[51]

LATCHBOLT FACEPLATE: 1/4"R, 1 1/8"[29] WIDTH DEADBOLT FACEPLATE: 1/4"R, 1 1/8"[29] WIDTH

BACKSET : 2 3/4"[70]

DIMENSIONS SHOWN IN BRACKETS [] ARE IN MILLIMETERS
