3700 Series Metal Door Template 2-3-8in BS – T-LS00187-Rev03
Open the original PDF document
View PDF

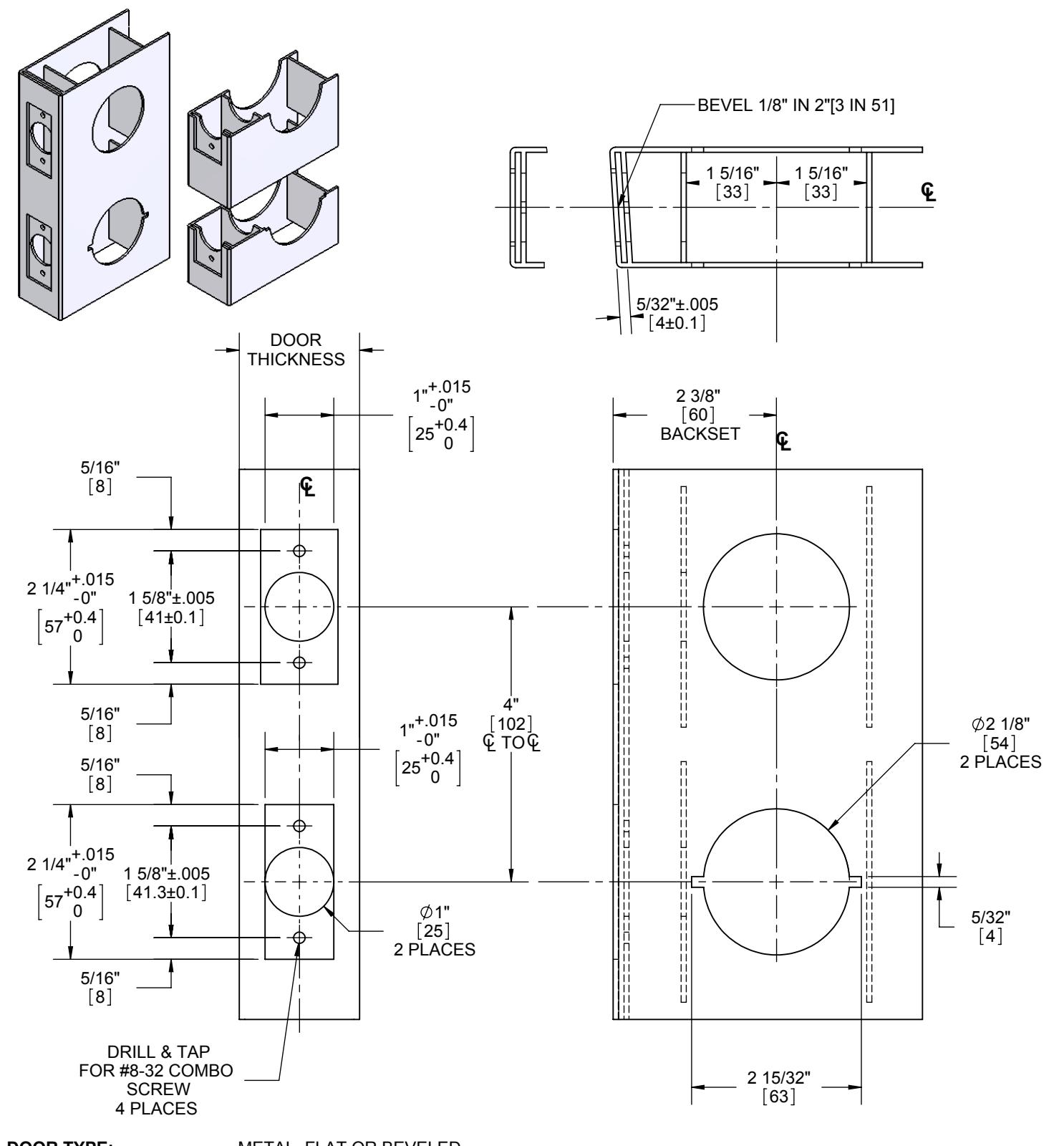

DOOR TYPE: METAL, FLAT OR BEVELED
DOOR THICKNESS : 1 3/8"[35] - 2"[51]
LATCHBOLT FACEPLATE: SQUARE 1"[25] WIDTH DEADBOLT FACEPLATE: SQUARE 1"[25] WIDTH
BACKSET: 2 3/8"[60]
DIMESIONS IN [] ARE IN MILLIMETERS
