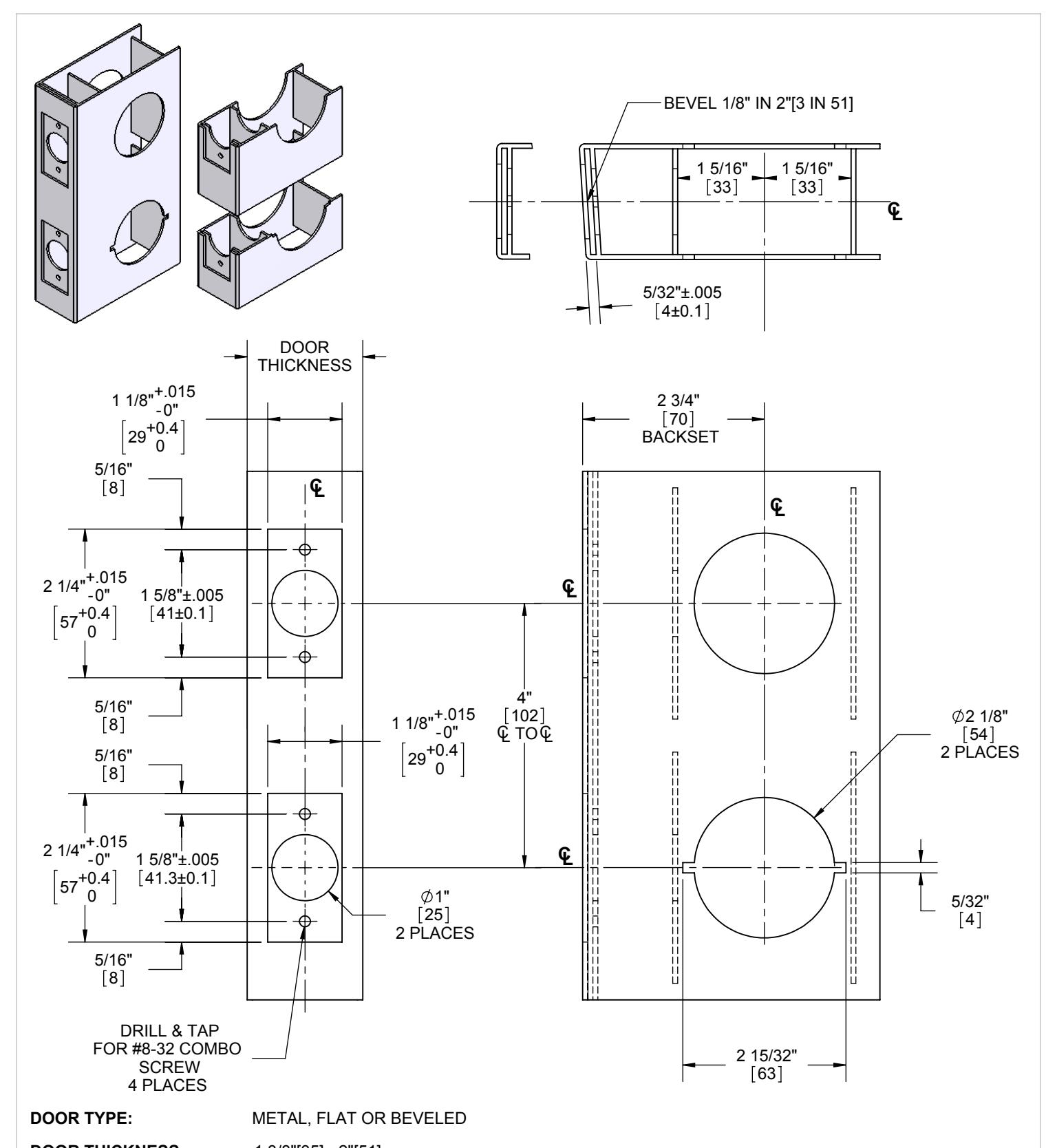

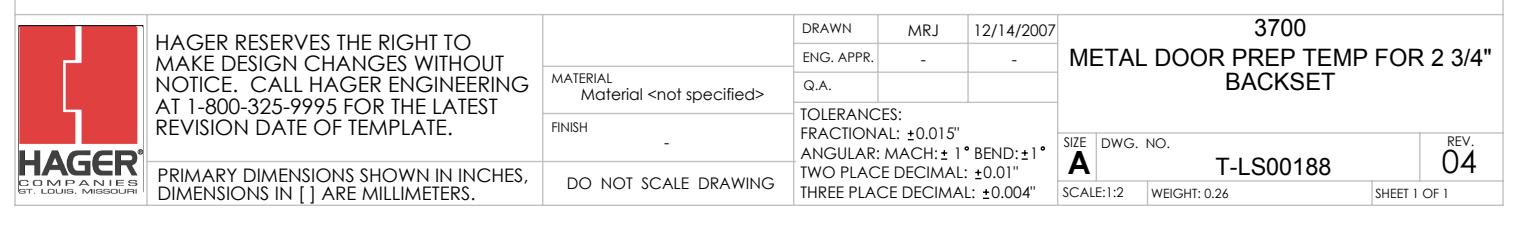

3700 Series Metal Door Template 2-3-4in BS – T-LS00188-Rev04
Open the original PDF document
View PDF
DOOR THICKNESS : 1 3/8"[35] - 2"[51]
LATCHBOLT FACEPLATE: SQUARE 1 1/8"[29] WIDTH DEADBOLT FACEPLATE: SQUARE 1 1/8"[29] WIDTH
BACKSET : 2 3/4"[70]
DIMESIONS IN [] ARE IN MILLIMETERS
