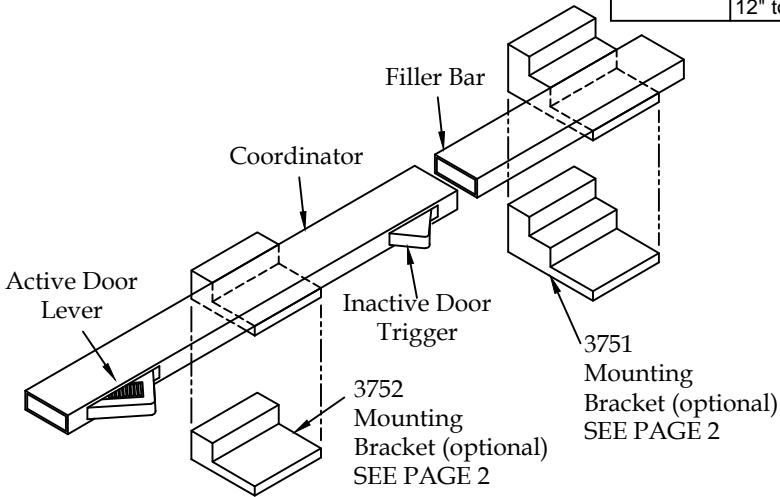

3700 SERIES- FULL BAR COORDINATIOR W/ FILLER BAR

NOTE:

  • CLOSE DOOR AGAINST STOP. LOCATE ACTIVE & INACTIVE DOOR STRIKES AS SHOWN BELOW.
  • LOCATE COORDINATOR AS SHOWN BELOW. INSTALL COORDINATOR WITH (1)12-24 MS TO HOLD 3700 IN POSITION BEFORE DRILLING OTHER HOLES.
  • IF REQUIRED, INSTALL FILLER BAR IN GAP BETWEEN END OF COORDINATOR AND INACTIVE DOOR STOP.

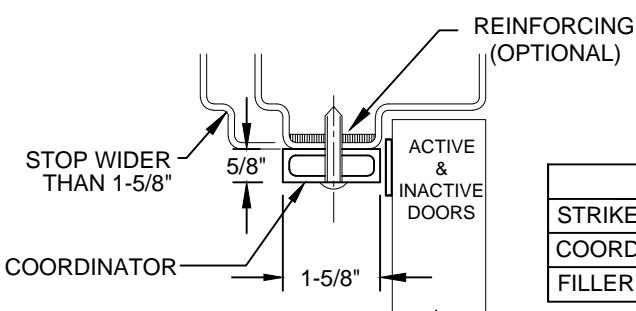

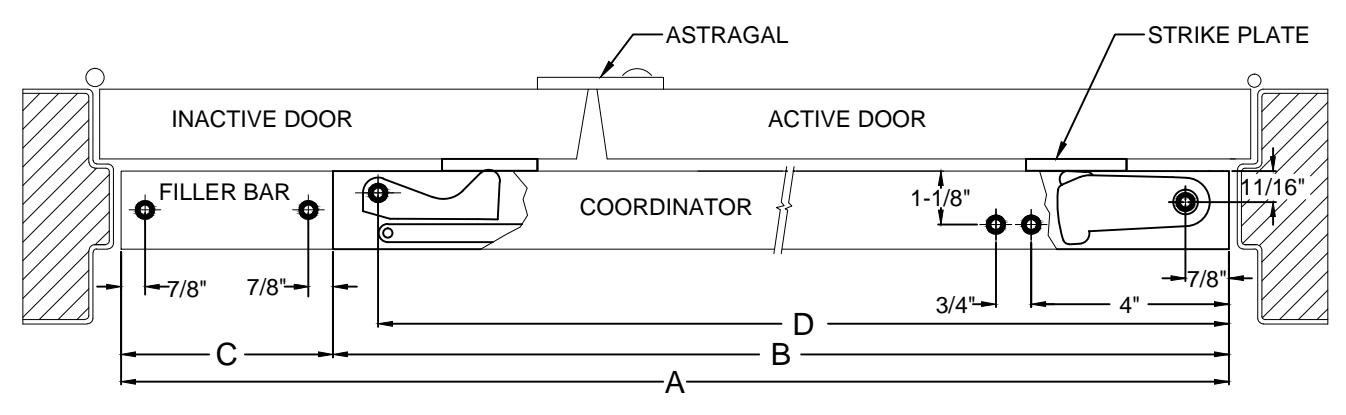

MOUNTING HOLE LOCATIONS

3700 SERIES SIZING CHART
MODEL DOOR FRAME
OPENING
(Equal Pair) 		COORDINATOR
(included) 		FILLER BAR (included) DIMENSION
A В C (cut to length) D Е
3711 52" Or Less 32" 20" 31" 27-1/2"
3712 52-1/16" to 56" 32" 32" 31" 27-1/2"
3721 56-1/16" to 72" 52" 20" 51" 47-1/2"
3722 72-1/16" to 84" 52" 32" 51" 47-1/2"
3723 84-1/16" to 96" 52" 44" 51" 47-1/2"
3733 96-1/16" to 104" 60" 44" 59" 55-1/2"
(unequal pair)
3741 36" Active & 42" 20" 41" 37-1/2"
12" to 24" Inactive

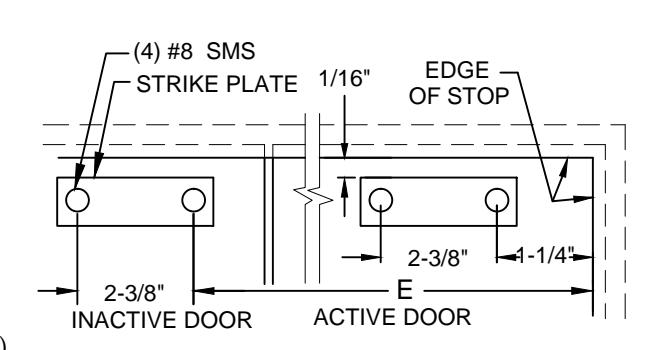

STRIKE PLATE LOCATION ON DOOR

SCREW DETAILS STRIKE PLATES (4) #8 FLAT HD U/C SMS COORDINATOR (4) 12-24 TRUSS HD MS FILLER BAR (2) 12-24 TRUSS HD MS

3700-1-04.DWG

3700 FULL BAR COORDINATOR WITH FILLER BAR

© 2016 ABH Mfg., Inc. printed in USA

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PAGE 1 OF 2 REVISED 09-02-16

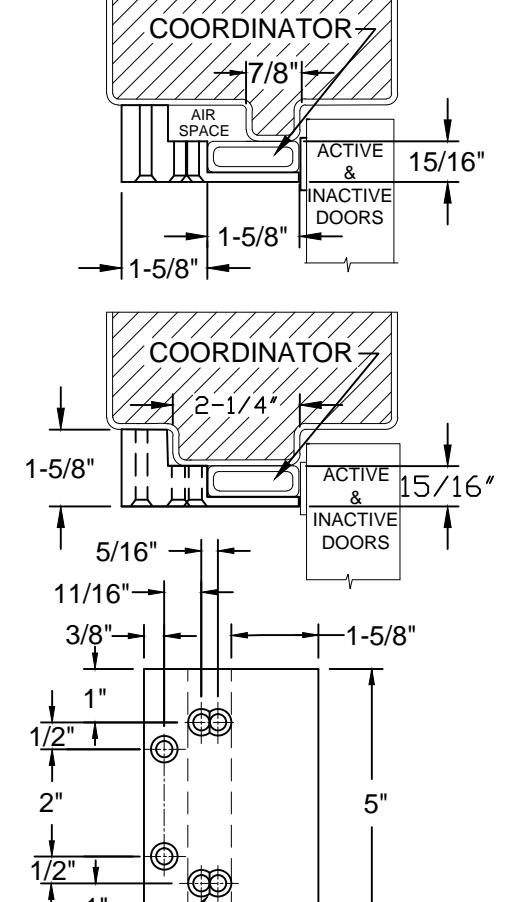

3700 SERIES COORDINATORS - 3760 CARRY BAR, MOUNTING BRACKETS

COORDINATOR

OVFR ACTIVE 15/16" INACTIVE DOORS 5/8 5"

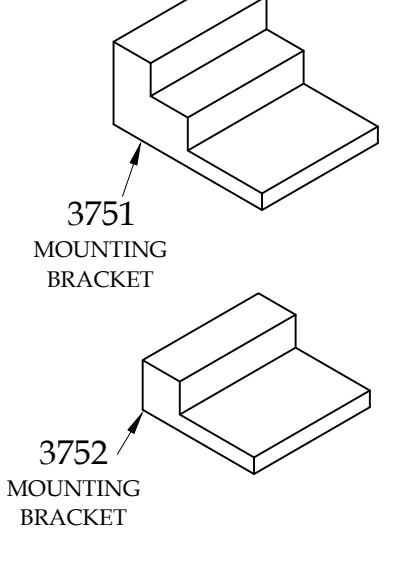

3752 MOUNTING BRACKET FOR STOP WIDTH OVER 2-1/2"

NOTE:

1. MOUNTING BRACKETS FOR STOP APPLIED HARDWARE.

∠MOUNTING HOLES TO BE USED IS DETERMINED BY

STOP WIDTH 3751 MOUNTING BRACKET

FOR STOP WIDTH UP TO 2-1/2"

  • 2. TO MOUNT BRACKETS, DRILL & TAP FOR (4)10-32 SCREWS.
  • 3. BRACKETS MUST BE FIELD DRILLED AND TAPPED FOR STOP MOUNTED HARDWARE.
  • 4. INSTALL DOOR APPLIED HARDWARE 15/16" LOWER TO CLEAR COORDINATOR AND BRACKET.

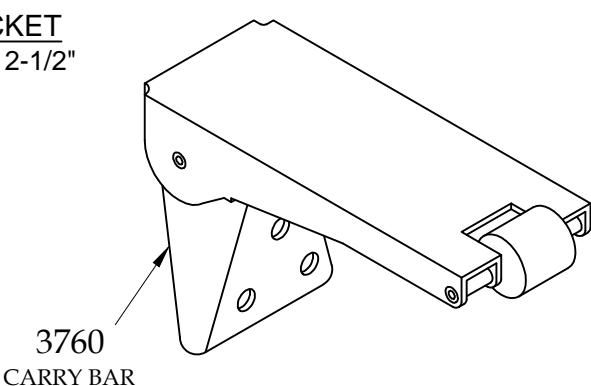

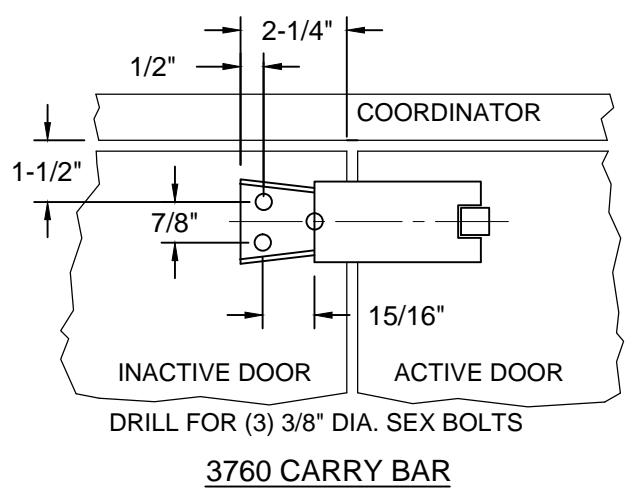

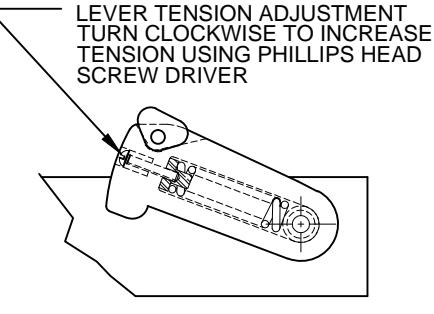

  • 5. 3760 CARRY BAR IS MOUNTED ON INACTIVE DOOR. WHEN THE INACTIVE DOOR OPENS, THE CARRY BAR OPENS THE ACTIVE DOOR UNTIL IT ENGAGES THE COORDINATOR HOLD OPEN LEVER.
  • 6. THE CARRY BAR IS NOT USED WHEN THE INACTIVE DOOR IS EQUIPPED WITH AUTOMATIC OR SELF-LATCHING FLUSH BOLTS.

INSTALLATION

3700-2-04.DWG

PAGE 2 OF 2

REVISED 09-02-16
