3628CS_9629CS_9630CS_9631CS_9850HD_9852HD Mullion Converging Kit – I-SD00402

Contents:	Qty:
1. Mullion Bracket	2	1. 2. 3.
2. Center Stop Bumpers	2	`
3. 1/4"-20 x 1-1/4" Hex Head Screw	2
4. 1/4"-20 Serrated Flange Locknut	2	4.
5. 1/4"-10 x 4" Lag Bolt	1	5.

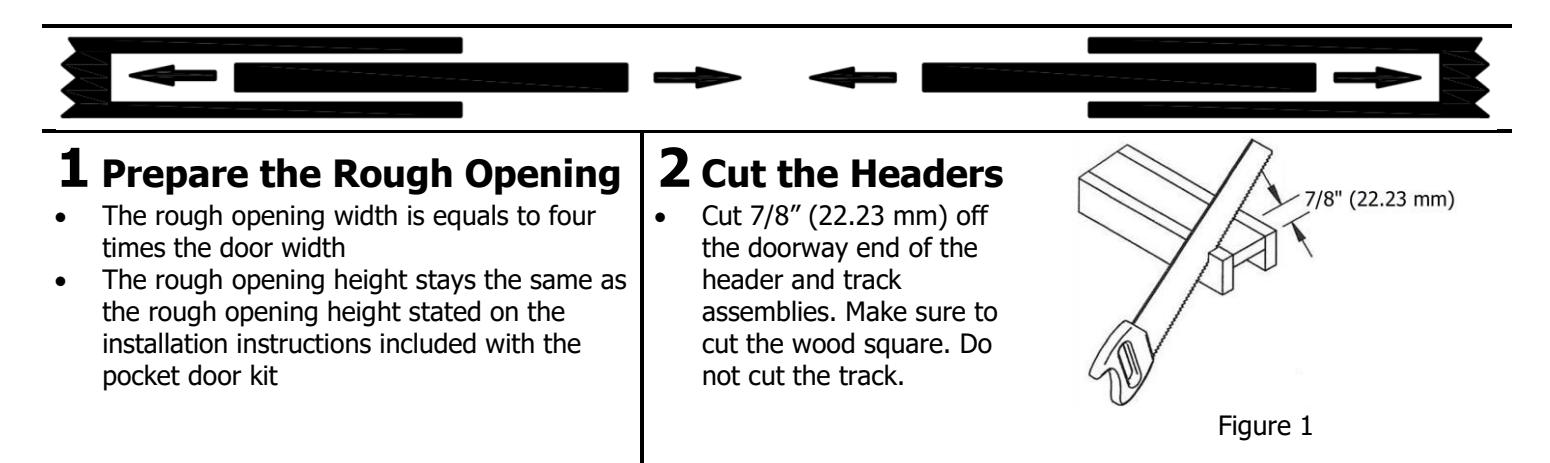

The Mullion Converging Kit allows two pocket door frames to make one large doorway

3 Combine the Two Headers

• Butt the sawed ends together
• Drill two 1/4" (4.76 mm) holes through the doorway side header using the mullion bracket's outer holes as a template. Make sure the mullion brackets are centered.
• Insert the two bolts included in this kit through the outer holes of the mullion brackets and the holes created earlier
• Insert the nuts included in this kit to the bolts and tighten. See Figure 2.

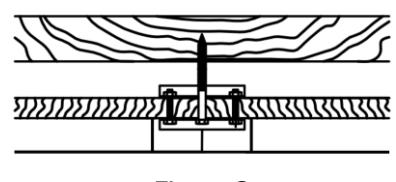

4 Hang the Combined Headers

Figure 3

• • Drill a 1/4" (6.35 mm) hole through the center of the mullion bracket where the doorway side headers meet.
• Hang the combined assembly.
• Insert the lag screw through the holes created earlier.
• Fasten the lag screw to the rough header.
• Adjust to level the header assembly. See Figure 3.

5 Finish

• Insert the center stop bumpers into the doorway end of the tracks. Leave them loose until the doors are hung.

Figure 4

• Proceed with the regular pocket door kit assembly instructions
