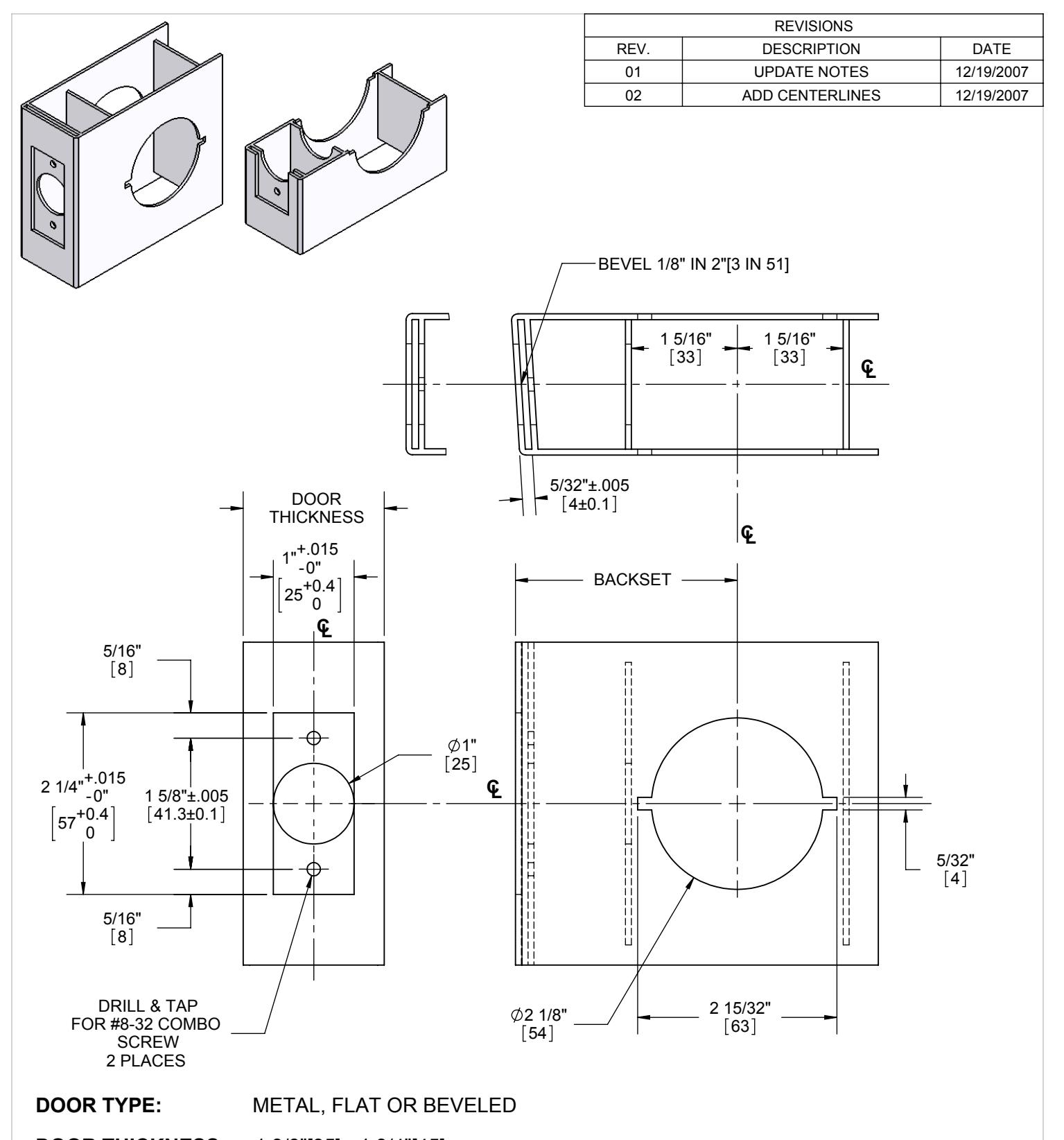

3600 Series Metal Door Template – T-LS00186-Rev02

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45]

FACEPLATE: SQUARE 1"[25] WIDTH

BACKSETS: ADJUSTABLE FOR 2 3/4"[70] OR 2 3/8"[60], 5"[127] OPTIONAL

DIMENSIONS IN [] ARE IN MILLIMETERS
