359306 5045 4 BALL BEARING HINGE

Open the original PDF document

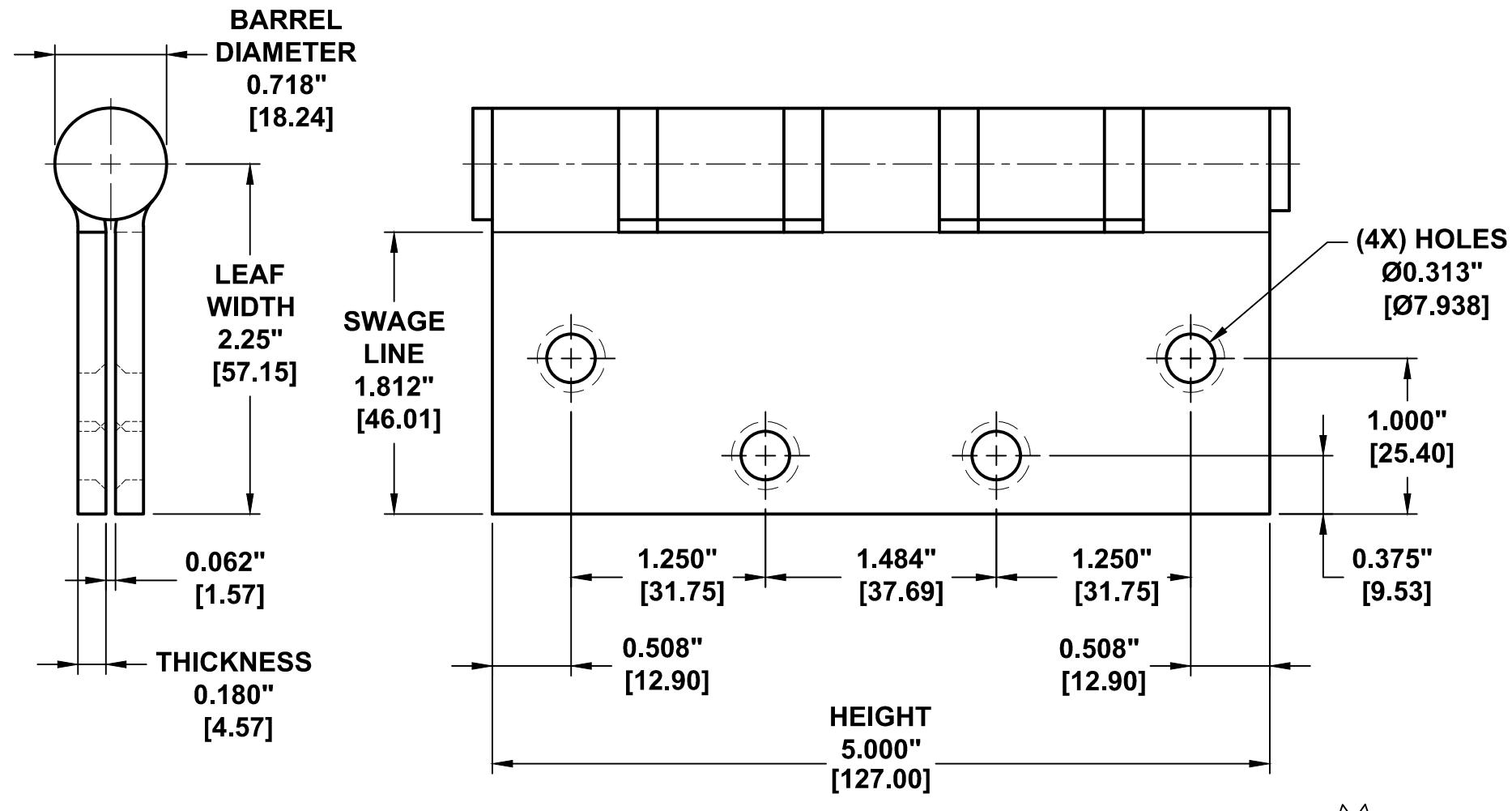

5045 4 BALL BEARING HINGE FULL MORTISE TEMPLATE 5" X 4-1/2" HEAVY DUTY HINGE MODELS

TEMPLATE: 359306 REV. 0 07-24-15

NOT TO SCALE

1. DIMENSIONS IN INCHES [MM]

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692

Fax: 717-656-6892 www.pdqlocks.com
