359305 4545 4 BALL BEARING HINGE

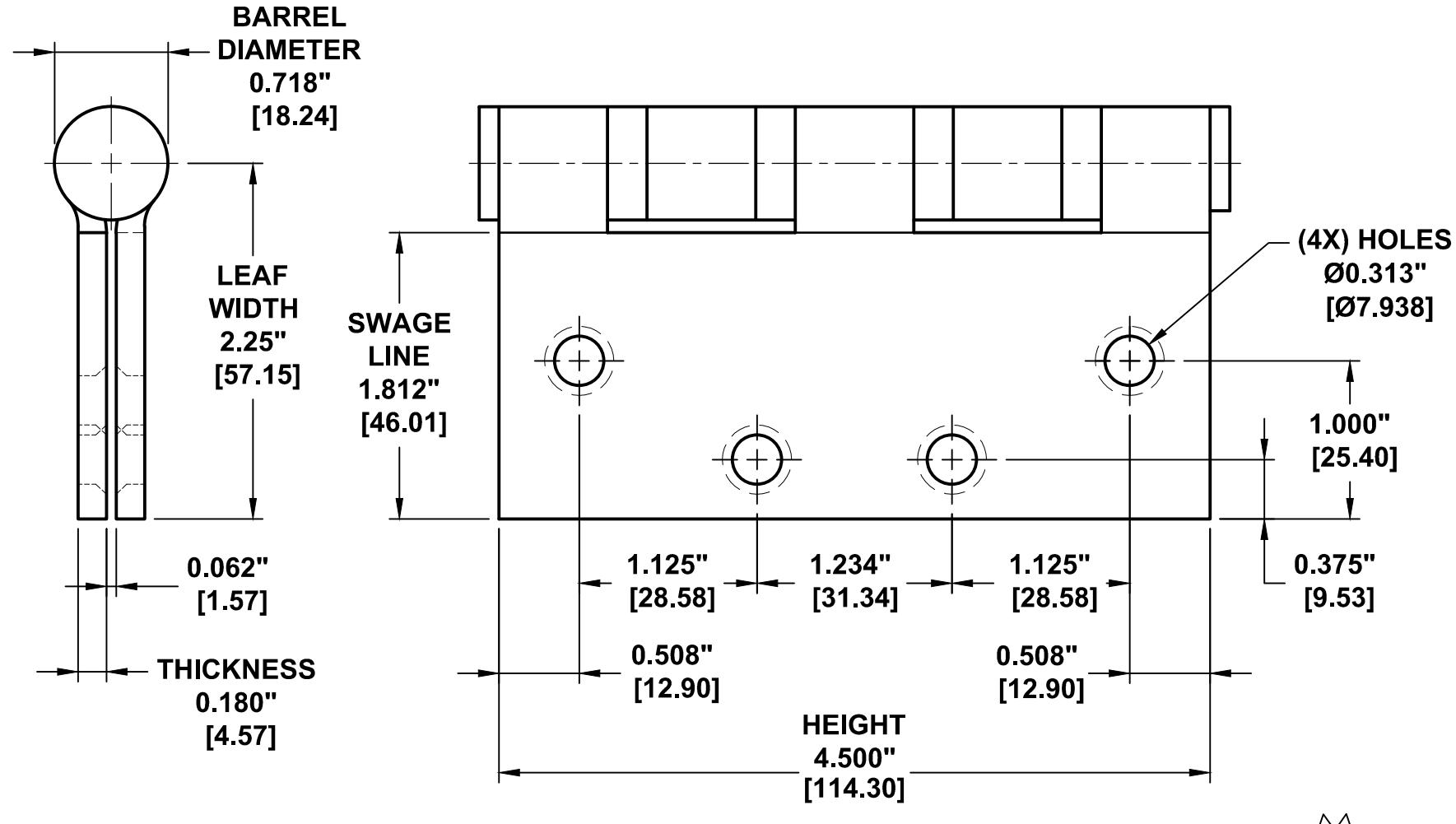

4545 4 BALL BEARING HINGE FULL MORTISE TEMPLATE 4-1/2" X 4-1/2" HEAVY DUTY HINGE MODELS

TEMPLATE: 359305 REV. 0 07-23-15

NOT TO SCALE

NOTES:

1. DIMENSIONS IN INCHES [MM]

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692

Fax: 717-656-6892 www.pdqlocks.com
