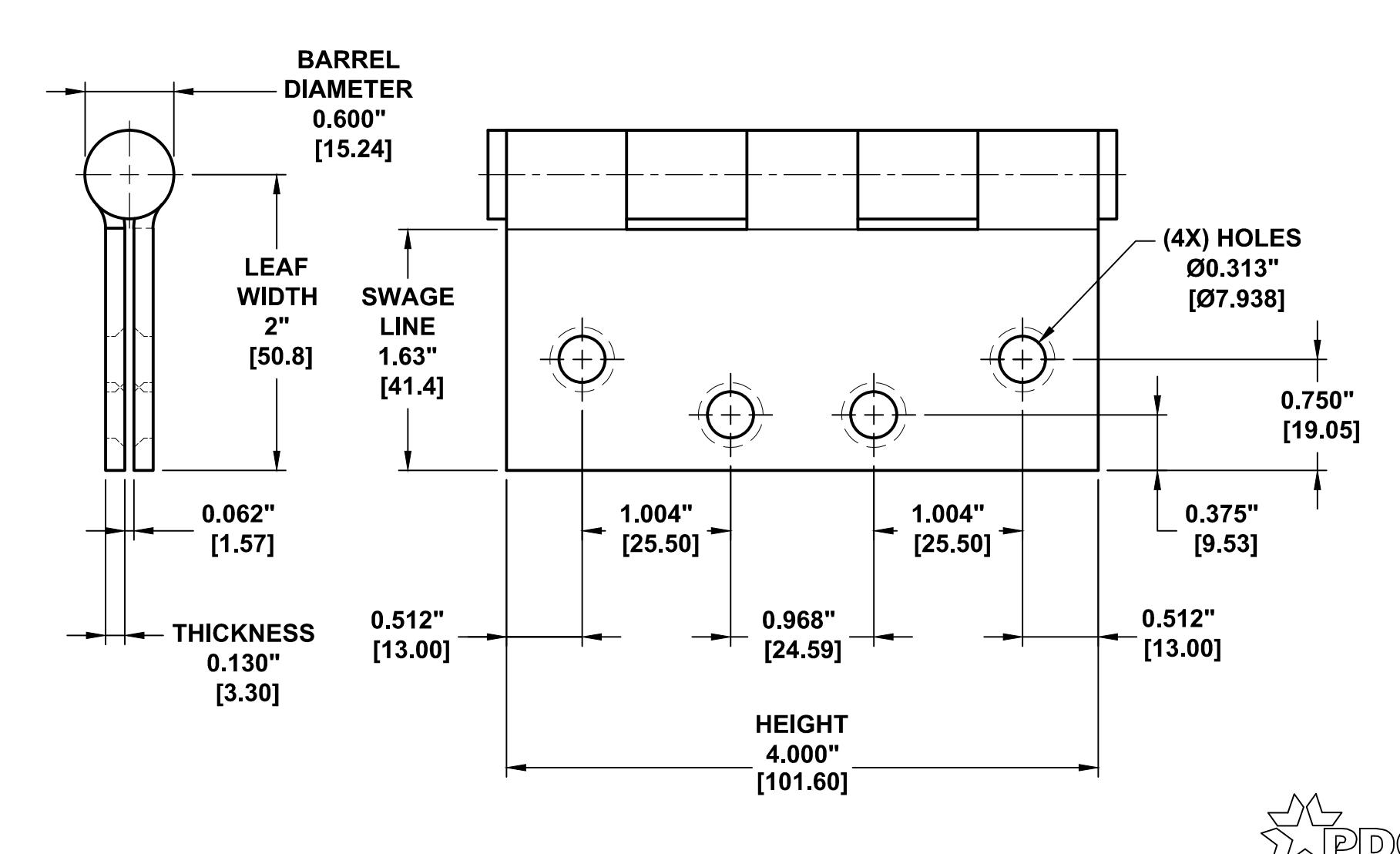

359301 4040 PLAIN BEARING HINGE

Open the original PDF document

View PDF

TEMPLATE: 359301 REV. 0 07-23-15

NOT TO SCALE

NOTES:

1. DIMENSIONS IN INCHES [MM]

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692

Fax: 717-656-6892 www.pdqlocks.com
