351 Series w P3 Arm x 1546-1549 or 597-599 Holders & Stops
Open the original PDF document
View PDF
4. FOR THIN RAIL DOORS, USE 351-D DROP PLATE, SEE TEMPLATE A6745.
5. LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.
SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

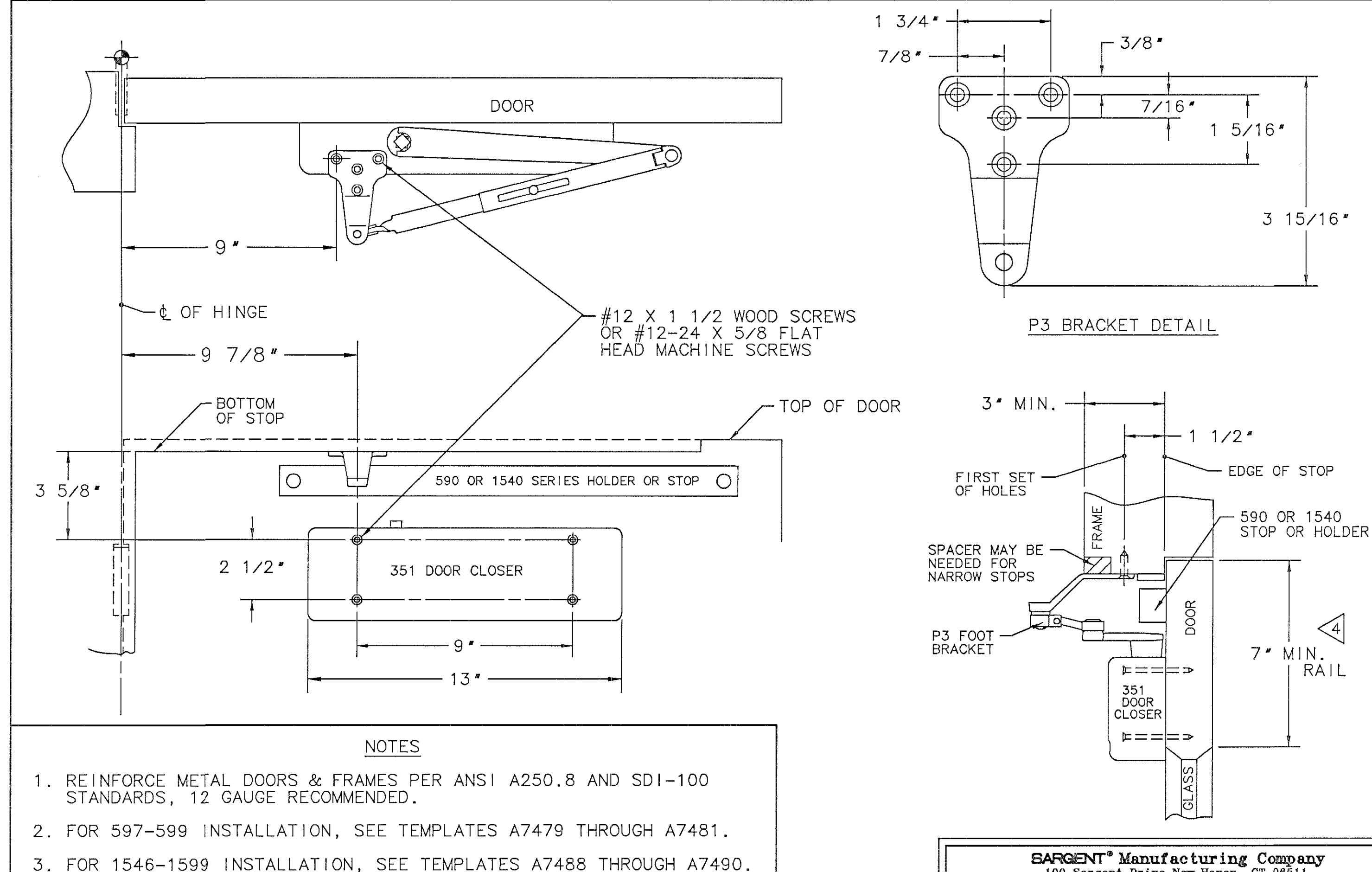

DATA SHEET: 351 CLOSER WITH A P3 PARALLEL ARM & 1546-1549 OR 597-599 SERIES HOLDER/STOP
RELEASE DATE APRIL 02
TEMPLATE NO. A7536 B
