351 Series Closer x Standard Application ‘O’ Arm x 697-699 or 1536-1539 Series Holders & Stops

NOTES

• 1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED.
• 2. INSTALL 690 HOLDER/STOP BEFORE CLOSER.

FOR 697-699 INSTALLATION, SEE TEMPLATES A7482 - A7484

FOR 1530 INSTALLATION, SEE TEMPLATES A7485 - A7487

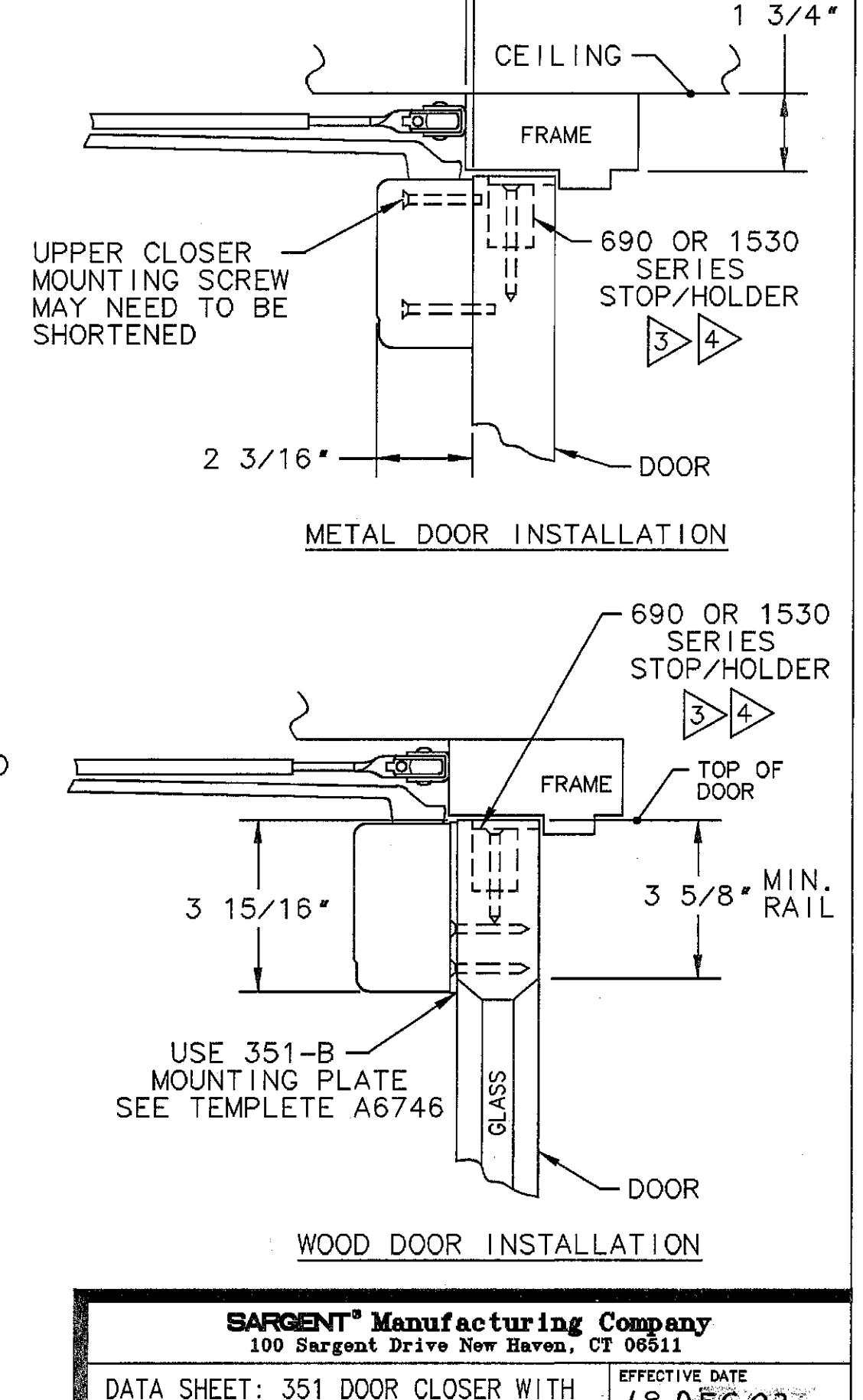

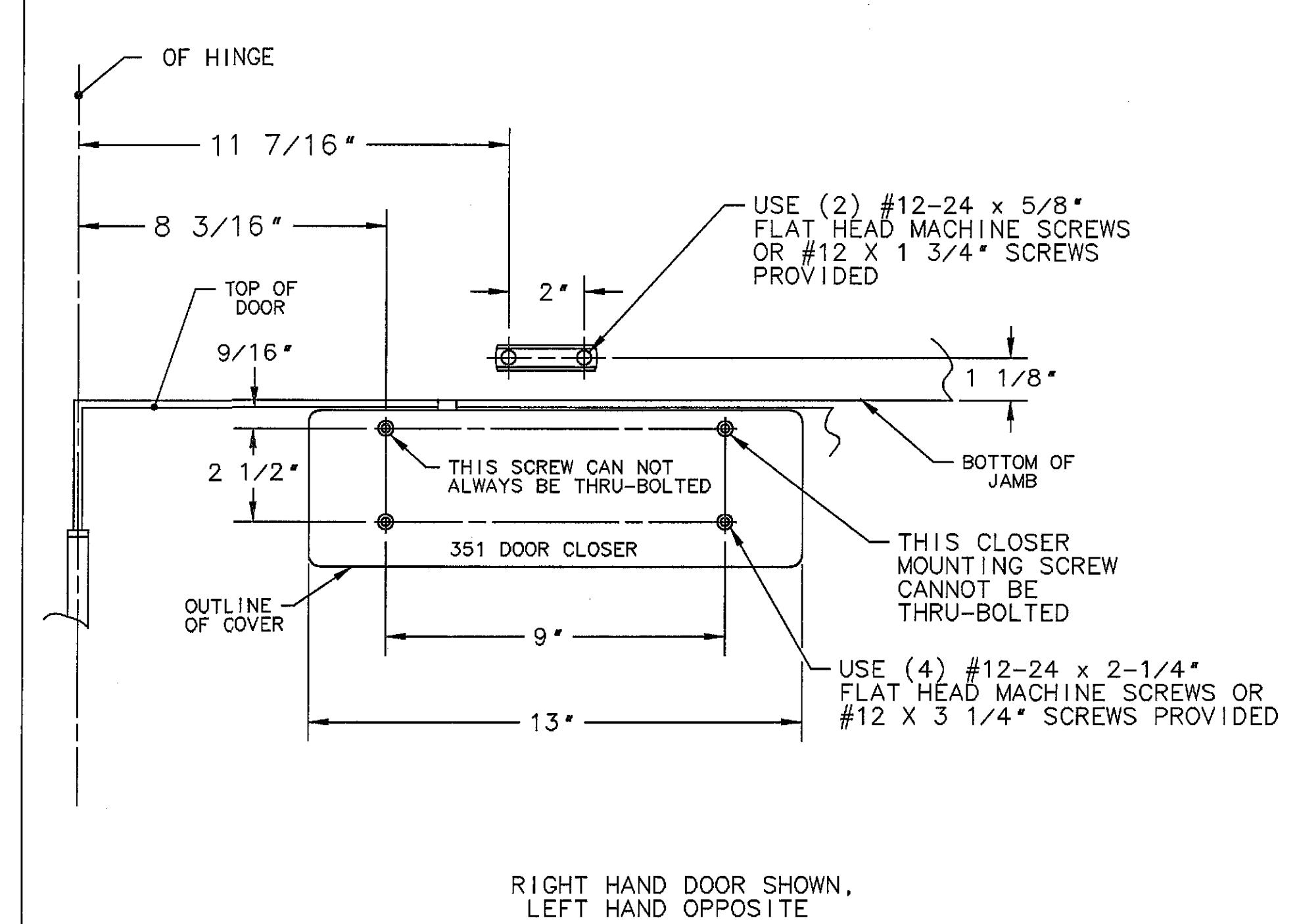

STANDARD APPLICATION O ARM AND

690 OR 1530 SERIES HOLDER OR STOP

18 DEC 03

A7532 C

TEMPLATE NO.

7/16 * MAX --
