351 Series Closer x Standard Application ‘O’ Arm x 1547-1549 Holders & Stops

Open the original PDF document

1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED.
2. FOR THIN RAIL DOORS, USE 351-D DROP BRACKET SEE TEMPLATE A6745.
3. FOR 1546-1549 INSTALLATION, SEE TEMPLATES A7488 A 7490.

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

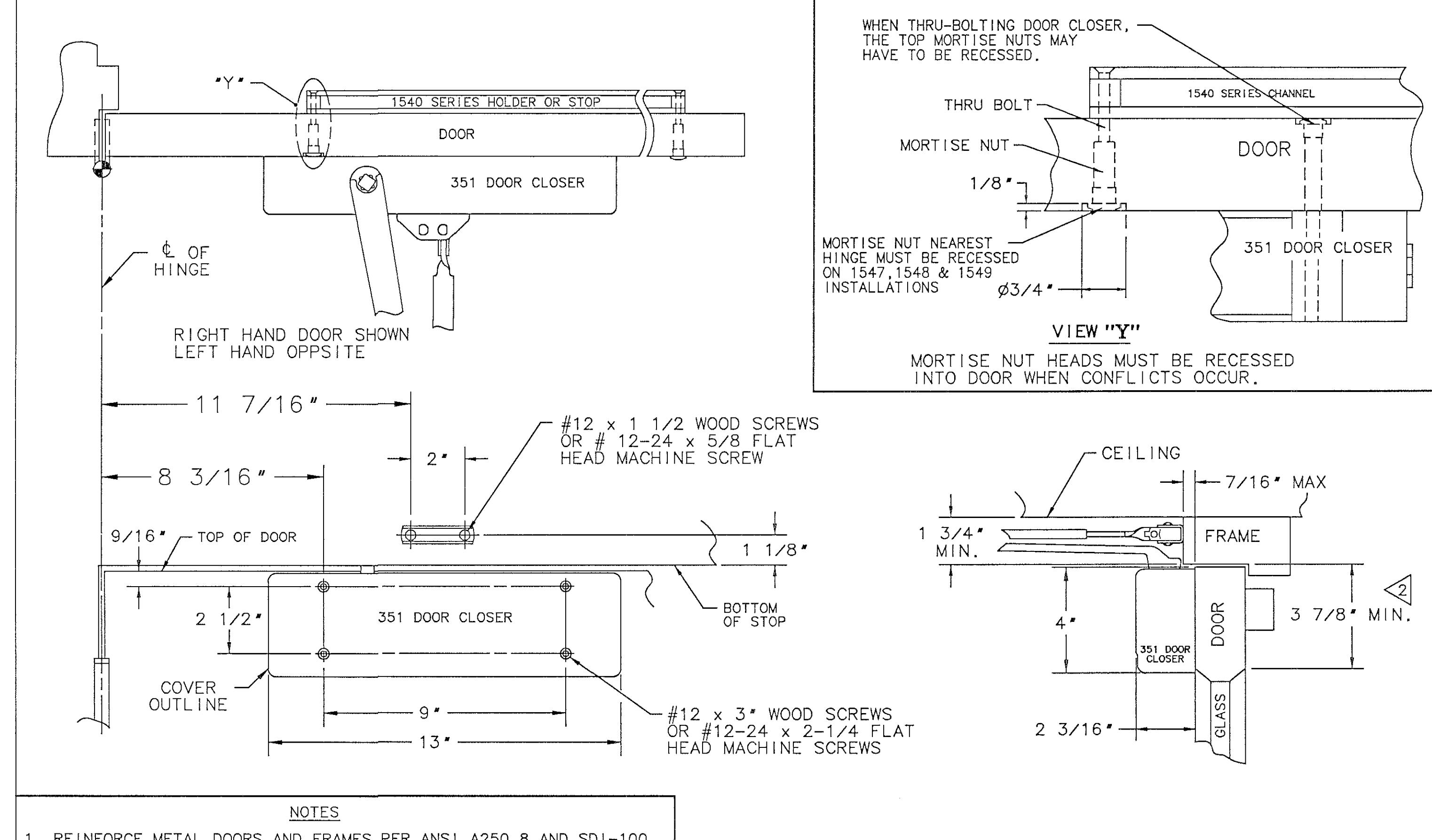

DATA SHEET: 351 SERIES CLOSER WITH STANDARD APPLICATION "O" ARM AND 1546-1549H,S,F SERIES HOLDER/STOP

EFFECTIVE DATE APRIL 02

TEMPLATE NO.

A7534 B
