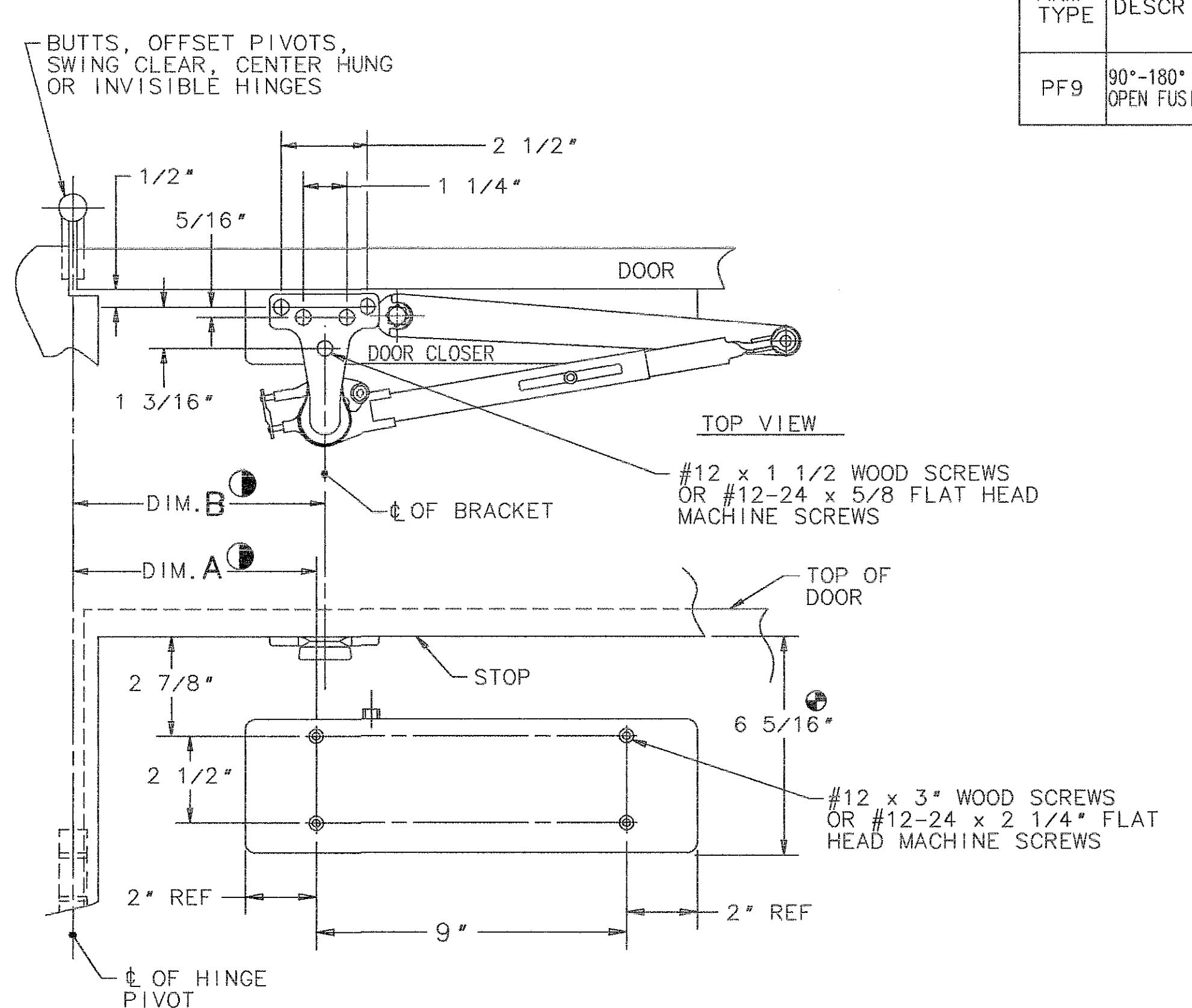

351 Series Closer x PF9 Parallel Arm Application

IMPORTANT: USE ALTERNATE MOUNTING IF DOOR CAN OPEN BEYOND LIMITS SHOWN FOR STANDARD MOUNTING ALTERNATE MOUNTING STANDARD MOUNTING ARM DESCRIPTION TYPE DIM. DIM. MAX. DOOR DIM. DIM. MAX. DOOR OPENING В OPENING 190°-180° HOLD 9 7/8" 10 1/8" 110° 7 " 7 1/4" 180° OPEN FUSIBLE LINK

• SPACE REQURED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN SHOWN USE 351-D DROP BRACKET. (SEE DATA SHEET A6745).
• 3-THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
• 2)— LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.
• 12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

製 グロコー・コンス また えんきゅん かしょかたい しんしょう しんしん かんだい たんだい だい
SARGENT MANUFACTURING COMPANY	NEW HAVEN, CONN. 06511
DATA SHEET: 351 SERIES CLOSER x PARALLEL ARM	OCT 00
APPLICATION-PF9 ARM	TEMPLET NO. A6766 C
