351 Series Closer x ‘P9 & PH9’ Parallel Arm Application

• SPACE REQUIRED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN SHOWN USE 351-D DROP BRACKET. (SEE DATA SHEET A6745)
• 3-THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
• (2) LEFT HAND DOOR SHOWN. RIGHT HAND OPPOSITE.
• 1-12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

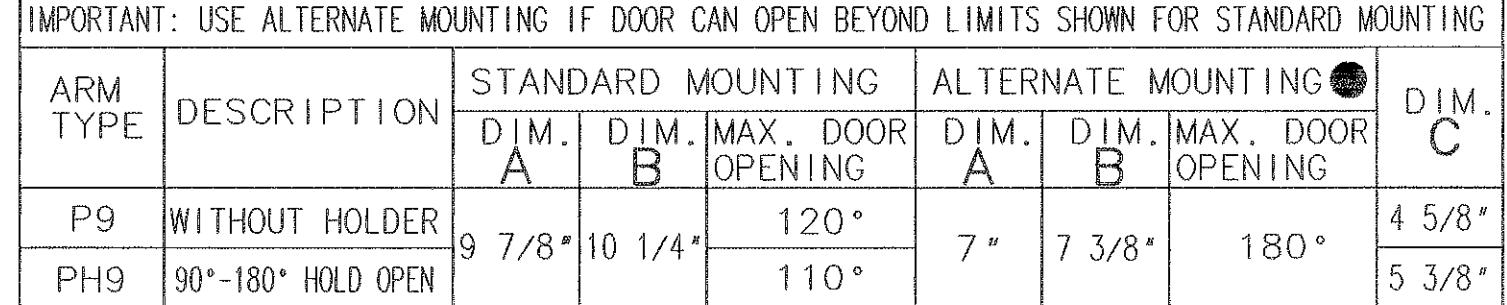

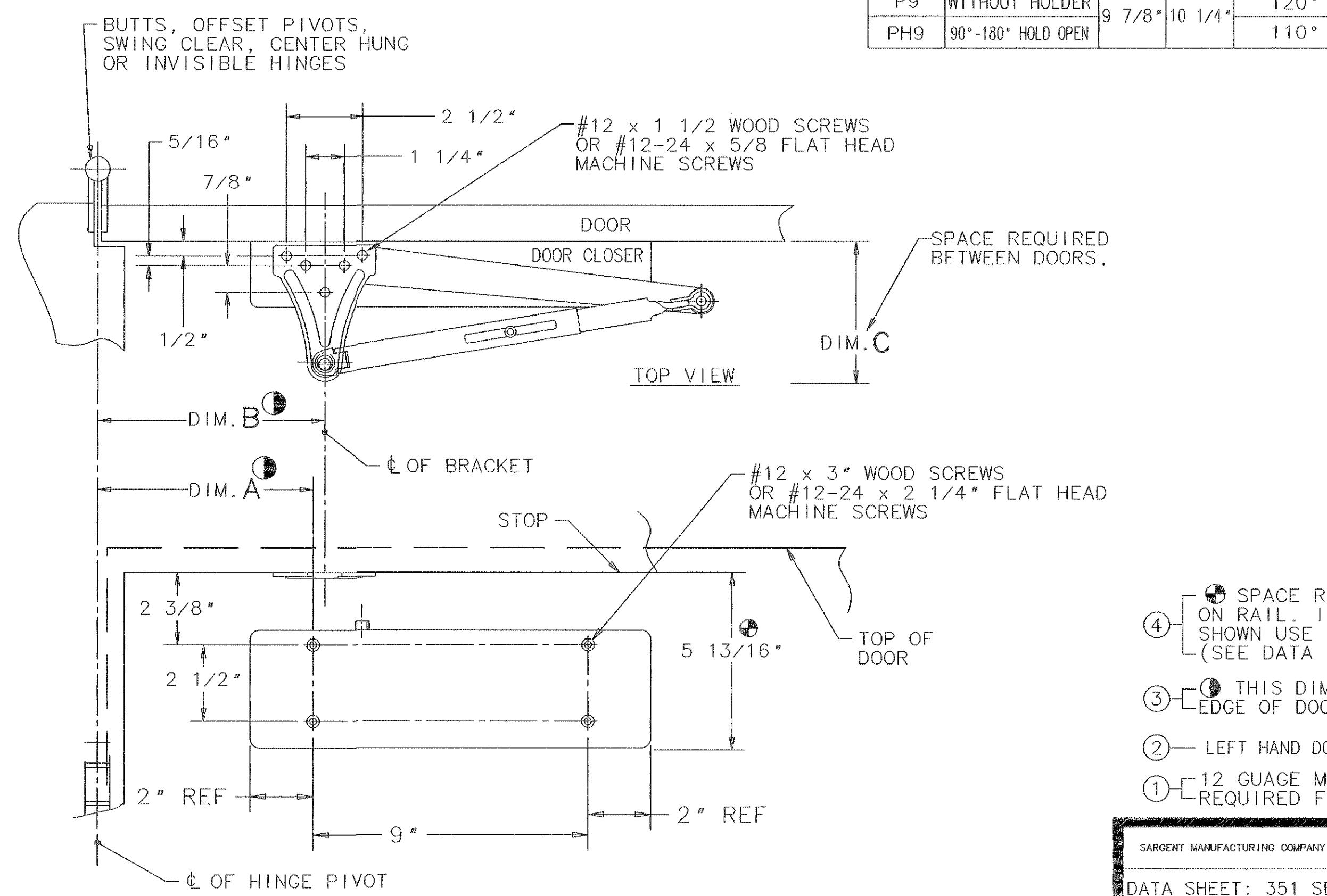

DATA SHEET: 351 SERIES CLOSER × PARALLEL ARM APPLICATION-P9 & PH9 ARMS

SFPT 99

NEW HAVEN, CONN. 06511

TEMPLET NO.

A6765 E
