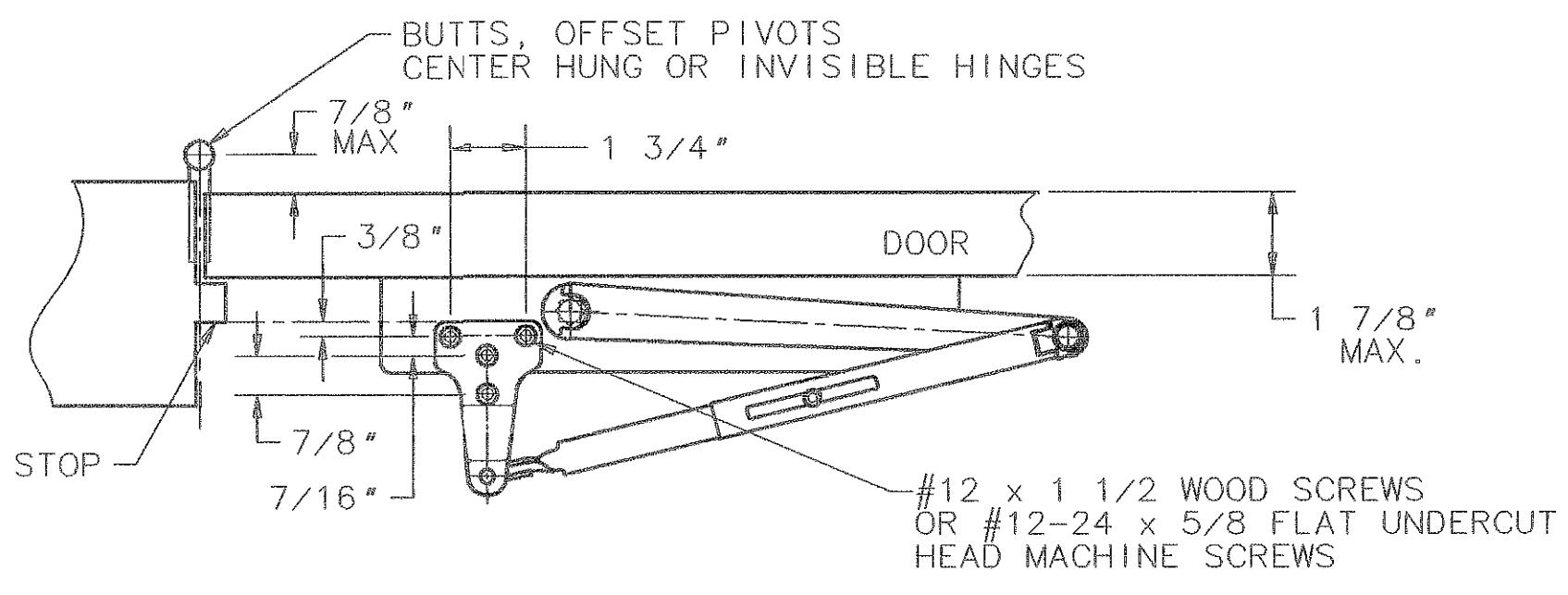

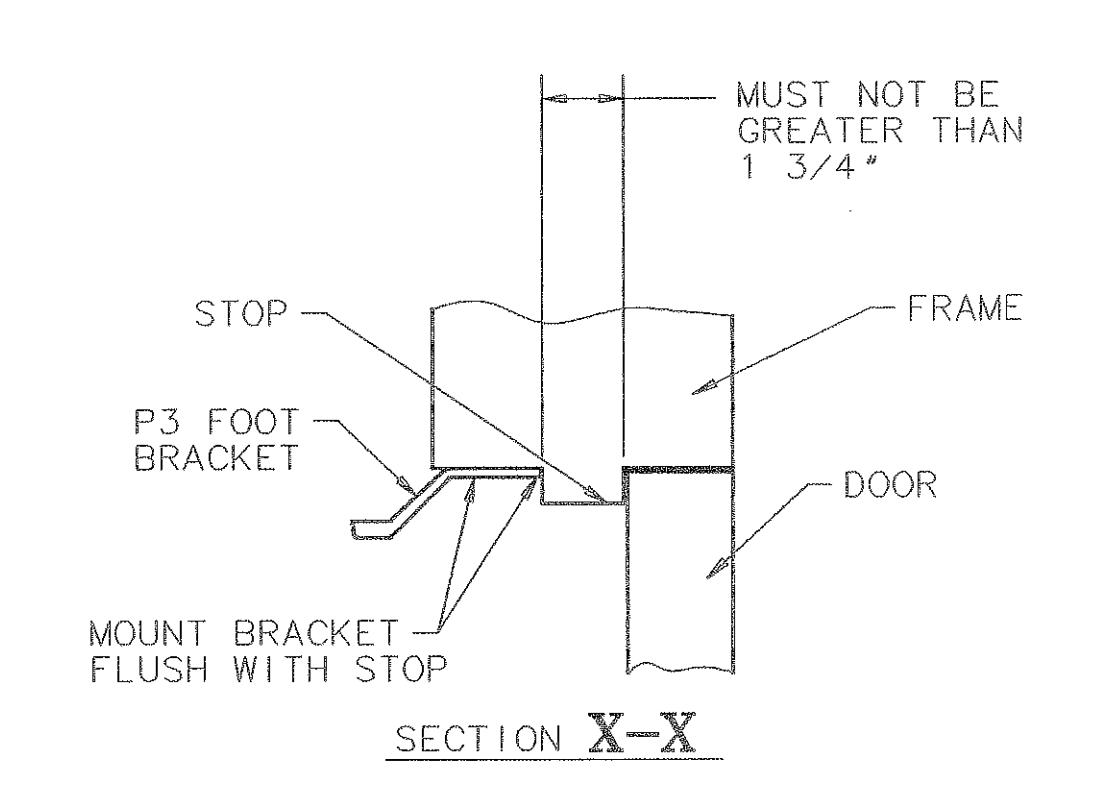

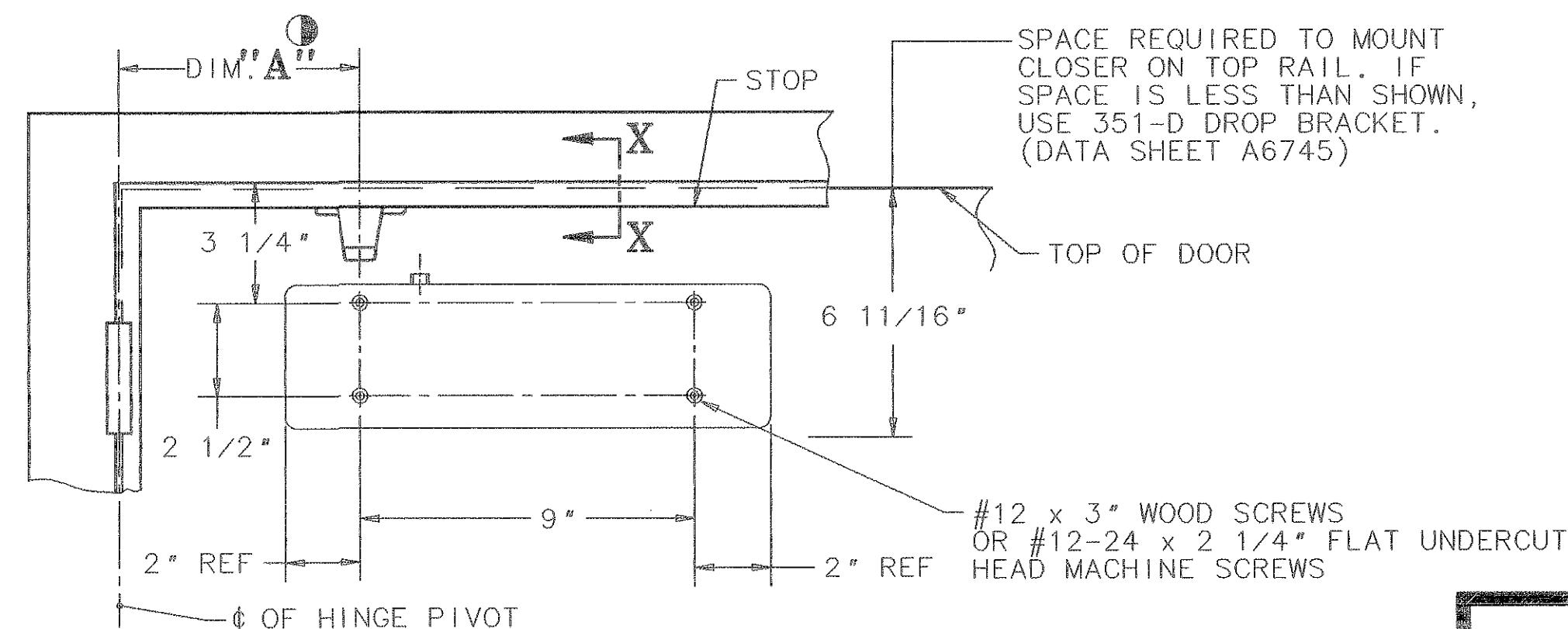

351 Series Closer x P3 Arm for Door Frame with Narrow and-or Unreinforced Stop

(2)— LEFT HAND DOOR SHOWN. RIGHT HAND OPPOSITE.

12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

SARGENT MANUFACTURING COMPANY

NEW HAVEN, CONN. 06511

DATA SHEET: 351 SERIES CLOSER WITH TYPE P3 ARM × DOOR FRAME WITH NARROW AND/OR UNREINFORCED STOP

SEPT. 99

TEMPLET NO.

A6768 C
