351 Series Closer x ‘OLC’ Standard Arm Application
Open the original PDF document

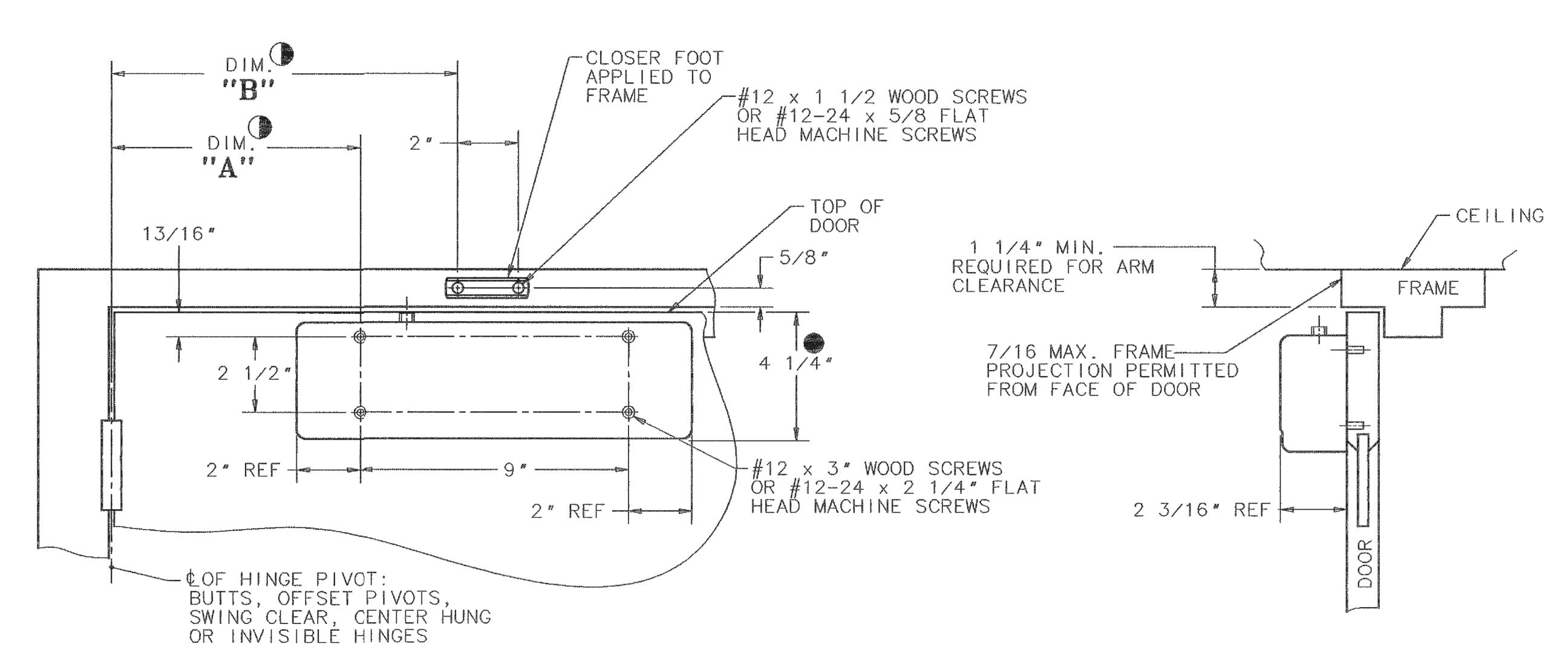

View PDFINSTALLATION INSTRUCTIONS FOR 351 SERIES CLOSURE AND STANDARD ARMS APPLICATION
OLC ARM
FOR INSTALLATION ASSISTANCE, CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com
|
ARM
TYPE |
DESCRIPTION | MOUNTING | DIM. A | DIM. В |
MAXIMUM DOOR
OPENING |
|---|---|---|---|---|---|
| "OLC" | REGULAR ARM | STANDARD | 8 3/16" | 11 7/16 ″ | 120° |
| ALTERNATE | 6 13/16 " | 10 1/16" | 160° 👄 |
