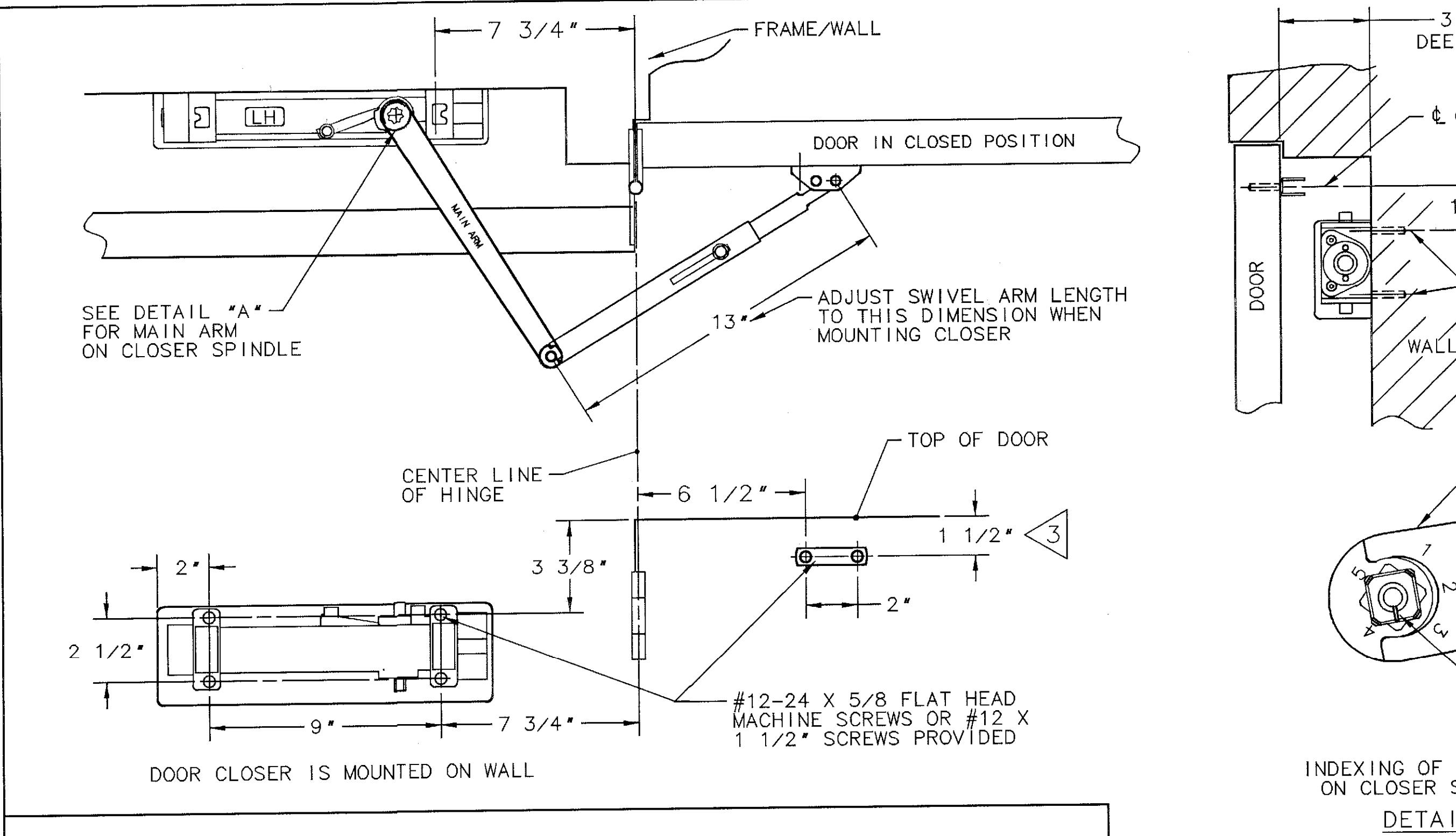

351 Series Closer x ‘O’ Arm (Pocket Mounting Application)

Open the original PDF document

NOTES

1. 12 GAUGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES/WALLS.
2. RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE

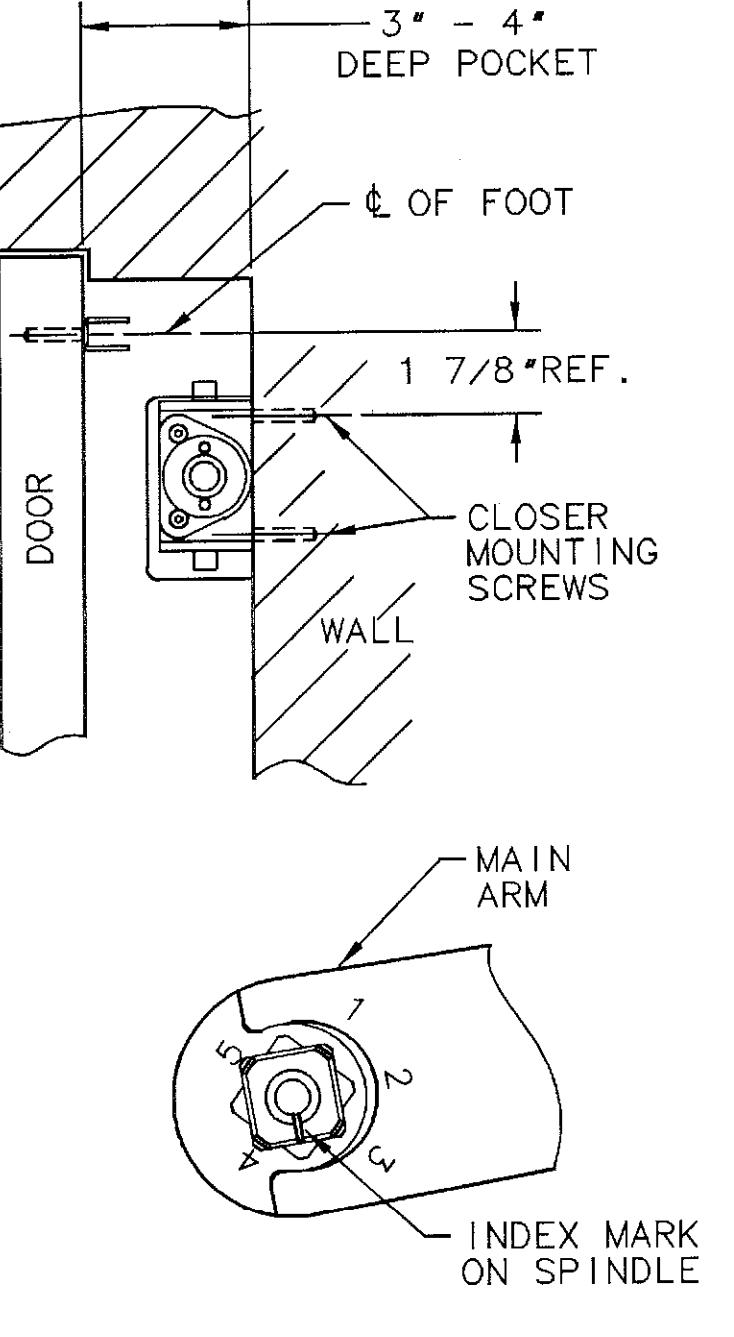

INDEXING OF MAIN ARM ON CLOSER SPINDLE DETAIL A

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DATA SHEET: 351-OP WALL POCKET DOOR CLOSER INSTALLATION

EFFECTIVE DATE 10 Aug 05 TEMPLET NO.

A7414 B
