351 Series Closer x Double Egress ‘OD & HD’ Arms
Open the original PDF document
View PDF| DESCRIPTION | 1 A DAA - 1 VIJE ! | MAXIMUM E | OOR OPENING | RANGE OF |
|---|---|---|---|---|
| WITH BUMPER | WITHOUT BUMPER | HOLD OPEN | ||
| REGULAR ARM | OD | 120° | 160°⊖ | |
| HOLDER ARM | HD | 120° ⊝ | 160°⊖ | 85° TO 120° |
NOTES:

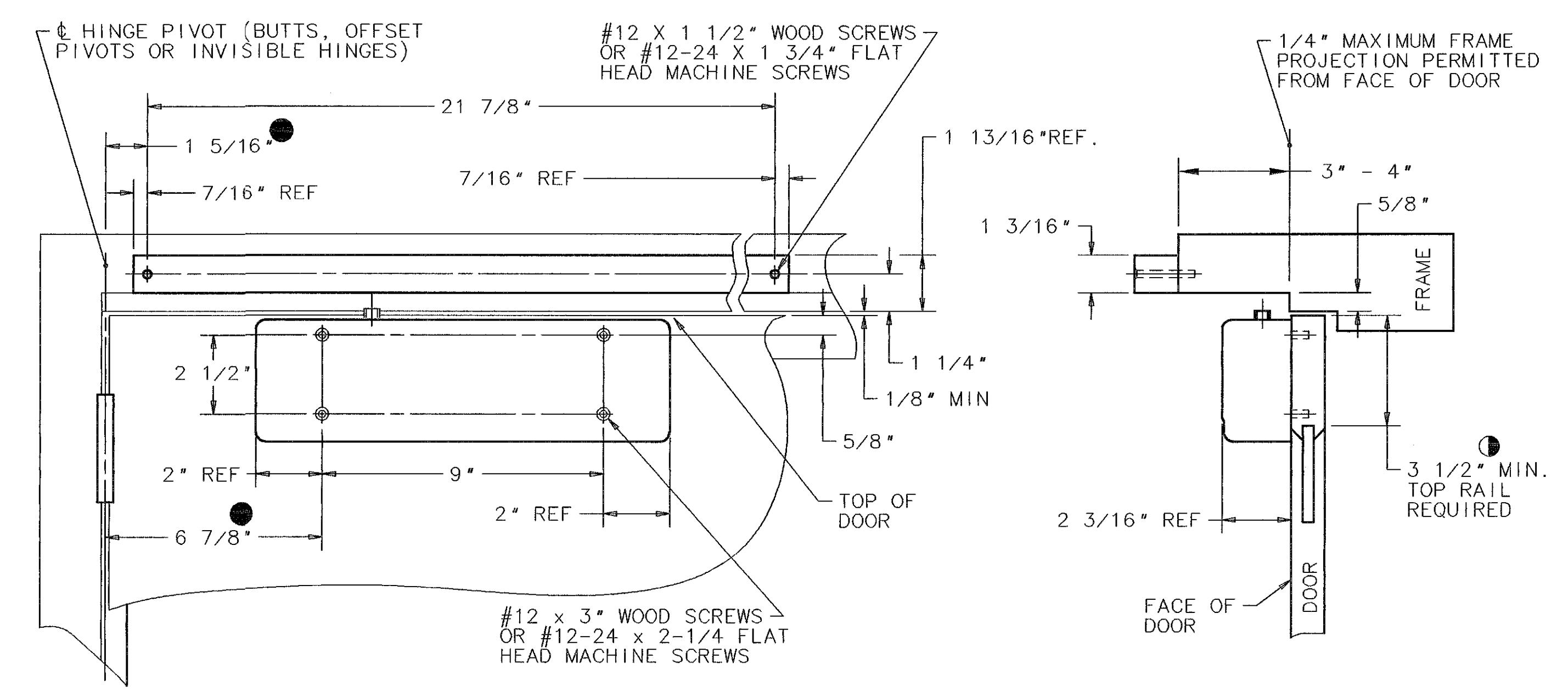

- 1. RIGHT HAND DOOR SHOWN, LEFT HAND DOOR OPPOSITE.
- 2. 12 GAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES.
- 3. THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGRS.
- 4. TO OPEN DOOR 120° REMOVE BUMPER STOP.
- 5. IF DOOR AND FRAME CONDITION PERMIT.
- 6. SPACE REQUIRED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN SHOWN USE DATA SHEET A6772 FOR DETAILS.
