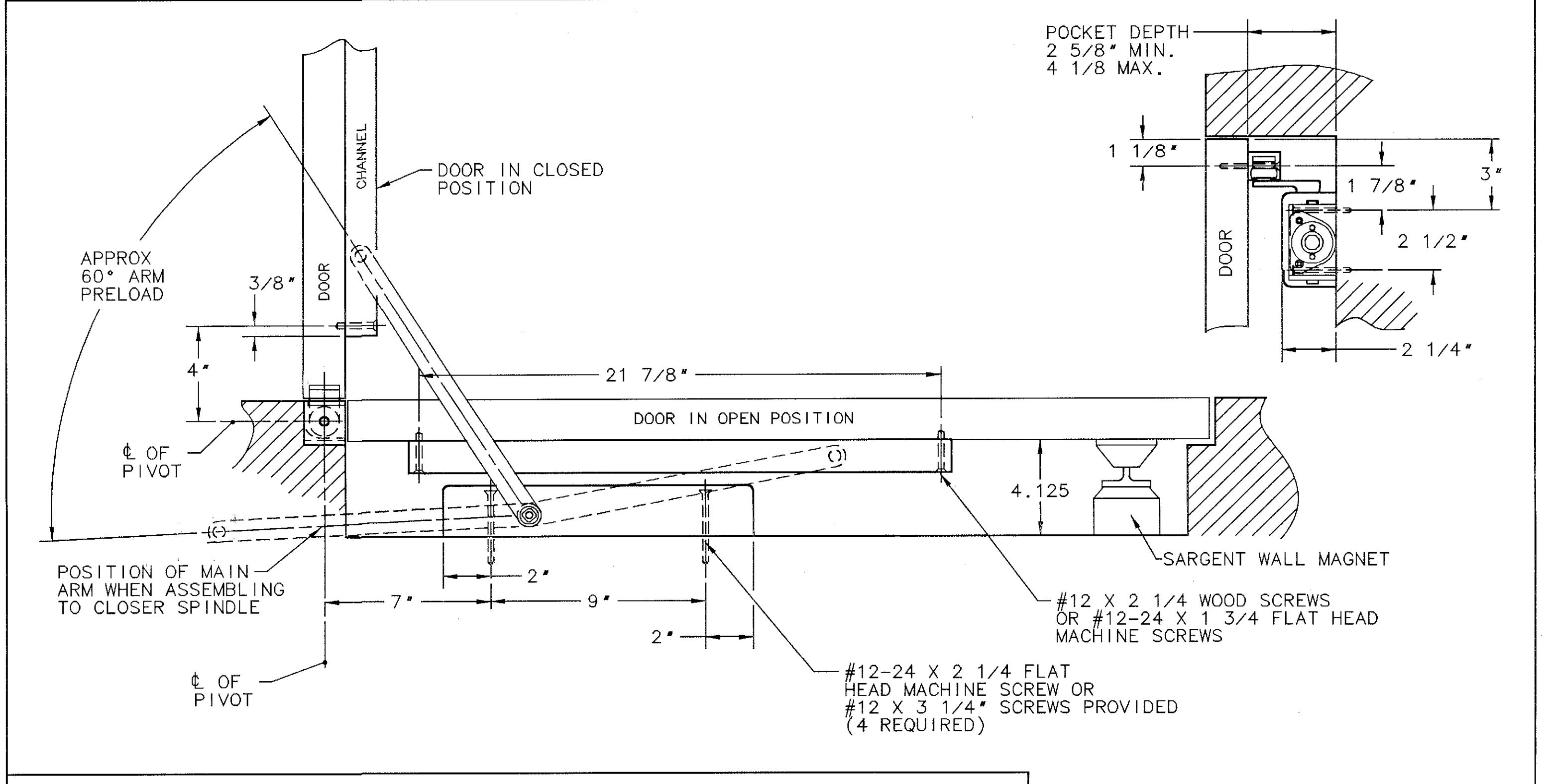

351-OTP Series Door Closer Application With Pocket Pivot And Wall Magnet
Open the original PDF document
View PDF
NOTES:
- 1. REINFORCE METAL DOORS & FRAMES PER ANSI A250.8 AND SDI-100 STANDARD, 12 GAUGE RECOMMENDED.
- 2. RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE
SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511
DATA SHEET: 351-OTP SERIES DOOR CLOSER WITH POCKET PIVOT AND WALL MAGNET
EFFECTIVE DATE O Pug 05 TEMPLATE NO.
TEMPLATE NO. A7634 A
