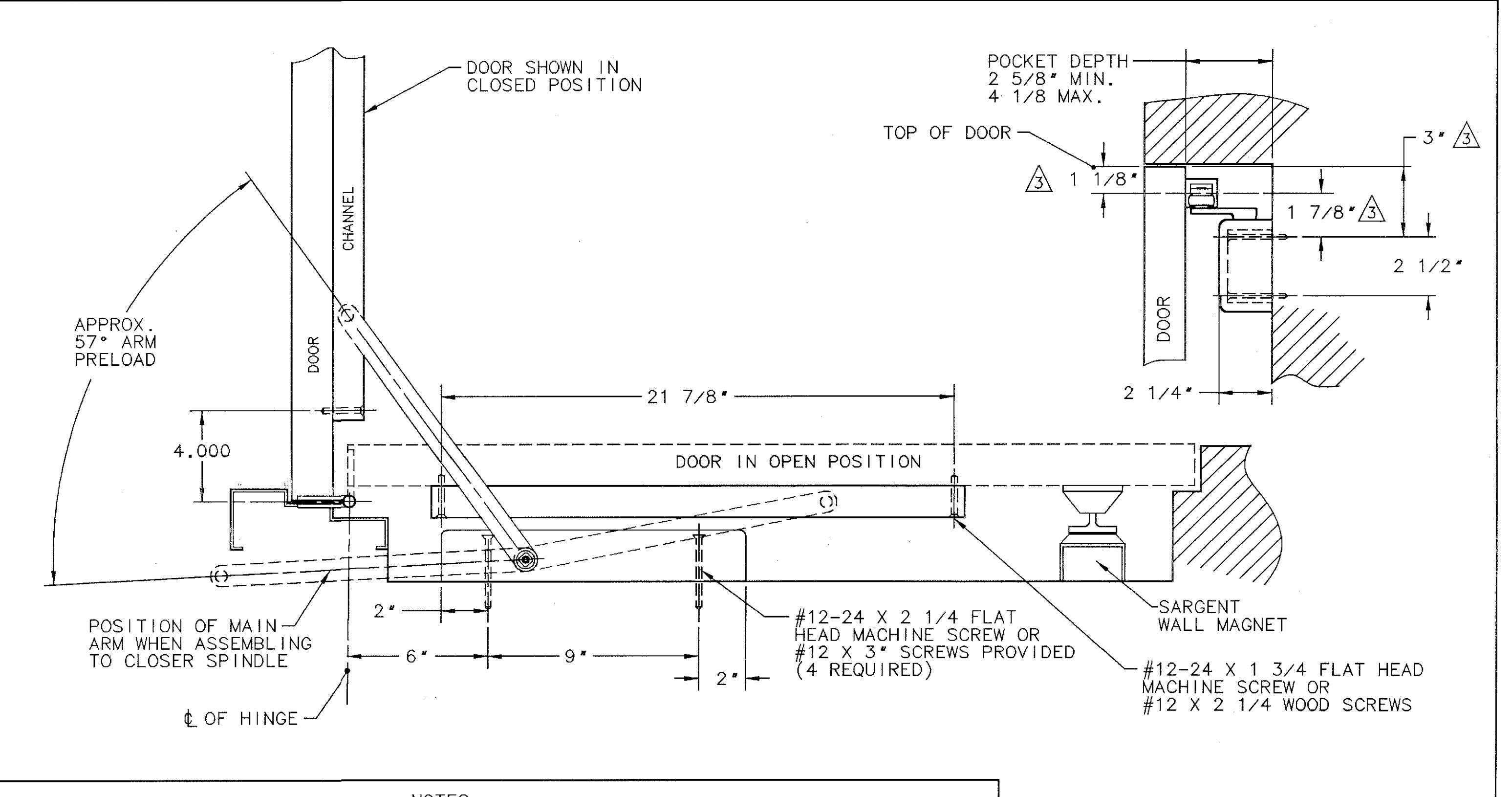

351-OTP Series Door Closer Application With Butt Hinge And Wall Magnet

NOTES:

• 1. REINFORCE METAL DOORS & FRAMES PER ANSI A250.8 AND SDI STANDARDS, 12 GAUGE RECOMMENDED.
• 2. RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE
• 3. CLOSER AND CHANNEL MAY BE LOWERED ON DOOR AND WALL TO SUIT SPECIFIC CONDITIONS PROVIDING THAT THE RELATIVE POSITION OF THE CLOSER AND CHANNEL REMAINS THE SAME.

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DATA SHEET: 351-OTP SERIES DOOR CLOSER WITH BUTT HINGES AND SARGENT WALL MAGNET

EFFECTIVE DATE O AUO 05 TEMPLATE NO. A7631 A
