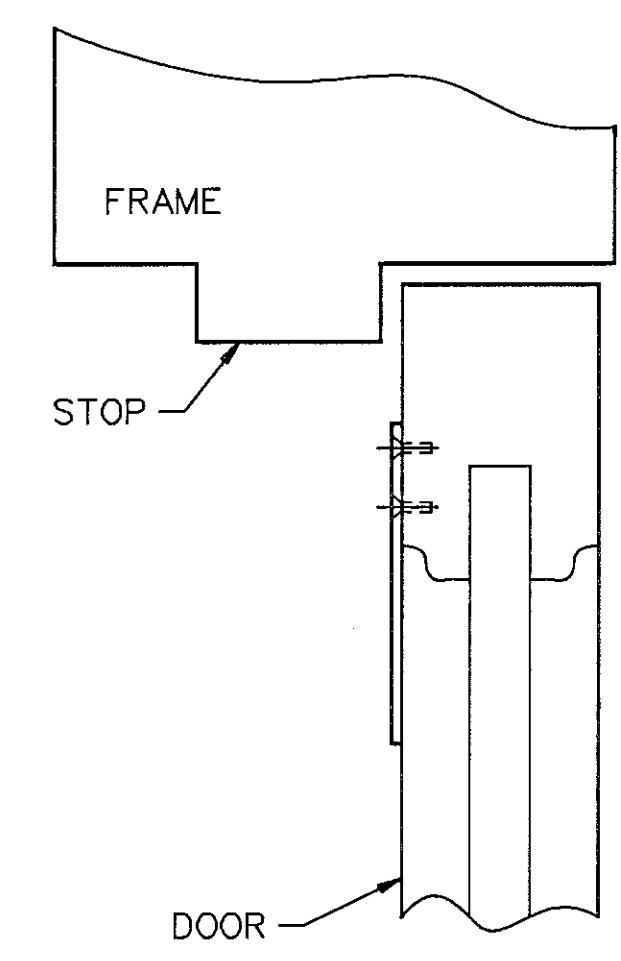

351-D Drop Bracket (Parallel Arm Application)

2- 12 GUAGE MIN. REINFORCEMENTS REQUIRED FOR METAL DOORS AND FRAMES.

1 REFER TO DOOR CLOSER DATA SHEET FOR POSITION OF CLOSER ON DOOR.

DATA SHEET

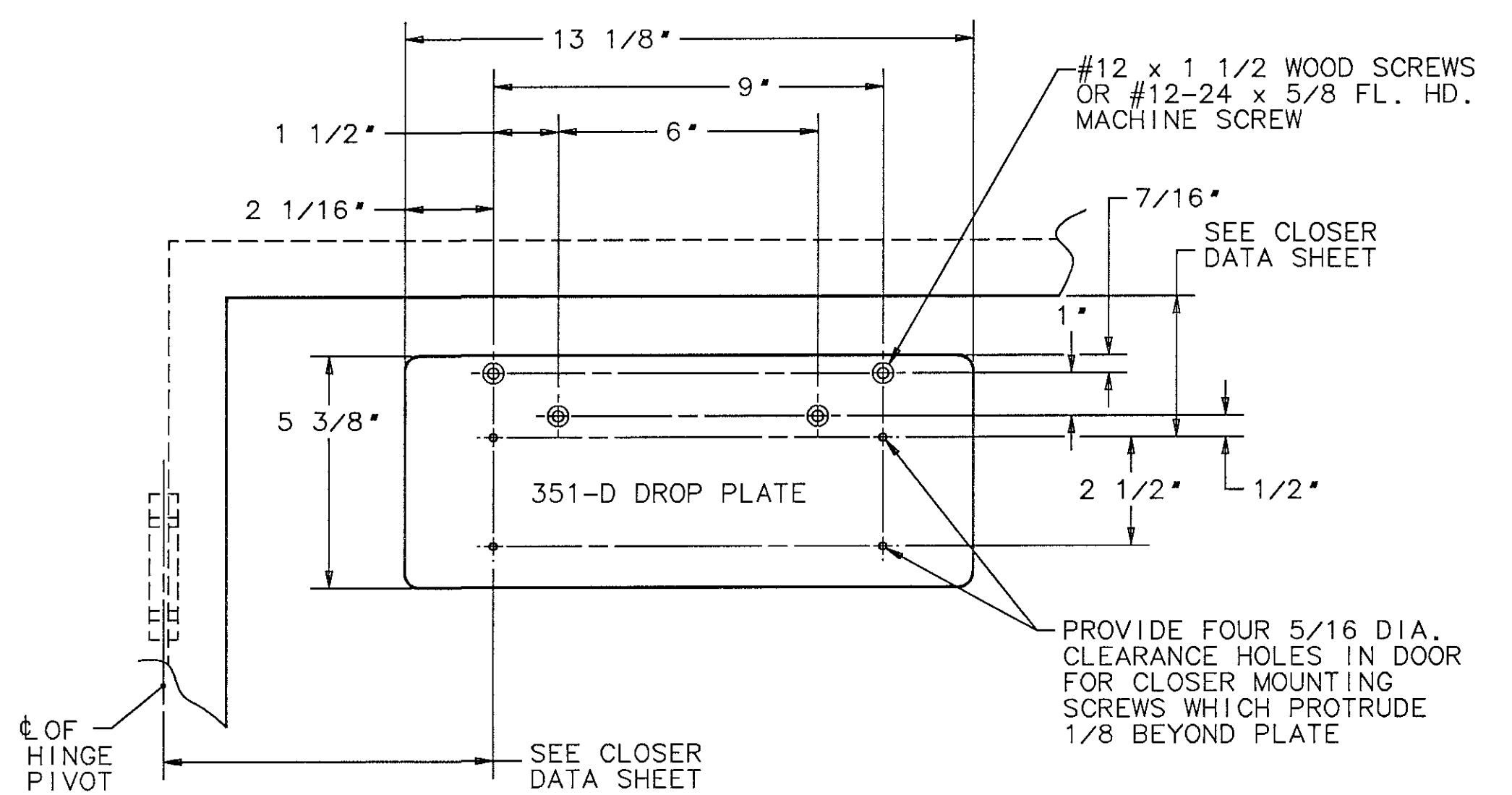

351-D DROP PLATE x PARALLEL ARM APPLICATION

NEW HAVEN, CONN. 06511

EFFECTIVE DATE SEPT. 99

TEMPLET NO. A6745 B
