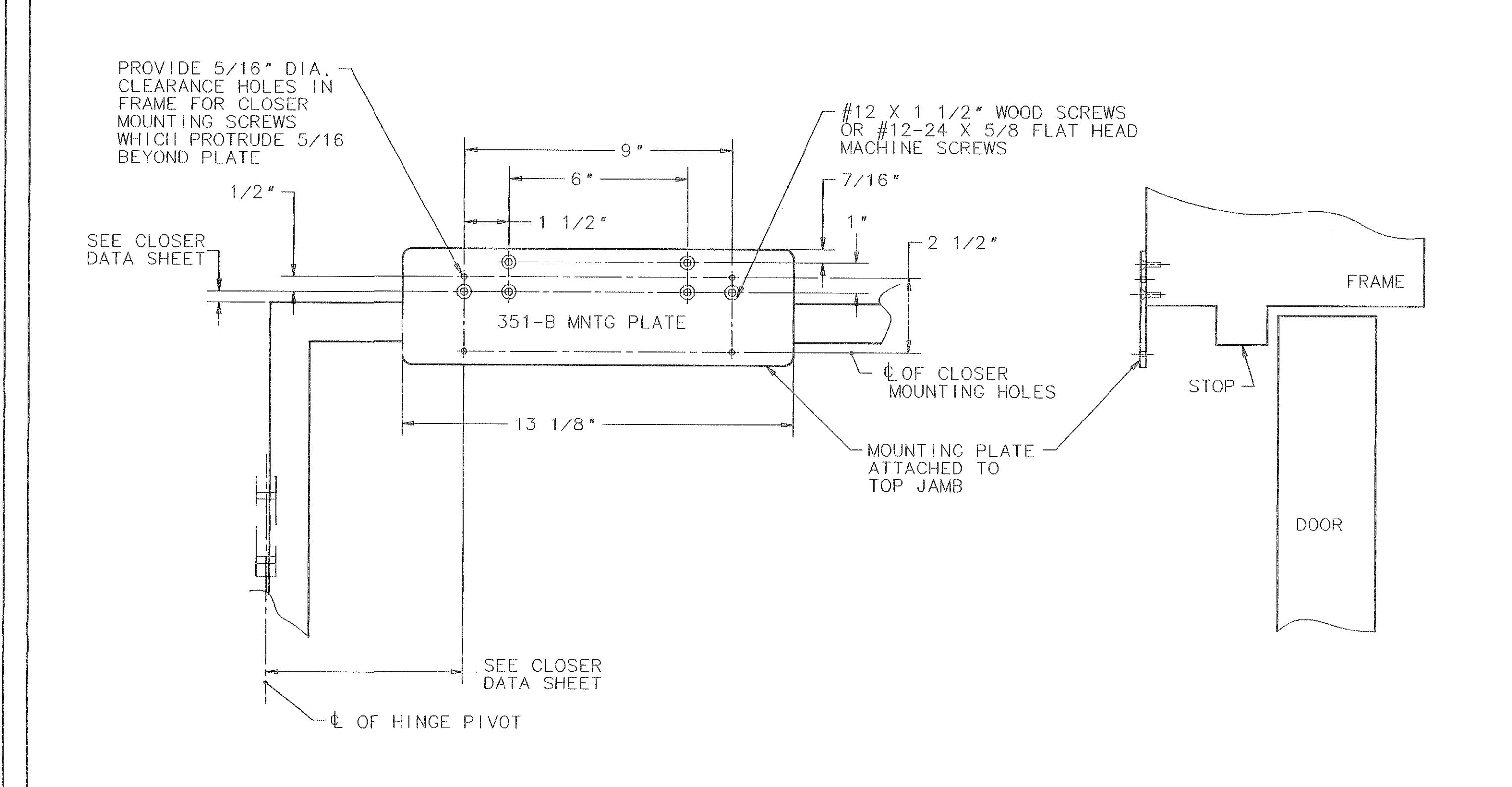

351-B Mounting Plate (Top Jamb Application)

2-L 12 GUAGE MIN. REINFORCEMENTS REQUIRED FOR METAL FRAMES.

1- REFER TO DOOR CLOSER DATA SHEET FOR POSITION OF CLOSER ON DOOR OR FRAME.

SARGENT MANUFACTURING COMPANY

NEW HAVEN, CONN. 06511

DATA SHEET: 351-B MOUNTING PLATE x TOP JAMB APPLICATION

SEPT.99

A6746 B
