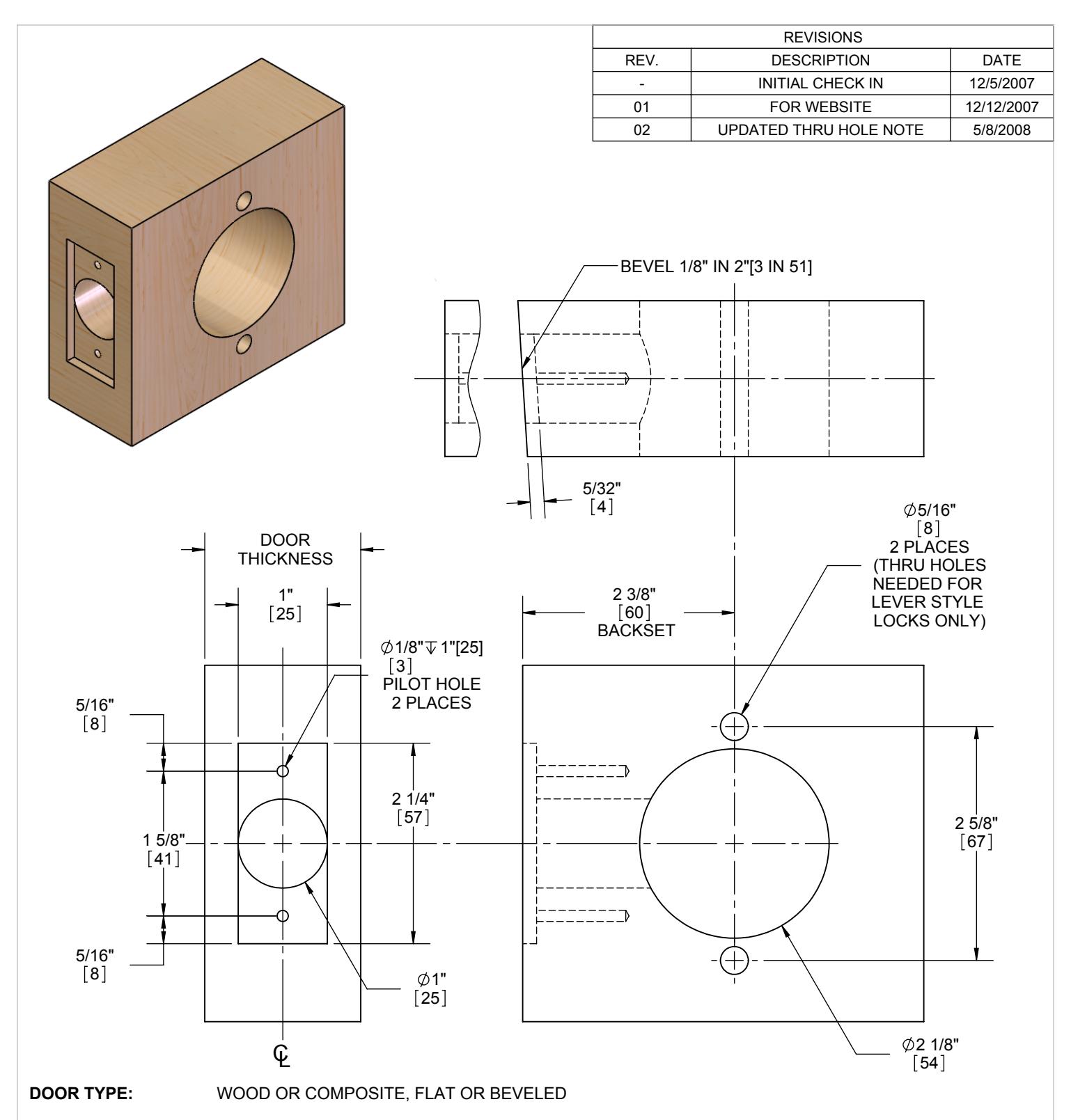

3500 Series Wood Door Template 2-3-8in BS – T-LS00147-Rev02

DOOR THICKNESS: KNOB 1 3/8"[35] - 1 3/4"[45], LEVER 1 3/8"[35] - 2"[51]

FACEPLATE: SQUARE 1"[25] WIDTH

BACKSET: 2 3/8"[60]

DIMENSIONS IN [] ARE IN MILLIMETERS
