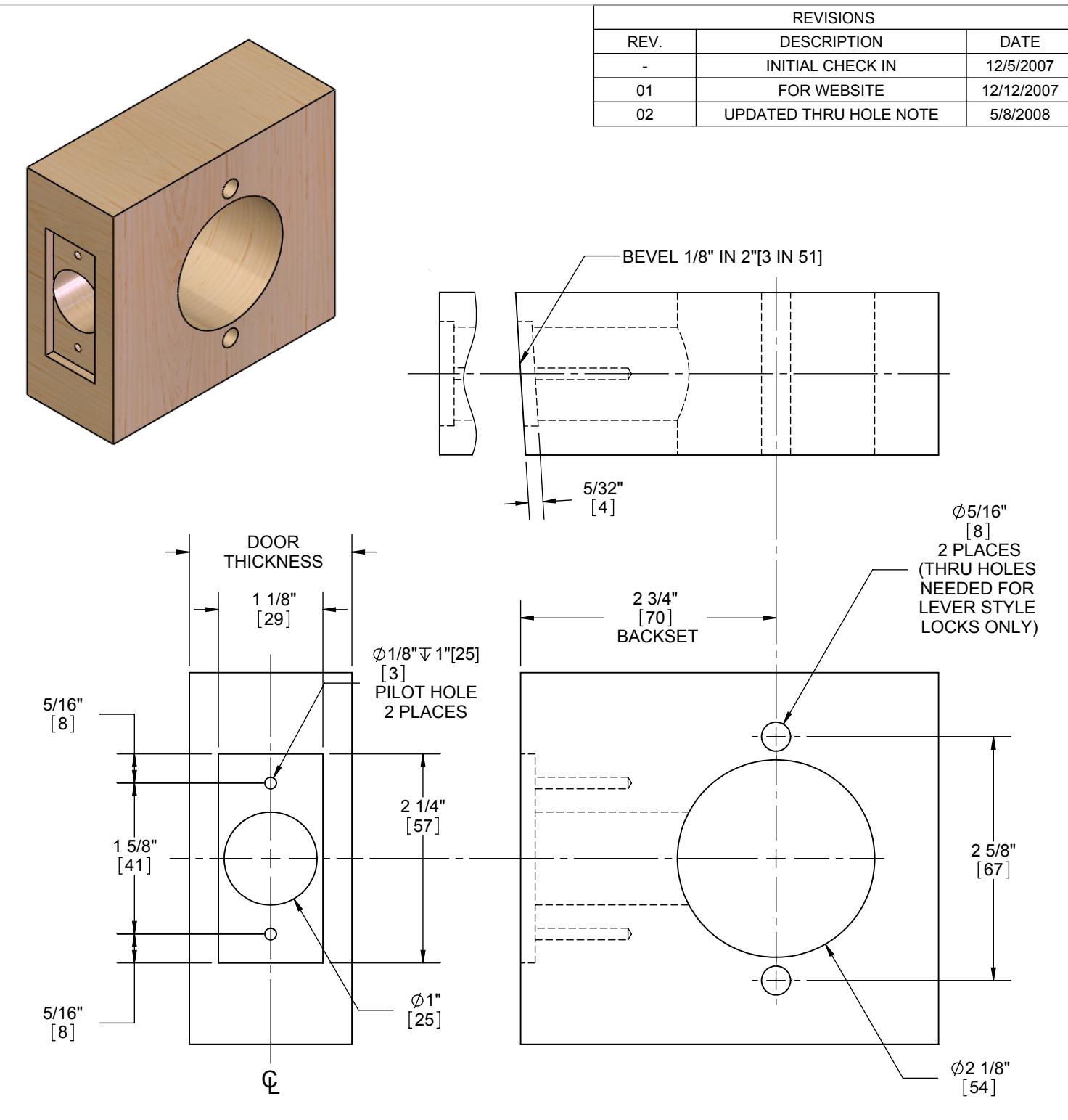

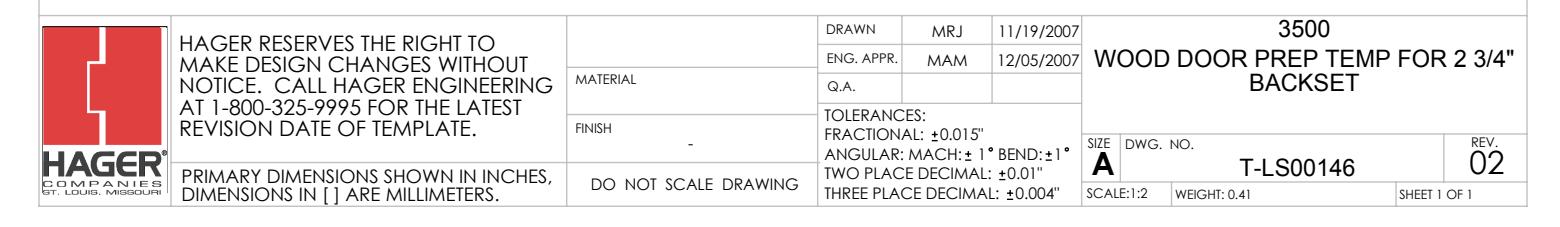

3500 Series Wood Door Template 2-3-4in BS – T-LS00146-Rev02

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: KNOBS 1 3/8"[35] - 1 3/4"[45], LEVERS 1 3/8"[35] - 2"[51]

FACEPLATE : SQUARE 1 1/8"[29] WIDTH BACKSETS : 2 3/4"[70], 5"[127] OPTIONAL

DIMENSIONS IN [] ARE IN MILLIMETERS
