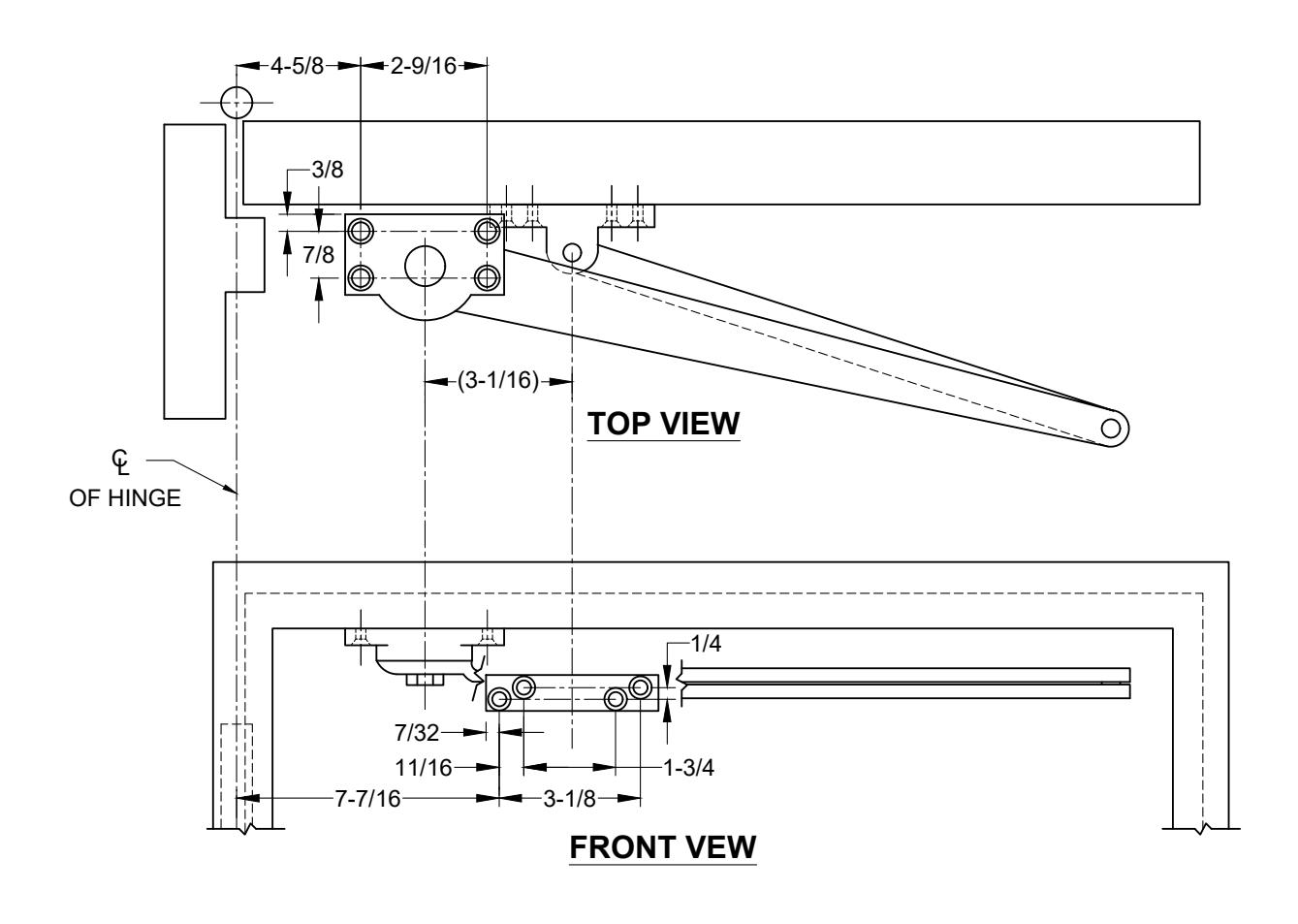

View PDF3500 SERIES HOLDERS & STOPS - HANDED
FOR SINGLE ACTING 24" TO 36" DOORS - 135° TO 180° PUSH SIDE MOUNT ONLY
| SCREW DETAIL | |||
|---|---|---|---|
| QTY | WOOD | METAL | |
| JAMB |
#14 x 1-1/2" PHILLIPS
FLAT WOOD SCREW |
1/4-20 x 3/4"PHILLIPS
FLAT MACHINE SCREW |
|
| DOOR | 4 |
#12 x 1-1/2" PHILLIPS
FLAT WOOD SCREW |
12-24 x 3/4" PHILLIPS
FLAT MACHINE SCREW |
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
3500-06.DWG
3500 PAGE 1 OF 1
REVISED 5-18-22
