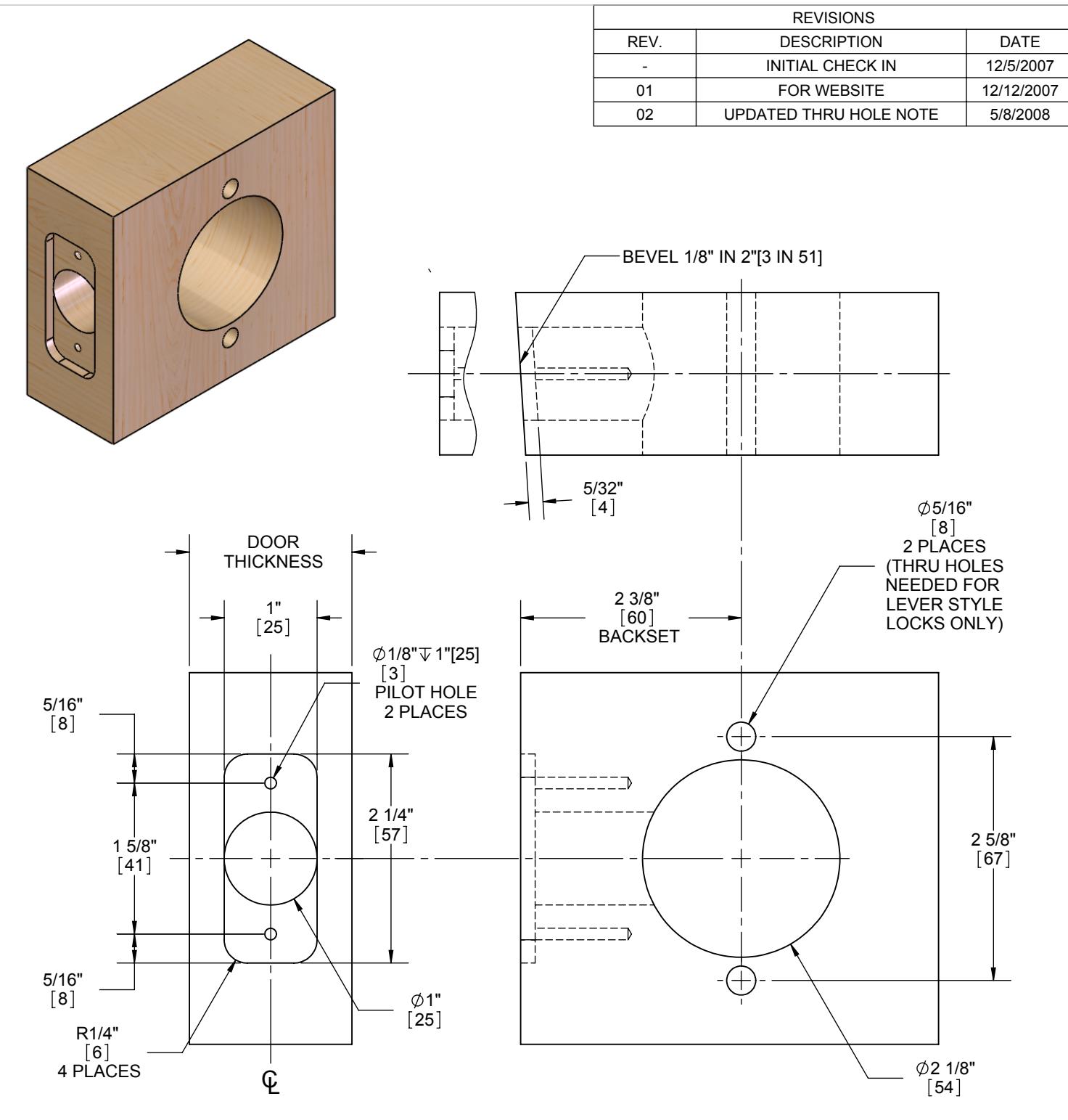

3500 Series RC Wood Door Template 2-3-8in BS – T-LS00153-Rev02

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: KNOB 1 3/8"[35] - 1 3/4"[45], LEVER 1 3/8"[35] - 2"[51]

FACEPLATE : 1/4"R, 1"[25] WIDTH

BACKSET: 2 3/8"[60]

DIMENSIONS IN [] ARE IN MILLIMETERS
