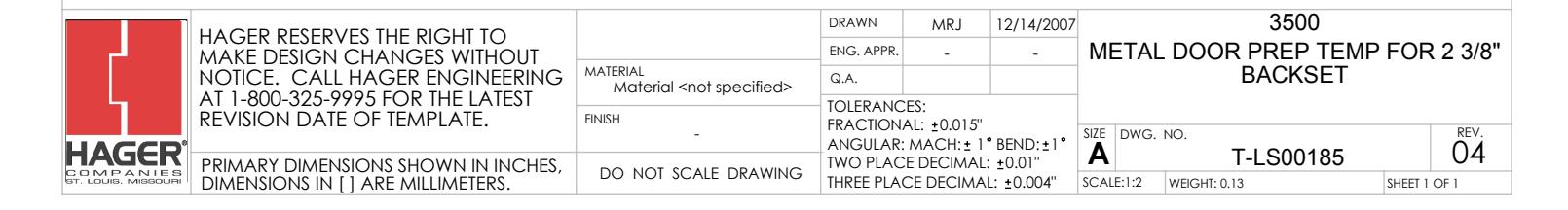

3500 Series Metal Door Template 2-3-8in BS – T-LS00185-Rev04
Open the original PDF document
View PDF

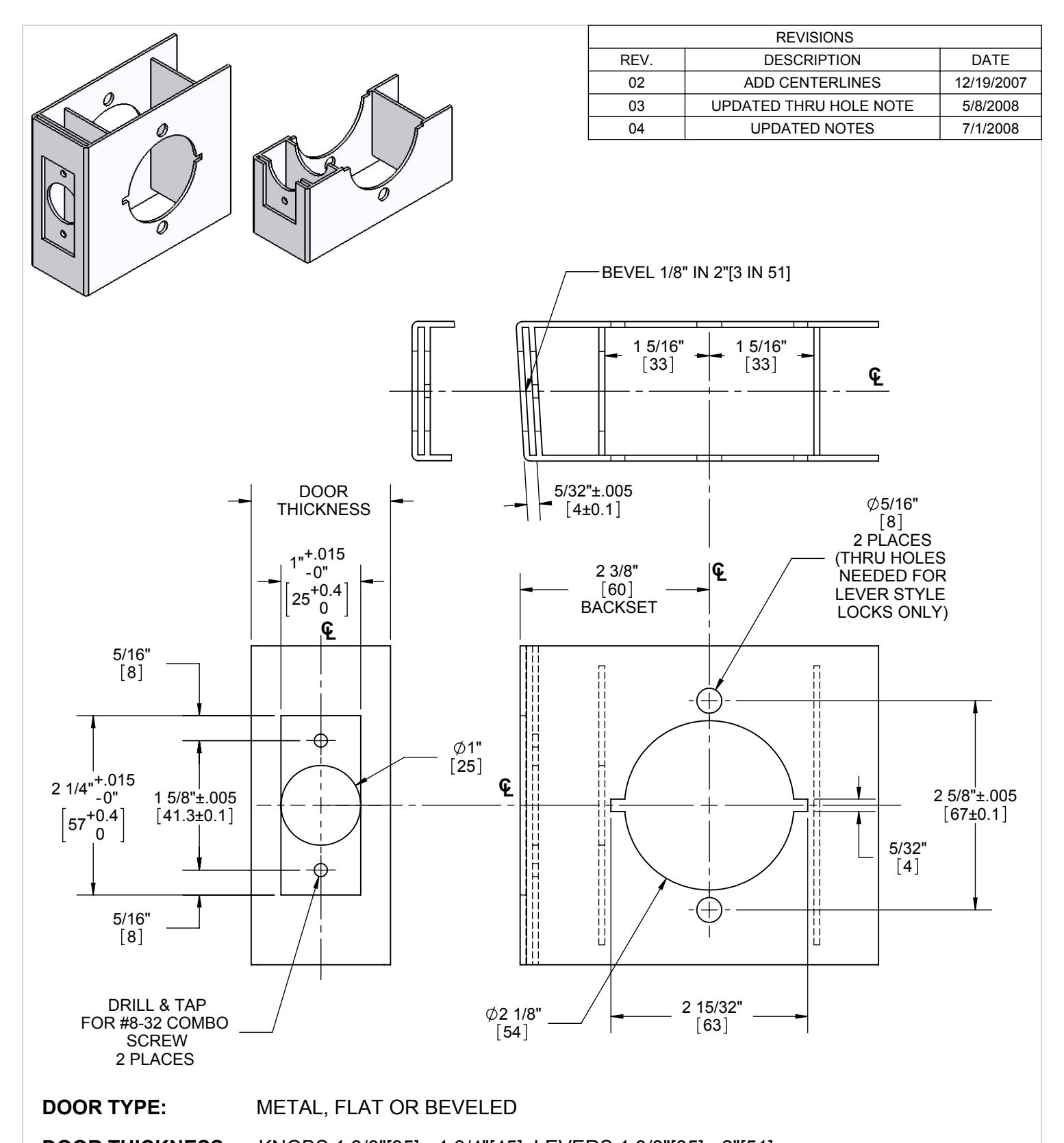

DOOR THICKNESS: KNOBS 1 3/8"[35] - 1 3/4"[45], LEVERS 1 3/8"[35] - 2"[51]
FACEPLATE: SQUARE 1"[25] WIDTH
BACKSETS : 2 3/8"[60]
Open the original PDF document
View PDF
DOOR THICKNESS: KNOBS 1 3/8"[35] - 1 3/4"[45], LEVERS 1 3/8"[35] - 2"[51]
FACEPLATE: SQUARE 1"[25] WIDTH
BACKSETS : 2 3/8"[60]
