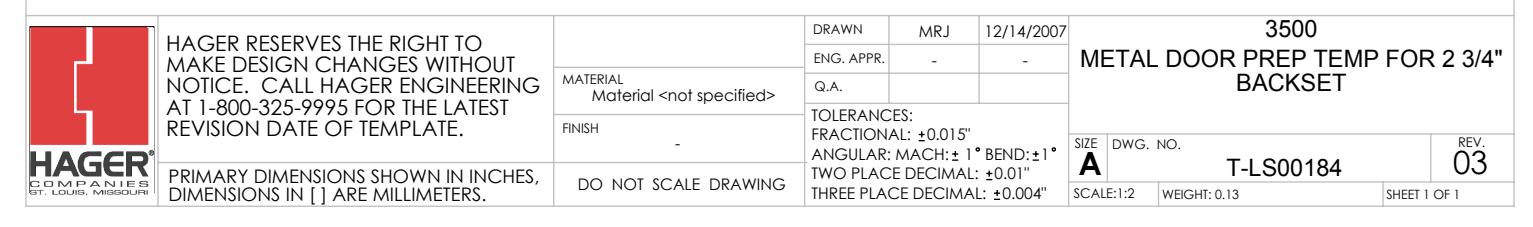

3500 Series Metal Door Template 2-3-4in BS – T-LS00184-Rev03

Open the original PDF document

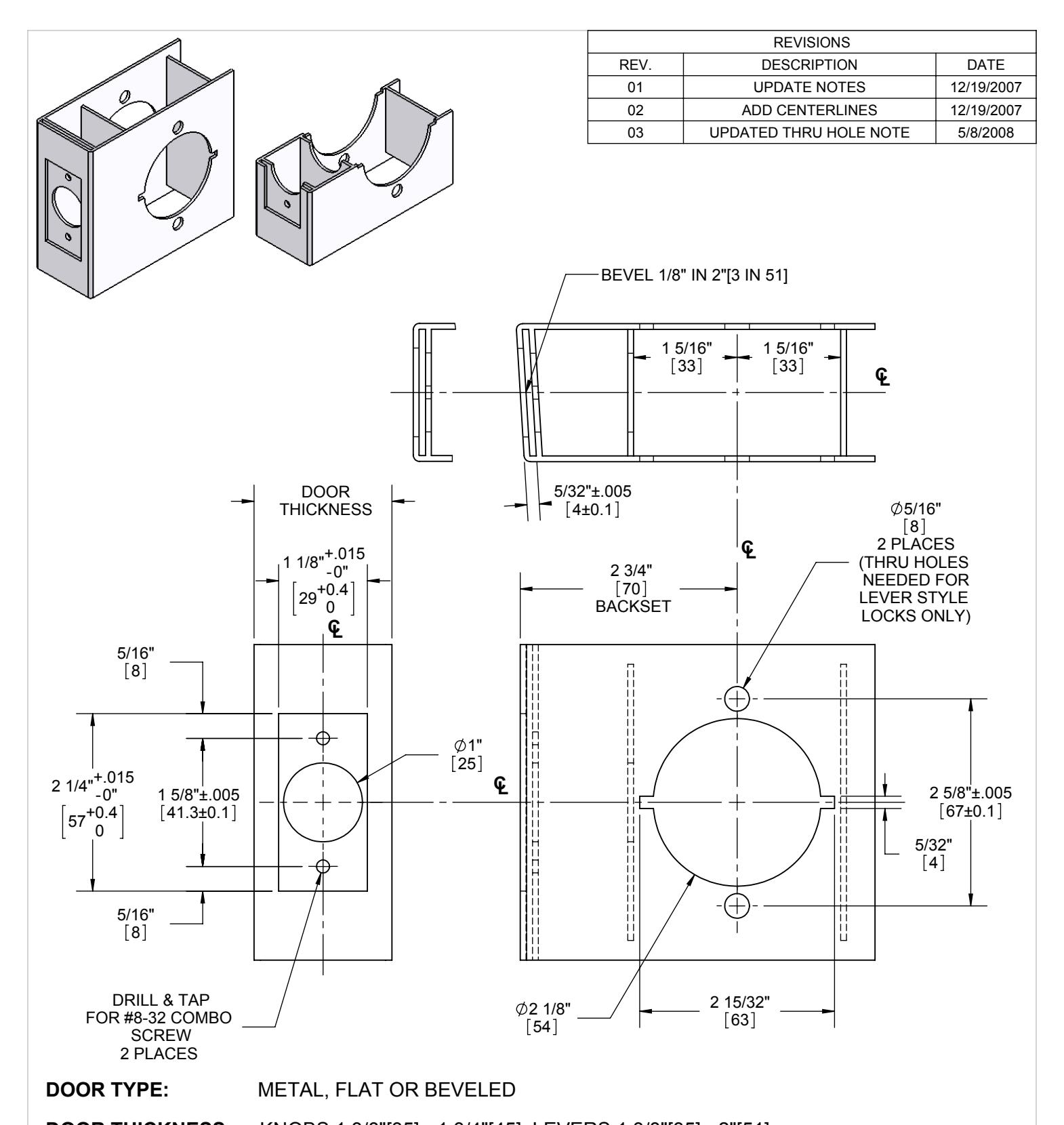

DOOR THICKNESS: KNOBS 1 3/8"[35] - 1 3/4"[45], LEVERS 1 3/8"[35] - 2"[51]

FACEPLATE: SQUARE 1 1/8"[29] WIDTH

BACKSETS: 2 3/4"[70], 5"[127] OPTIONAL

DIMENSIONS IN [] ARE IN MILLIMETERS
