3500 Series – Cut Sheet

Overhead Holders & Stops

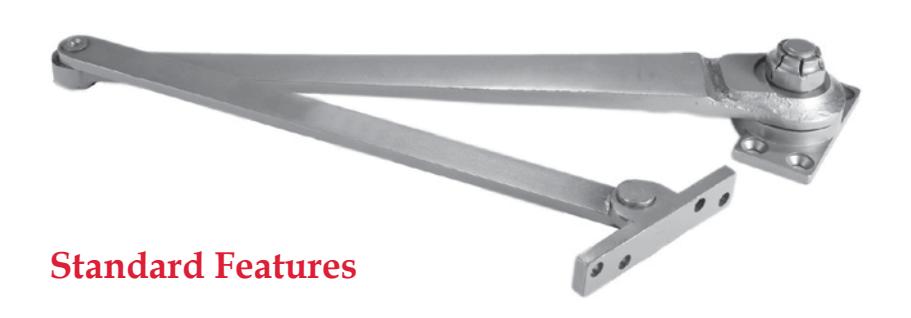

3500 Series Surface Mount, Parallel Arm Holder

• Surface mount
• Heavy duty
• Adjustable hold-open position from 135° to 180°
• Single acting doors only
• For use on the inactive leaf of a pair of doors where a door closer is installed on the active leaf
• weight doors
• For door openings 24"– 36"
• Units are handed specify when ordering
• Standard fasteners supplied for 1-¾" to 1-⅞" thick door (see options for other door thicknesses)
• Average weight per unit = 4 lbs.

Options Available
(see page B-5 for details)

• • THICK Fasteners for doors other than 1-¾" to 1-⅞" thick - Specify door thickness
• • SNB Sex bolts provided for door portion screw detail
• • SEC Security fasteners
• • LL For lead-lined door applications
• • SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
• If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

Material

• Aluminum die casting is the standard base material for arms and jamb bracket for all

Specify When Ordering • Model Number

• Handing
• Finish
• Option(s), if applicable

Door Frame Opening	Model Number
Butts or Offset Pivots	Hold Open
24" - 36"	3500
