| 350 SINGLE SPECIFICATIONS | ||||
|---|---|---|---|---|
| Holding Power 1200 Lbs. | ||||
| Input Voltage | Dual 12/24 VDC | |||
| Current | 309mA @ 24VDC / 560mA @ 12VDC | |||
|
Magnetic
Bond Sensor |
1-SPDT output
250mA max. @ 12/24VDC |
|||
|
Door
Status Sensor |
1-SPDT output
250mA max. @ 12/24VDC |
|||
| LED Indicator | Green-Secure, Red-Unsecure | |||
| Dimensions |
12-1/ 2"L x 2-1/8H x 1-11/16W
(318 x 54 x 43mm) |
|||
| Holding Power 1200 Lbs. per door leaf | ||||
|---|---|---|---|---|
| Input Voltage | Dual 12/24 VDC | |||
| Current | 618mA @ 24VDC / 1120mA @ 12VDC | |||
| 2 Magnetic | SPDT outputs | |||
| Bond Sensors | 250mA max. @ 12/24VDC | |||
| 2 Door | SPDT outputs | |||
| Status Sensors | 250mA max. @ 12/24VDC | |||
| 2 LED Indicators | Green-Secure, Red-Unsecure | |||
| Dimensions | 25"L x 2-1/8H x 1-11/16W | |||
| Dilliensions | (635 x 54 x 43mm) | |||
| MODEL | DESCRIPTION | LIST |
|---|---|---|

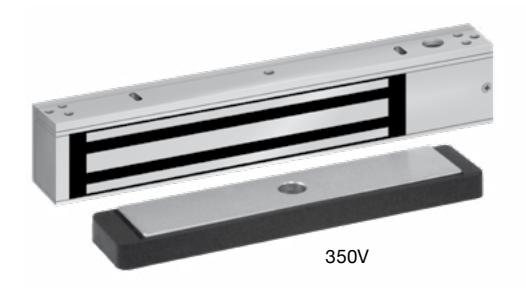

| 350V | Single Narrow Line Magnetic Lock, 628 Aluminum, specify 2 for pair of doors with mullion, Retrofits Locknetics MagForce 350+ & 350+/DSM/MBS/L1 | 417.00 |
| 352 V | Double Narrow Line Magnetic Lock, 628 Aluminum, for pair of doors without mullion, Retrofits Locknetics MagForce 352+ & 352+/DSM/MBS/L2 | 833.00 |
| Top Jamb Mounting Kit Discount |
Distributor
Discount Code |
GK LIST | |
|---|---|---|---|
| TJ350 | Single | 145.00 | |
| TJ352 | Double | 256.00 | |
Distributor Discount Code GK LIST Glass Door Mounting Kit
Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
| HDB350 Single | 200.00 | HDB352 Double, 2 single kits | 400.00 |
